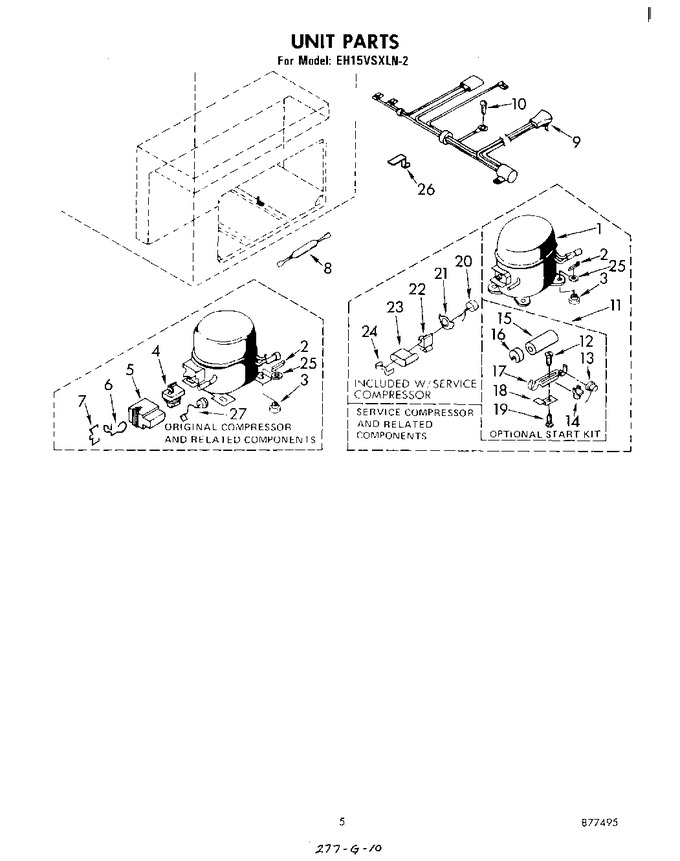

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	702215		Compressor (service Replacement) (items No. 20, 21, 22, 23 & 24 Included With Service Compressor) (a		Appelez-nous	-
2	596514		Clip, Compressor Mounting (4)		Appelez-nous	-
3	876811		Grommet, Compressor Mounting (4)   (Replaces: 592185)				$ 7.01
4	753316		Relay (used W/original Compressor)		Appelez-nous	-
5	727044		Cover, Relay & Overload Assembly (used W/original Compressor)		Appelez-nous	-
6	727046		Clip (used W/original Compressor)		Appelez-nous	-
7	727045		Clamp (used W/original Compressor)		Appelez-nous	-
8	W10843121		Drier   (Replaces: 727137)			Immediately	$ 51.42
9	586612		Harness, Wiring		Appelez-nous	-
10	595325		Screw, 8-32 X 5/8		Appelez-nous	-
11	482278		Start Kit (used W/service Compressor 702215)		Appelez-nous	-
12	487631		Screw (2) (used On Start Kit 482278)		Appelez-nous	-
13	482280		Overload (used On Start Kit 482278)		Appelez-nous	-
14	482279		Relay (used On Start Kit 482278)		Appelez-nous	-
15	WP482156		Capacitor (used On Start Kit 482278) (189-227mfd)   (Replaces: 482156)				$ 102.00
16	482157		Cap, Capacitor (used On Start Kit 482278)		Appelez-nous	-
17	482158		Support, Bracket (used On Start Kit 482278)		Appelez-nous	-
18	549939		Bracket, Mounting (used On Start Kit 482278)		Appelez-nous	-
19	488487		Screw (used On Start Kit 482278)		Appelez-nous	-
20	753342		Overload (used On Service Compressor 702215)		Appelez-nous	-
21	560851		Spring, Overload (used On Service Compressor 702215)		Appelez-nous	-
22	989647		Relay (used On Service Compressor 702215)		Appelez-nous	-
23	560849		Cover, Terminal (used On Service Compressor 702215)		Appelez-nous	-
24	560850		Strap, Cover (used On Service Compressor 702215)		Appelez-nous	-
25	680975		Washer, Compressor Mounting (4)		Appelez-nous	-
26	653035		Clip, Holding		Appelez-nous	-
27	753317		Overload		Appelez-nous	-
