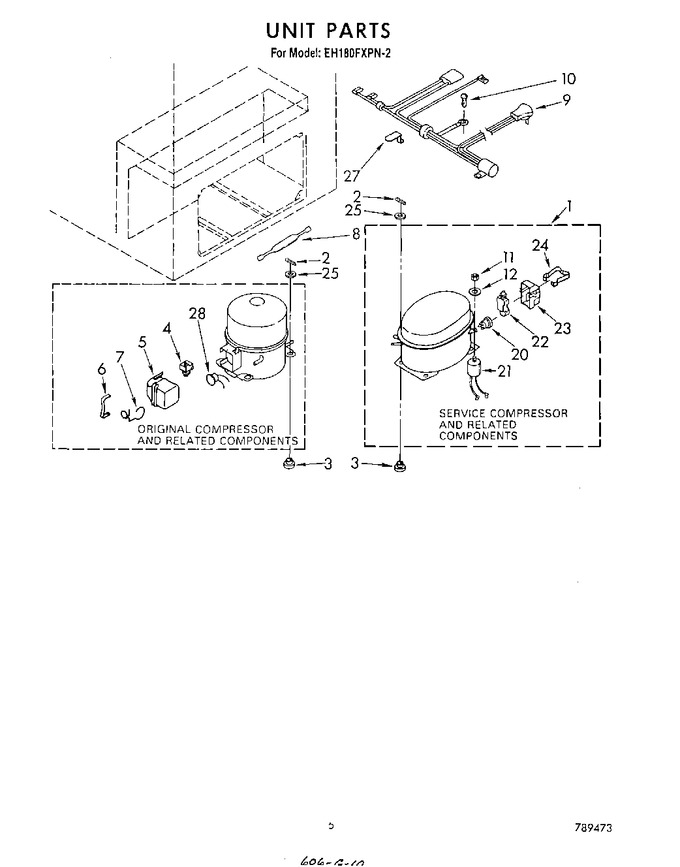

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Section
02 - Section
03 - Section
04 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 482981 | Compressor (service Replacement) (includes Items 11, 12, 20, 21 22, 23, & 24) (also Order 482331) |
|
- | |||||
| 2 | 596798 | Clip, Compressor Mounting (4) |
|
- | |||||
| 3 | 876811 | Grommet, Compressor Mounting (4) (Replaces: 592185) |
|
$ 7.01 | |||||
| 4 | 753504 | Relay, Starting (used W/original Compressor) |
|
- | |||||
| 5 | 727044 | Cover, Relay & Overload Assembly (used W/original Compressor) |
|
- | |||||
| 6 | 727045 | Strap, Relay & Overload Cover (used W/original Compressor) |
|
- | |||||
| 7 | 727046 | Clip (used W/original Compressor) |
|
- | |||||
| 8 | 728583 | Drier |
|
- | |||||
| 9 | 730032 | Harness, Wiring |
|
- | |||||
| 10 | 595325 | Screw, 8-32 X 5/8 |
|
- | |||||
| 11 | 489142 | Nut (used W/service Compressor 482981) |
|
- | |||||
| 12 | 489143 | Washer (used W/service Compressor 482981) |
|
- | |||||
| 20 | 1105077 | Overload (used On Service Compressor 482981) |
|
- | |||||
| 21 | 482996 | Capacitor (used On Service Compressor 482981) |
|
- | |||||
| 22 | 1100806 | Relay (used W/service Compressor) |
|
- | |||||
| 23 | 1105015 | Cover, Terminal (used On Service Compressor) |
|
- | |||||
| 24 | 938384 | Strap, Cover (used On Service Compressor 482981) |
|
- | |||||
| 25 | 680975 | Washer, Compressor Mounting (4) |
|
- | |||||
| 27 | 653035 | Clip |
|
- | |||||
| 28 | 753505 | Overload (used W/original Compressor) |
|
- |
