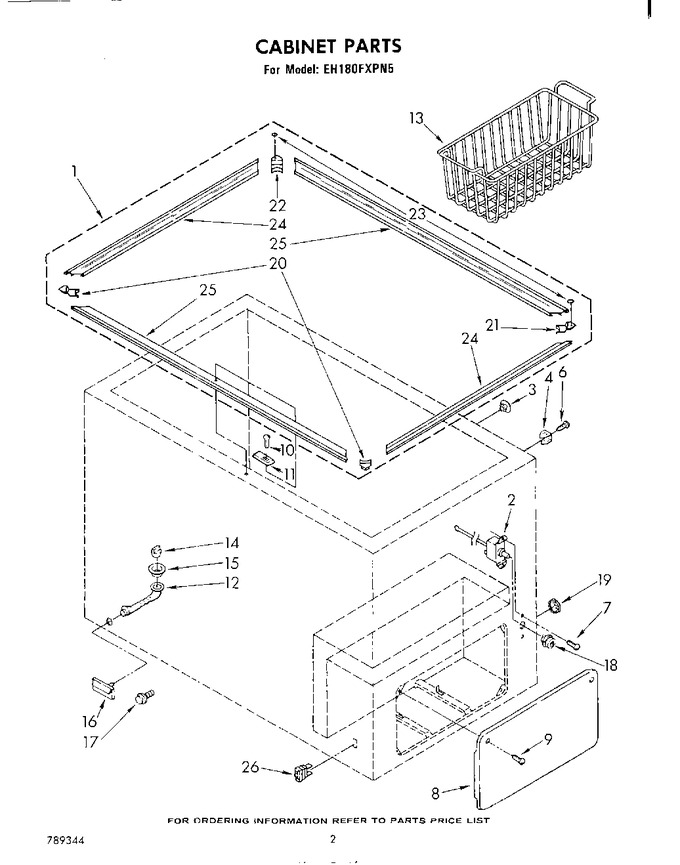

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 702456 | Collar Kit (items 20, 21, 22, 23, 24 & 25 Are Included In Collar Kit) |
|
- | |||||
| 2 | 728369 | Control, Cold |
|
- | |||||
| 3 | 482584 | Plug Button (2) |
|
- | |||||
| 4 | 556013 | Rod Holder Assembly (2) |
|
- | |||||
| 6 | 681646 | Screw (2) |
|
- | |||||
| 7 | 595022 | Screw |
|
- | |||||
| 8 | 753077 | Door |
|
- | |||||
| 9 | 681318 | Screw |
|
- | |||||
| 10 | 681362 | Screw |
|
- | |||||
| 11 | 556612 | Box, Strike |
|
- | |||||
| 12 | 556624 | Tube, Drain |
|
- | |||||
| 13 | 730212 | Basket |
|
- | |||||
| 14 | 576342 | Plug, Drain |
|
- | |||||
| 15 | 576343 | Ferrule, Drain |
|
- | |||||
| 16 | 753073 | Cover, Drain |
|
- | |||||
| 17 | 596259 | Adapter, Hose |
|
- | |||||
| 18 | 727020 | Knob, Control |
|
- | |||||
| 19 | 681494 | Plug, Button |
|
- | |||||
| 20 | 728585 | Corner, Front (2) |
|
- | |||||
| 21 | 00702459 | Corner (right Rear) (Replaces: 702459) |
|
$ 405.38 | |||||
| 22 | 00702460 | Corner (left Rear) (Replaces: 702460) |
|
$ 677.02 | |||||
| 23 | 728362 | Grommet (2) |
|
- | |||||
| 24 | 728412 | Collar, End (2) |
|
- | |||||
| 25 | 728415 | Collar (2) (front & Rear) |
|
- | |||||
| 26 | LIT789344 | (12 Oz. Spray Can) (list, Parts) |
|
- | |||||
| 26 | WP978025 | (12 Oz. Spray Can) (access Valve (1/4``)) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| 26 | WP503695 | (12 Oz. Spray Can) (cork Sealer (1/4 Pound)) (Replaces: 503695) |
|
$ 111.46 | |||||
| 26 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.93 | |||||
| 26 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 26 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 26 | 350956 | (12 Oz. Spray Can) (enamel, Almond (13 Oz. Spray Can)) |
|
$ 48.61 | |||||
| 26 | WP279368 | (12 Oz. Spray Can) (cement, Insulation (1 Oz.)) (Replaces: 797403) |
|
Immediately | $ 104.81 | ||||
| 26 | LIT728786 | (12 Oz. Spray Can) (tech Sheet) |
|
- | |||||
| 26 | LIT656493 | (12 Oz. Spray Can) (book, How To Freeze) |
|
- | |||||
| 26 | LIT730051 | (12 Oz. Spray Can) (guide, Use & Care) |
|
- | |||||
| 26 | LIT730096 | (12 Oz. Spray Can) (energy Guide) |
|
- | |||||
| 26 | WP505587 | (12 Oz. Spray Can) (sealer, Mastic (1 Qt.)) (Replaces: 505587) |
|
Immediately | $ 164.39 | ||||
| 26 | 556230 | Light, Indicator |
|
- | |||||
| 26 | 206925 | (12 Oz. Spray Can) (leveler, Enamel (12 Oz. Spray Can)) |
|
- | |||||
| 26 | 285006 | (12 Oz. Spray Can) (enamel, Black (12 Oz. Spray Can)) (Replaces: 799339) |
|
$ 53.90 | |||||
| 26 | 350930 | (12 Oz. Spray Can) (enamel, White (12 Oz. Spray Can)) (Replaces: 799343) |
|
Immediately | $ 36.11 | ||||
| 26 | 799340 | (12 Oz. Spray Can) (enamel, Black (1 Qt. Uncut)) |
|
- | |||||
| 26 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 26 | 978883 | (12 Oz. Spray Can) (enamel, Almond (1 Qt. Uncut)) |
|
- | |||||
| 26 | 978026 | (12 Oz. Spray Can) (access Valve (5/16``)) |
|
Immediately | $ 121.04 | ||||
| 26 | SF5538 | (12 Oz. Spray Can) (access Valve (3/8``)) (Replaces: 978027) |
|
$ 16.79 | |||||
| 26 | 978028 | (12 Oz. Spray Can) (access Valve (1/2``)) |
|
- | |||||
| 26 | 978029 | (12 Oz. Spray Can) (access Valve (5/8``)) |
|
$ 93.85 | |||||
| 26 | 978030 | (12 Oz. Spray Can) (access Valve (3/4``)) |
|
$ 123.53 | |||||
| 26 | 212643 | (12 Oz. Spray Can) (sealer, Gum (22 Pcs. 3/16`` X 7``)) |
|
Immediately | $ 86.78 | ||||
| 26 | 876370 | (12 Oz. Spray Can) (kit, Insulation) (Replaces: 479976) |
|
$ 218.83 | |||||
| 26 | WP279368 | (12 Oz. Spray Can) (cement, Vinyl (1 Pt.)) (Replaces: 576269) |
|
Immediately | $ 104.81 |
