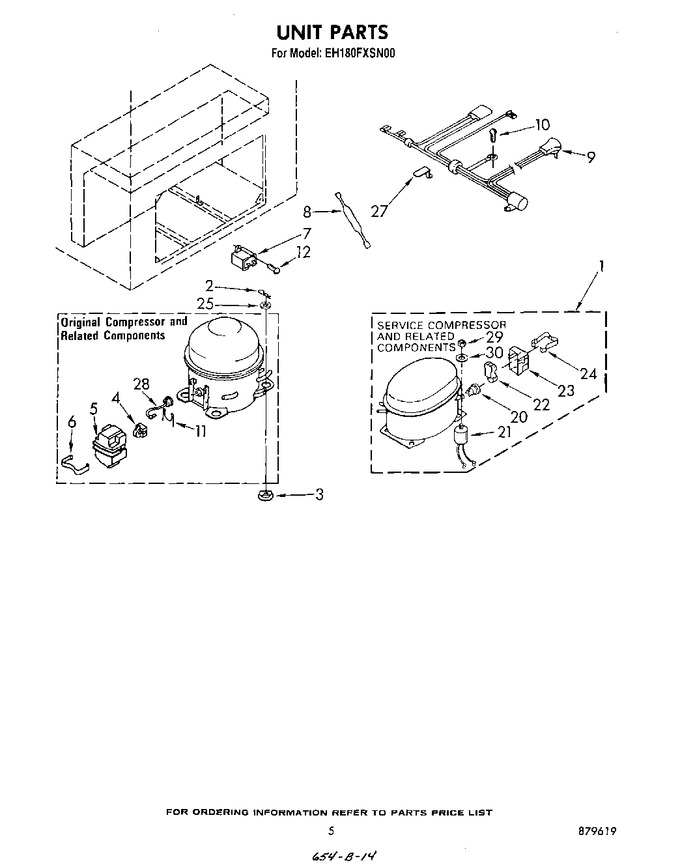

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	482981		Compressor (includes Items 20, 21, 22, 23, 24, 29 & 30) (service Replacement) (also Order 482331 Ins		Appelez-nous	-
2	596798		Clip, Compressor Mounting (4)		Appelez-nous	-
3	876811		Grommet, Compressor Mounting (4)   (Replaces: 592185)				$ 7.01
4	945507		Relay, Starting (used W/original Compressor)		Appelez-nous	-
5	1105055		Cover, Terminal (used W/original Compressor)		Appelez-nous	-
6	943322		Strap, Relay & Overload Cover (used W/original Compressor)		Appelez-nous	-
7	WPW10662129		Capacitor   (Replaces: 1114291)			Immediately	$ 52.97
8	728583		Drier		Appelez-nous	-
9	1114255		Harness, Wiring		Appelez-nous	-
10	595325		Screw, 8-32 X 5/8		Appelez-nous	-
11	943320		Overload Spring		Appelez-nous	-
12	W11693756		Screw   (Replaces: 681661)			Immediately	$ 13.28
20	1105077		Overload (used On Service Compressor 482981)		Appelez-nous	-
21	482996		Capacitor (used On Service Compressor 482981)		Appelez-nous	-
22	1100806		Relay (used W/service Compressor)		Appelez-nous	-
23	1105015		Cover, Terminal (used On Service Compressor)		Appelez-nous	-
24	938384		Strap, Cover (used On Service Compressor)		Appelez-nous	-
25	680975		Washer, Compressor Mounting (4)		Appelez-nous	-
27	653035		Clip		Appelez-nous	-
28	945586		Overload (used W/original Compressor)		Appelez-nous	-
29	489142		Nut		Appelez-nous	-
30	489143		Washer		Appelez-nous	-
