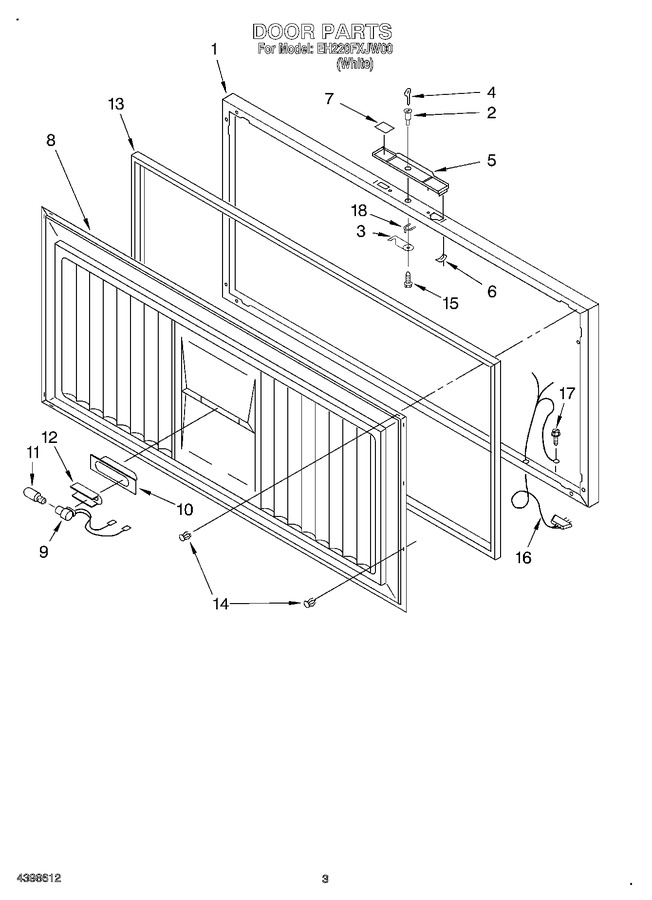

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Section
02 - Section
03 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4390903 | Exterior Door Panel (Replaces: 4356639) |
|
$ 468.48 | |||||
| 2 | 3-35284-001 | Lock Kit (Replaces: 4356759) |
|
$ 25.64 | |||||
| 3 | 2-35195-002 | Hook Bolt, Lock (Replaces: 4356608) |
|
$ 59.95 | |||||
| 4 | 4356304 | Key |
|
- | |||||
| 5 | 4356702 | Handle |
|
- | |||||
| 6 | 4356306 | Clip, Oblong |
|
$ 7.36 | |||||
| 7 | 4356453 | Signal Light |
|
- | |||||
| 8 | 4390658 | Interior Door Panel |
|
- | |||||
| 9 | 4356772 | Lamp Socket |
|
- | |||||
| 10 | 3-25693-001 | Reflector, Light (Replaces: 4356500) |
|
$ 16.13 | |||||
| 11 | W10873798 | Bulb, Light (Replaces: 4356311) |
|
Immediately | $ 13.16 | ||||
| 12 | 4356704 | Heat Shield |
|
$ 11.85 | |||||
| 13 | 4-35260-006 | Gasket (Replaces: 4356697) |
|
Immediately | $ 306.50 | ||||
| 14 | 4356317 | Clip, Gasket |
|
- | |||||
| 15 | W11233072 | Screw (Replaces: 4356609) |
|
Immediately | $ 13.25 | ||||
| 16 | W10620417 | Wiring Harness, Internal (Replaces: 4356768) |
|
$ 126.36 | |||||
| 17 | WP488787 | Screw (Replaces: 488787) |
|
$ 10.13 | |||||
| 18 | 4356493 | Clip, Spring |
|
- |
