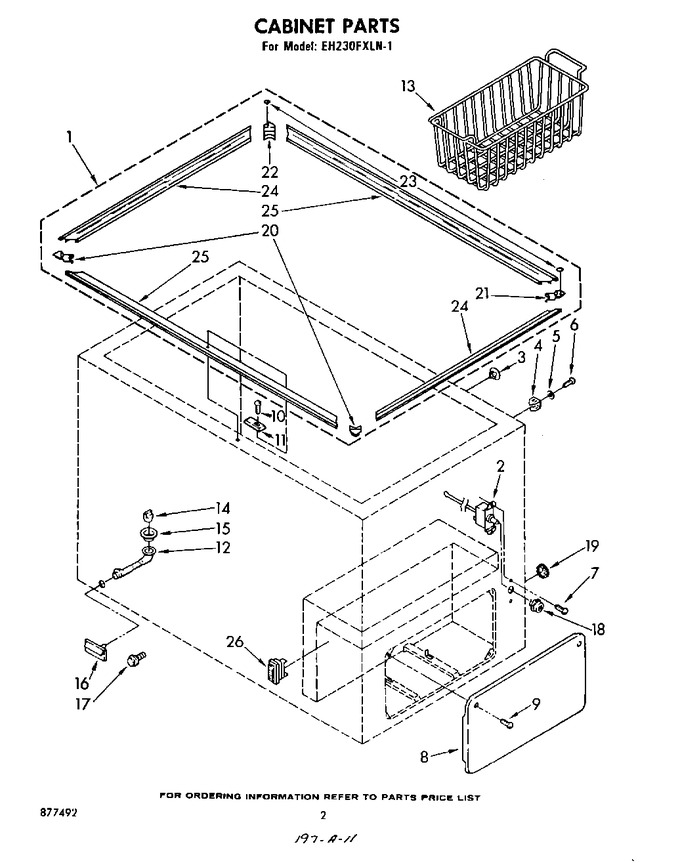

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 702457 | Collar Kit (items 20, 21, 22 23, 24 & 25 Are Included In Collar Kit) |
|
- | |||||
| 2 | 728369 | Control, Cold |
|
- | |||||
| 3 | 482584 | Plug Button (2) |
|
- | |||||
| 4 | 556013 | Rod Holder Assembly (2) |
|
- | |||||
| 5 | 680661 | Washer (2) |
|
- | |||||
| 6 | 681646 | Screw (2) |
|
- | |||||
| 7 | 595022 | Screw |
|
- | |||||
| 8 | 753077 | Door |
|
- | |||||
| 9 | 681318 | Screw |
|
- | |||||
| 10 | 681362 | Screw |
|
- | |||||
| 11 | 556612 | Box, Strike |
|
- | |||||
| 12 | 556624 | Tube, Drain |
|
- | |||||
| 13 | 753696 | Basket (3) |
|
- | |||||
| 14 | 576342 | Plug, Drain |
|
- | |||||
| 15 | 576343 | Ferrule, Drain |
|
- | |||||
| 16 | 753073 | Cover, Drain |
|
- | |||||
| 17 | 596259 | Adapter, Hose |
|
- | |||||
| 18 | 727020 | Knob, Control |
|
- | |||||
| 19 | 681494 | Plug, Button |
|
- | |||||
| 20 | 728392 | Corner, Front (2) |
|
- | |||||
| 21 | 00702459 | Corner (right Rear) (Replaces: 702459) |
|
$ 405.38 | |||||
| 22 | 00702460 | Corner (left Rear) (Replaces: 702460) |
|
$ 677.02 | |||||
| 23 | 728362 | Grommet (2) |
|
- | |||||
| 24 | 728412 | Collar, End (2) |
|
- | |||||
| 25 | 728416 | Collar (2) (front & Rear) |
|
- | |||||
| 26 | 877492 | List, Parts |
|
- | |||||
| 26 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 111.46 | |||||
| 26 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.93 | |||||
| 26 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 26 | 515393 | Transformer, Stepdown (230-115 Volt) |
|
- | |||||
| 26 | 833938 | Kit, Terminal Connector |
|
$ 7.62 | |||||
| 26 | 728130 | Guide, Use & Care |
|
- | |||||
| 26 | 656493 | Book, Freezing |
|
- | |||||
| 26 | 753916 | Energy Guide |
|
- | |||||
| 26 | 728380 | Tech Sheet |
|
- | |||||
| 26 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 164.39 | ||||
| 26 | 556230 | Light, Indicator |
|
- | |||||
| 26 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 26 | 799351 | Blend, Thinner (1 Gal.) |
|
- | |||||
| 26 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 26 | 702171 | Kit, Precooler (1 Required) |
|
- | |||||
| 26 | 702200 | Kit, Condenser (1 Required) |
|
- | |||||
| 26 | 212643 | Sealer, Gum (22 Pcs. 3/16`` X 7``) |
|
Immediately | $ 86.78 | ||||
| 26 | 978650 | Kit, Insulation (door Only) |
|
- | |||||
| 26 | WP279368 | Cement, Insulation (1 Oz.) (Replaces: 797403) |
|
Immediately | $ 104.81 | ||||
| 350930 | Xenamel, White (12 Oz. Spray Can) (Replaces: 799343) |
|
Immediately | $ 36.11 | |||||
| 350942 | Xprimer, White (12 Oz. Spray Can) (Replaces: 206922) |
|
$ 84.73 | ||||||
| 206925 | Xleveler, Enamel (12 Oz. Spray Can) |
|
- | ||||||
| 350956 | Xenamel, Almond (13 Oz. Spray Can) |
|
$ 48.61 |
