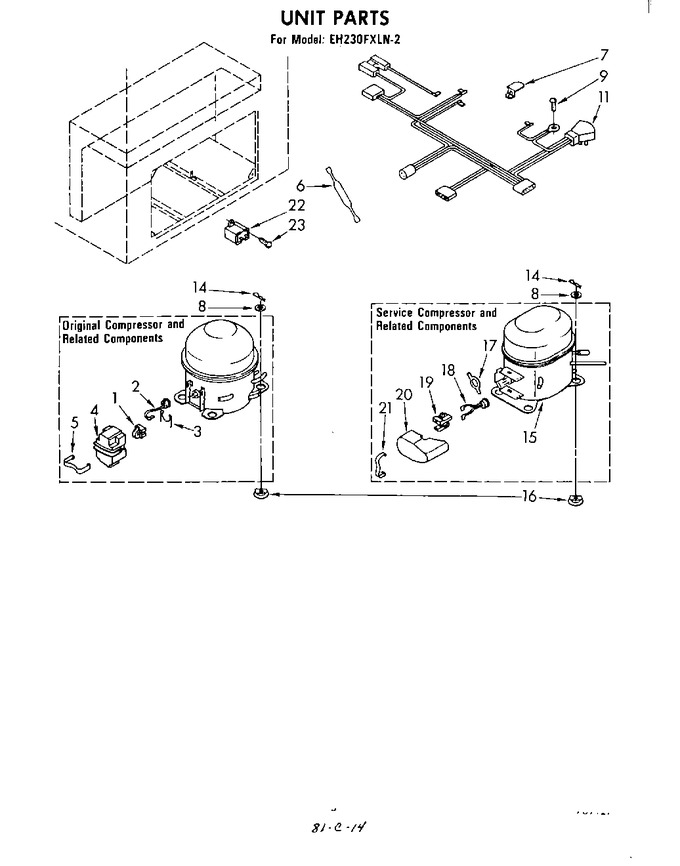

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	945507		Relay (used W/original Compressor)		Appelez-nous	-
2	728778		Overload (used W/original Compressor)		Appelez-nous	-
3	943320		Spring, Overload (used W/original Compressor)		Appelez-nous	-
4	943321		Cover, Terminal (used W/original Compressor)		Appelez-nous	-
5	943322		Strap, Cover (used W/original Compressor)		Appelez-nous	-
6	W10843121		Drier   (Replaces: 727137)			Immediately	$ 51.42
7	653035		Clip		Appelez-nous	-
8	680975		Washer		Appelez-nous	-
9	595325		Screw, 8-32 X 5/8		Appelez-nous	-
11	728684		Harness, Wiring		Appelez-nous	-
14	596514		Clip, Compressor Mounting (4)		Appelez-nous	-
15	876765		(also Order Installation Kit)   (Replaces: 482331)			Immediately	$ 81.59
15	482614		Compressor		Appelez-nous	-
16	876811		Grommet, Compressor Mounting (4)   (Replaces: 592185)				$ 7.01
17	549086		Spring, Overload (used W/service Compressor)		Appelez-nous	-
18	989518		Overload (used W/service Compressor)		Appelez-nous	-
19	989509		Relay (used W/ Service Compressor)		Appelez-nous	-
20	549505		Cover (used W/ Service Compressor)		Appelez-nous	-
21	549342		Strap (used W/service Compressor)		Appelez-nous	-
22	WPW10662129		Capacitor (run)   (Replaces: 945508)			Immediately	$ 52.97
23	978030		Access Valve (3/4``)				$ 123.53
23	W11693756		Screw   (Replaces: 681661)			Immediately	$ 13.28
23	978026		Access Valve (5/16``)			Immediately	$ 121.04
23	SF5538		Access Valve (3/8``)   (Replaces: 978027)				$ 16.79
23	978028		Access Valve (1/2``)		Appelez-nous	-
23	978029		Access Valve (5/8``)				$ 93.85
23	WP978025		Access Valve (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
