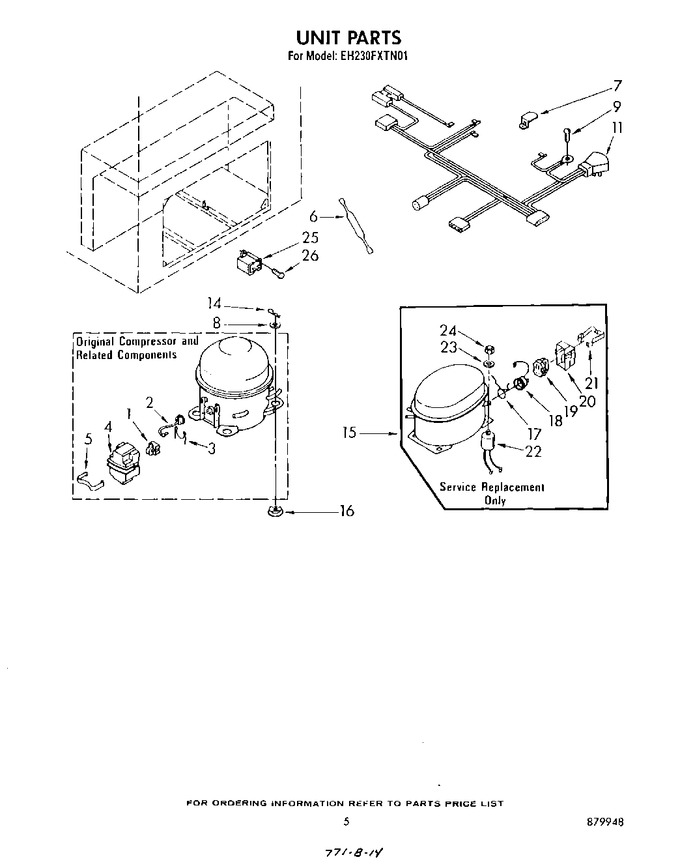

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1101014		Relay		Appelez-nous	-
2	1118590		Overload		Appelez-nous	-
3	943320		Spring, Overload		Appelez-nous	-
4	1105055		Cover, Terminal		Appelez-nous	-
5	943322		Strap, Cover		Appelez-nous	-
6	728583		Drier		Appelez-nous	-
7	653035		Clip		Appelez-nous	-
8	680975		Washer		Appelez-nous	-
9	595325		Screw, 8-32 X 5/8		Appelez-nous	-
11	728684		Harness, Wiring		Appelez-nous	-
14	596798		Clip, Compressor Mounting (4)		Appelez-nous	-
15	482982		Compressor (includes Items 17, 18, 19, 20, 21, 22, 23 & 24) (also Order 876765 Tube Kit)		Appelez-nous	-
16	876811		Grommet, Compressor Mounting (4)   (Replaces: 592185)				$ 7.01
17	1114190		Spring, Overload		Appelez-nous	-
18	483054		Overload		Appelez-nous	-
19	WP2262181		Relay   (Replaces: 1108143)				$ 115.90
20	1105015		Cover, Terminal		Appelez-nous	-
21	938384		Strap		Appelez-nous	-
22	482996		Capacitor		Appelez-nous	-
23	489143		Washer		Appelez-nous	-
24	489142		Nut		Appelez-nous	-
25	WPW10662129		Running, Capacitor   (Replaces: 1114291)			Immediately	$ 52.97
26	489050		Screw, 8-32 X 1/2				$ 623.30
