SELECT A DIAGRAM

01 - Section


02 - Section


03 - Section


04 - Section

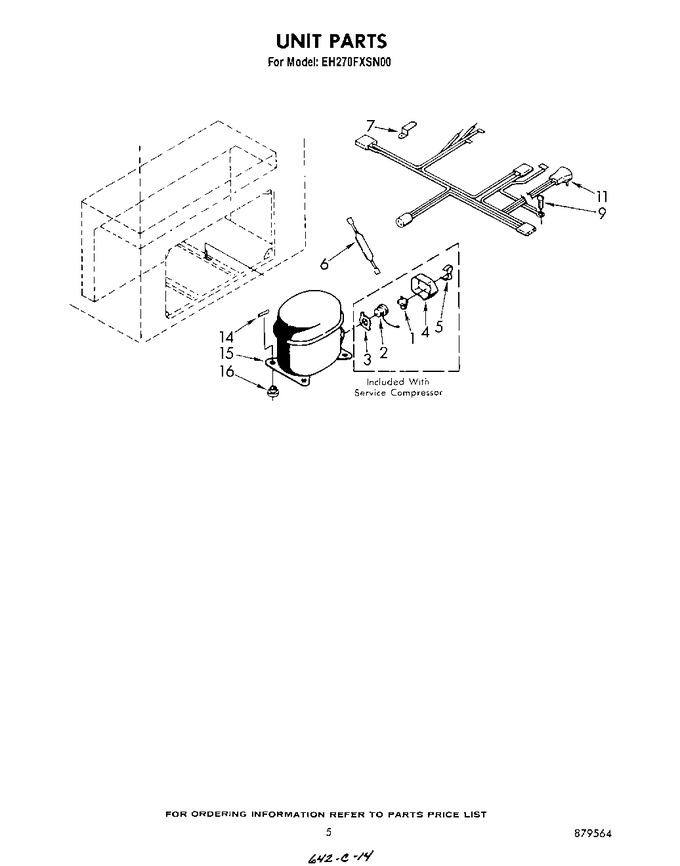

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	753525		Relay		Appelez-nous	-
2	753526		Overload		Appelez-nous	-
3	549086		Spring, Overload		Appelez-nous	-
4	549336		Cover, Terminal		Appelez-nous	-
5	549342		Strap, Cover		Appelez-nous	-
6	728583		Drier		Appelez-nous	-
7	653035		Clip		Appelez-nous	-
9	595325		Screw, 8-32 X 5/8		Appelez-nous	-
11	730032		Harness, Wiring		Appelez-nous	-
14	596798		Clip, Compressor Mounting (4)		Appelez-nous	-
15	482614		Compressor (also Includes Items 1, 2, 3, 4, & 5) (also Order 876765 Installation Kit)		Appelez-nous	-
16	876764		Valve, Access(3/16``)			Immediately	$ 86.33
16	978030		Access Valve				$ 123.53
16	WP978025		Access Valve (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
16	876811		Grommet, Compressor Mounting (4)   (Replaces: 592185)				$ 7.01
16	978026		Access Valve (5/16``)			Immediately	$ 121.04
16	SF5538		Access Valve (3/8``)   (Replaces: 978027)				$ 16.79
16	978028		Access Valve (1/2``)		Appelez-nous	-
16	978029		Access Valve (5/8``)				$ 93.85

    View Diagram in Separate Window       Print Part List
