SELECT A DIAGRAM

02 - Cabinet


03 - Breaker Trim And Liner


04 - Air Flow


05 - Dispenser Front


06 - Refrigerator Door


07 - Freezer Door


08 - Unit


09 - Freezer Interior

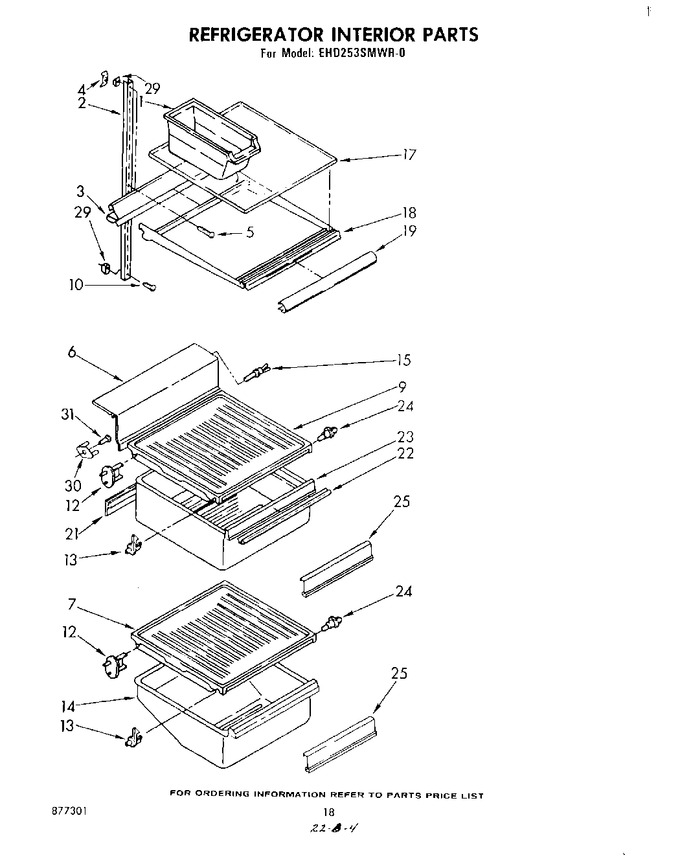

10 - Refrigerator Interior


11 - Air Flow And Control


12 - Ice Maker , Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP982704		Container   (Replaces: 935139)				$ 29.30
2	934264		Ladder, Shelf (2)		Appelez-nous	-
3	849028		Reflector, Shelf		Appelez-nous	-
4	983604		Anchor, Screw (4)		Appelez-nous	-
5	488357		Screw, 8 X 1-1/4 (4)		Appelez-nous	-
6	984233		Cover, Reservoir		Appelez-nous	-
7	935386		Slide & Cover Pan		Appelez-nous	-
9	936584		Slide & Cover Pan		Appelez-nous	-
10	488960		Screw, 8-32 X 1-1/4 (2)		Appelez-nous	-
10	488980		Screw (repair)		Appelez-nous	-
12	937515		Stud, Shelf (2)		Appelez-nous	-
13	984779		Stud, Shelf (3)		Appelez-nous	-
14	935315		Pan, Meat		Appelez-nous	-
15	526383		Stud (2)		Appelez-nous	-
17	985516		Glass, Cantilever Shelf		Appelez-nous	-
18	936787		Shelf, Cantilever (3)		Appelez-nous	-
19	849021		Trim, Shelf		Appelez-nous	-
21	987420		Gasket, Rear		Appelez-nous	-
22	987419		Gasket, Front		Appelez-nous	-
23	935313		Pan, Crisper		Appelez-nous	-
24	208500		Stud, Shelf (4)		Appelez-nous	-
25	988255		Overlay		Appelez-nous	-
29	520965		Support, Ladder (6)				$ 28.22
30	849907		Stud, Reservoir Cover		Appelez-nous	-
31	WP488729		Screw   (Replaces: 488320)			Immediately	$ 7.45

    View Diagram in Separate Window       Print Part List
