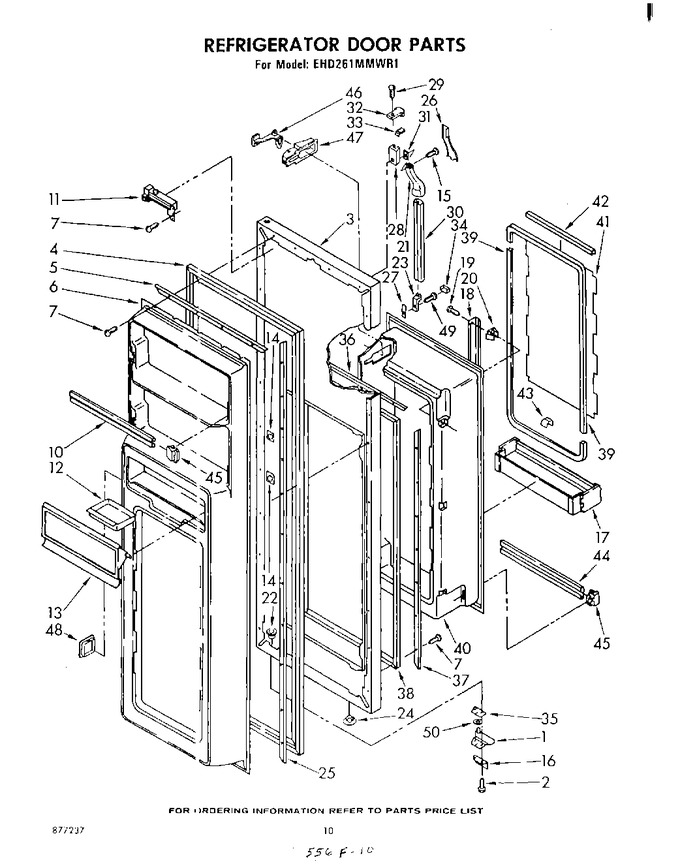

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	987914		Hinge, Bottom (serva-door)		Appelez-nous	-
2	WP250830		Screw, 8-32 X 1/2   (Replaces: 488096)				$ 8.78
3	935845		Door, Refrigerator (white)		Appelez-nous	-
3	935849		Door, Refrigerator (almond)		Appelez-nous	-
3	935847		Door, Refrigerator (golden Harvest)		Appelez-nous	-
3	935846		Door, Refrigerator (coffee)		Appelez-nous	-
3	935848		Door, Refrigerator (new Avocado)		Appelez-nous	-
4	939341		Gasket, Refrigerator Door		Appelez-nous	-
5	836121		Retainer, Top & Bottom (2)		Appelez-nous	-
6	935118		Panel, Interior		Appelez-nous	-
7	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
7	WP681414		Screw, 10-12 X 3/8 (repair)   (Replaces: 488552)			Immediately	$ 8.47
10	988746		Trim, Shelf (2)		Appelez-nous	-
11	840847		Door, Closer		Appelez-nous	-
12	520747		Tray, Butter		Appelez-nous	-
13	935352		Door, Compartment		Appelez-nous	-
14	WP939101		Tap, Plate (2)   (Replaces: 991871)				$ 7.88
15	WP488729		Screw, 8 X 1/2 (2)   (Replaces: 487909)			Immediately	$ 8.28
16	988417		Bracket, Door Stop		Appelez-nous	-
17	935450		Shelf, Cantilever (3)		Appelez-nous	-
18	983804		Ladder, Door Shelf (2)		Appelez-nous	-
19	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 8.28
20	537095		Clip, Expansion (6)		Appelez-nous	-
21	935103		Center End Cap, Handle		Appelez-nous	-
22	509929		Cap, Hinge		Appelez-nous	-
23	935105		End, Cap Handle				$ 32.80
24	534927		Plug, Hole		Appelez-nous	-
25	982887		Retainer, Side (2)		Appelez-nous	-
26	935888		Insert, Handle		Appelez-nous	-
27	935076		Shim, Handle		Appelez-nous	-
28	935878		Retainer, Insert		Appelez-nous	-
29	488915		Screw, 6-32 X 1/2		Appelez-nous	-
30	935095		Handle, Center (new Avocado)		Appelez-nous	-
30	935096		Handle, Center (golden Harvest)		Appelez-nous	-
30	935094		Handle, Center (white, Coffee & Almond)		Appelez-nous	-
31	935075		Shim, Handle		Appelez-nous	-
32	935104		End Cap, Insert Retainer		Appelez-nous	-
33	938770		Spacer, End Cap		Appelez-nous	-
34	987873		Cover, End Cap		Appelez-nous	-
35	986169		Shim, Bottom Hinge		Appelez-nous	-
36	986164		Reinforcement, Top & Bottom (2)		Appelez-nous	-
37	986163		Reinforcement, Side (2)		Appelez-nous	-
38	935453		Gasket, Seal		Appelez-nous	-
39	986453		Trim, Periphery (2)		Appelez-nous	-
40	935117		Panel, Interior Storage		Appelez-nous	-
41	986455		Panel, Decorative		Appelez-nous	-
42	936954		Trim, Decorative (2)		Appelez-nous	-
43	986454		Cap, Trim Joint (2)		Appelez-nous	-
44	986448		Trim, Door Shelf		Appelez-nous	-
45	982123		Retainer, Trim (6)		Appelez-nous	-
46	935111		Rocker Arm		Appelez-nous	-
47	935109		Housing, Rocker Arm		Appelez-nous	-
48	935112		Escutcheon, Panel Opening		Appelez-nous	-
49	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 8.28
50	877237		List, Parts		Appelez-nous	-
50	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
50	488306		Washer		Appelez-nous	-
50	833938		Kit, Terminal Connector				$ 8.47
50	940689		Energy Guide		Appelez-nous	-
50	935825		Guide, Use & Care		Appelez-nous	-
50	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
50	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
50	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
50	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
50	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
50	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
50	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
50	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
50	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
50	261889		Enamel, New Avocado (1 Qt. Uncut)		Appelez-nous	-
50	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
50	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
50	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
50	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
50	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
50	212643		Sealer, Gum (22 Pcs. 3/16`` X 7``)			Immediately	$ 96.42
50	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
50	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
50	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
50	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
50	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
50	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
50	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
50	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	511881		Xlacquer, Aluminum (13 Oz. Spray Can)				$ 309.28
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	261888		Xenamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	261886		Xenamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
