SELECT A DIAGRAM

02 - Door


03 - Cabinet


04 - Liner


05 - Shelf


06 - Breaker And Partition


07 - Unit, Not Illustrated And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

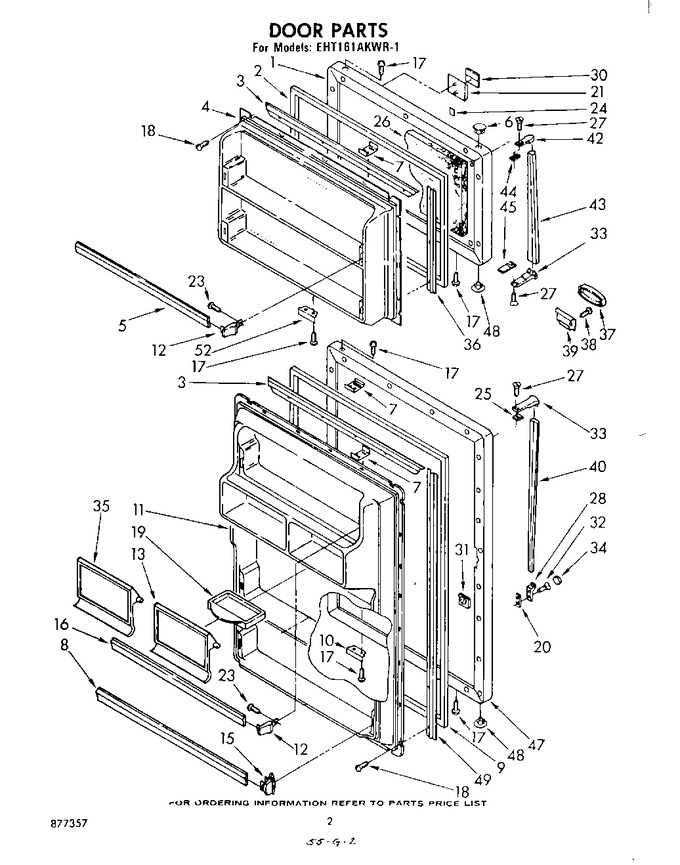

1	939384		Door, Freezer R.h. (also Order Item 26) (new Avocado)		Appelez-nous	-
1	939385		Door, Freezer R.h. (also Order Item 26) (almond)		Appelez-nous	-
1	939383		Door, Freezer R.h. (also Order Item 26) (golden Harvest)		Appelez-nous	-
1	939381		Door, Freezer R.h. (also Order Item 26) (white)		Appelez-nous	-
1	939382		Door, Freezer R.h. (also Order Item 26) (coffee)		Appelez-nous	-
2	987037		Gasket, Freezer Door		Appelez-nous	-
3	836115		Retainer, Top & Bottom (2)		Appelez-nous	-
4	939509		Panel, Interior		Appelez-nous	-
5	938915		Trim, Shelf (2)		Appelez-nous	-
6	WP2212648		Plug Hole (2) (white)   (Replaces: 844478)			Immediately	$ 7.37
6	989892		Plug Hole (2) (coffee)		Appelez-nous	-
6	WP2212648		Plug Hole (2) (golden Harvest)   (Replaces: 989893)			Immediately	$ 7.37
6	989894		Plug Hole (2) (new Avocado)		Appelez-nous	-
6	989196		Plug Hole (2) (almond)		Appelez-nous	-
7	940231		Plate, Tap (2)		Appelez-nous	-
8	938860		Trim Shelf		Appelez-nous	-
9	987036		Gasket, Refrigerator Door		Appelez-nous	-
10	940217		Bracket, Door Stop		Appelez-nous	-
11	938858		Panel, Interior		Appelez-nous	-
12	938983		Support, Door Trim (2)		Appelez-nous	-
13	992596		Door, Butter		Appelez-nous	-
15	982124		Retainer, Door Trim (2)		Appelez-nous	-
16	938859		Trim, Shelf (2)		Appelez-nous	-
17	488930		Screw (repair)		Appelez-nous	-
17	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 7.42
18	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.62
18	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
19	520747		Tray, Butter		Appelez-nous	-
20	992872		Shim, Handle End		Appelez-nous	-
21	849310		Escutcheon		Appelez-nous	-
23	00487953		Screw, 8-18 X 1/2   (Replaces: 487953)				$ 159.66
24	991259		Tape		Appelez-nous	-
25	845298		Spacer, Handle		Appelez-nous	-
26	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
27	WP488920		Screw, 8 X 5/8   (Replaces: 488920)				$ 7.18
27	488923		Screw (repair)		Appelez-nous	-
28	WP2183139		End, Handle Bottom   (Replaces: 983542)			Immediately	$ 46.78
30	848308		Insert, Nameplate		Appelez-nous	-
31	WP939101		Plate, Tap (2)   (Replaces: 939101)				$ 7.09
32	WP488729		Screw, 8 X 1/2   (Replaces: 487875)			Immediately	$ 7.45
33	983543		End, Handle		Appelez-nous	-
34	WP1101634		Cover, Screw   (Replaces: 981182)				$ 8.71
35	992597		Door, Utility		Appelez-nous	-
36	836119		Retainer, Side (2)		Appelez-nous	-
37	989901		Medallion (coffee)		Appelez-nous	-
37	989903		Medallion (golden Harvest)		Appelez-nous	-
37	989904		Medallion (almond)		Appelez-nous	-
37	989902		Medallion (new Avocado)		Appelez-nous	-
37	848382		Medallion (white)		Appelez-nous	-
38	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 7.45
39	843213		Clip, Medallion		Appelez-nous	-
40	982946		Handle, Center		Appelez-nous	-
42	983544		End, Handle		Appelez-nous	-
43	982944		Handle, Center		Appelez-nous	-
44	848338		Shim		Appelez-nous	-
45	987867		Spacer		Appelez-nous	-
47	940289		Door, Refrigerator (new Avocado)		Appelez-nous	-
47	940290		Door, Refrigerator (almond)		Appelez-nous	-
47	940286		Door, Refrigerator (white)		Appelez-nous	-
47	940287		Door, Refrigerator (coffee)		Appelez-nous	-
47	940288		Door, Refrigerator (golden Harvest)		Appelez-nous	-
48	989878		Plug, Hole (2) (coffee)		Appelez-nous	-
48	989879		Plug, Hole (2) (golden Harvest)		Appelez-nous	-
48	989197		Plug, Hole (2) (almond)		Appelez-nous	-
48	989880		Plug, Hole (2) (new Avocado)		Appelez-nous	-
48	534927		Plug, Hole (2) (white)		Appelez-nous	-
49	836117		Retainer, Side (2)		Appelez-nous	-
52	940216		Bracket, Door Stop		Appelez-nous	-
