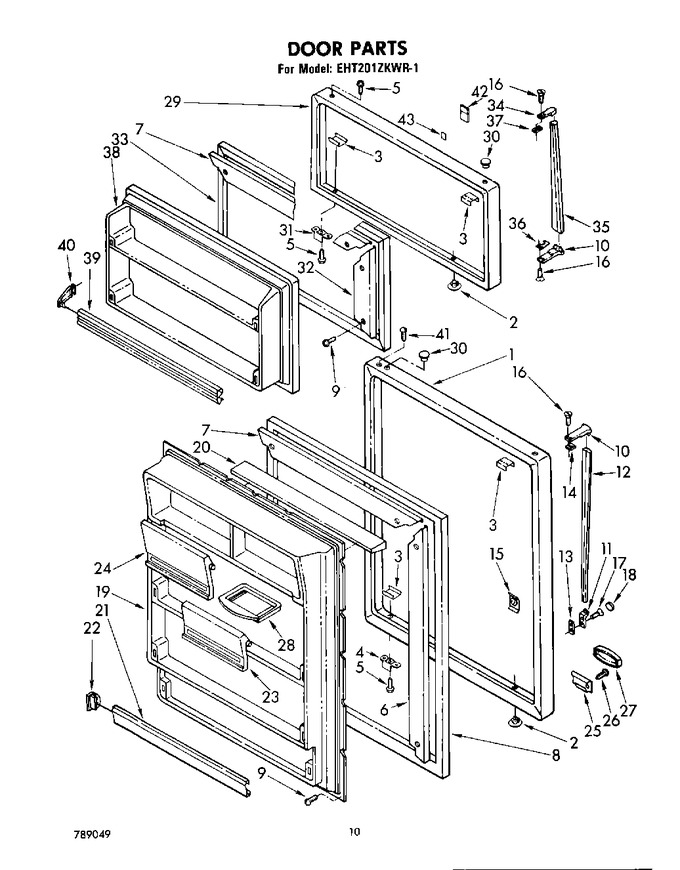

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	943169		Refrigerator Door (white)		Appelez-nous	-
1	943173		Refrigerator Door (almond)		Appelez-nous	-
1	943172		Refrigerator Door (new Avocado)		Appelez-nous	-
1	943171		Refrigerator Door (golden Harvest)		Appelez-nous	-
1	943170		Refrigerator Door (coffee)		Appelez-nous	-
2	534927		Hole Plug (white)		Appelez-nous	-
3	943185		Tap Plate		Appelez-nous	-
4	944036		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2 (2)   (Replaces: 488921)			Immediately	$ 8.24
5	488931		Screw (repair)		Appelez-nous	-
6	836117		Retainer, Gasket Side		Appelez-nous	-
7	836118		Retainer, Gasket Top		Appelez-nous	-
8	2188450A		Door Gasket, Magnetic   (Replaces: 942931)				$ 284.09
9	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
9	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
10	943182		Cap, Handle		Appelez-nous	-
11	WP2183139		Cap, Handle   (Replaces: 983542)			Immediately	$ 51.98
12	982946		Handle, Center		Appelez-nous	-
13	992872		Shim, Handle End		Appelez-nous	-
14	943188		Spacer, Handle				$ 7.80
15	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
16	WP488920		Screw, 8 X 5/8   (Replaces: 488920)				$ 7.98
16	488923		Screw (repair)		Appelez-nous	-
17	WP488729		Screw, 8 X 1/2   (Replaces: 487875)			Immediately	$ 8.28
18	WP1101634		Screw Cover   (Replaces: 981182)				$ 9.68
19	943161		Panel, Interior		Appelez-nous	-
20	849802		Support, Door Dike		Appelez-nous	-
21	935919		Trim, Door Shelf		Appelez-nous	-
22	943125		Retainer, Door Trim		Appelez-nous	-
23	942164		Compartment, Door Butter		Appelez-nous	-
24	940708		Compartment, Utility		Appelez-nous	-
25	843213		Clip, Medallion		Appelez-nous	-
26	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
27	989904		Medallion (almond)		Appelez-nous	-
27	848382		Medallion (white)		Appelez-nous	-
27	989901		Medallion (coffee)		Appelez-nous	-
27	989903		Medallion (golden Harvest)		Appelez-nous	-
27	989902		Medallion (new Avocado)		Appelez-nous	-
28	520747		Tray, Butter		Appelez-nous	-
29	943177		Freezer Door (golden Harvest)		Appelez-nous	-
29	943176		Freezer Door (coffee)		Appelez-nous	-
29	943178		Freezer Door (new Avocado)		Appelez-nous	-
29	943179		Freezer Door (almond)		Appelez-nous	-
29	943175		Freezer Door (white)		Appelez-nous	-
30	989196		Hole Plug (almond)		Appelez-nous	-
30	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
30	989892		Hole Plug (coffee)		Appelez-nous	-
30	WP2212648		Hole Plug (golden Harvest)   (Replaces: 989893)			Immediately	$ 8.19
30	989894		Hole Plug (new Avocado)		Appelez-nous	-
31	944035		Bracket, Door Stop		Appelez-nous	-
32	836119		Retainer Gasket Side		Appelez-nous	-
33	2188460A		Door Gasket Magnetic   (Replaces: 942933)				$ 231.51
34	WP2191882		Cap, Handle   (Replaces: 943184)				$ 62.77
35	982944		Handle, Center		Appelez-nous	-
36	943188		Spacer				$ 7.80
37	943187		Shim, Handle				$ 25.14
38	943946		Interior, Door F.c.		Appelez-nous	-
39	986542		Trim, Door Shelf		Appelez-nous	-
40	WP986540		Retainer, Door Trim   (Replaces: 943829)				$ 8.07
41	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
42	945117		Nameplate		Appelez-nous	-
43	991259		Tape Strip		Appelez-nous	-
