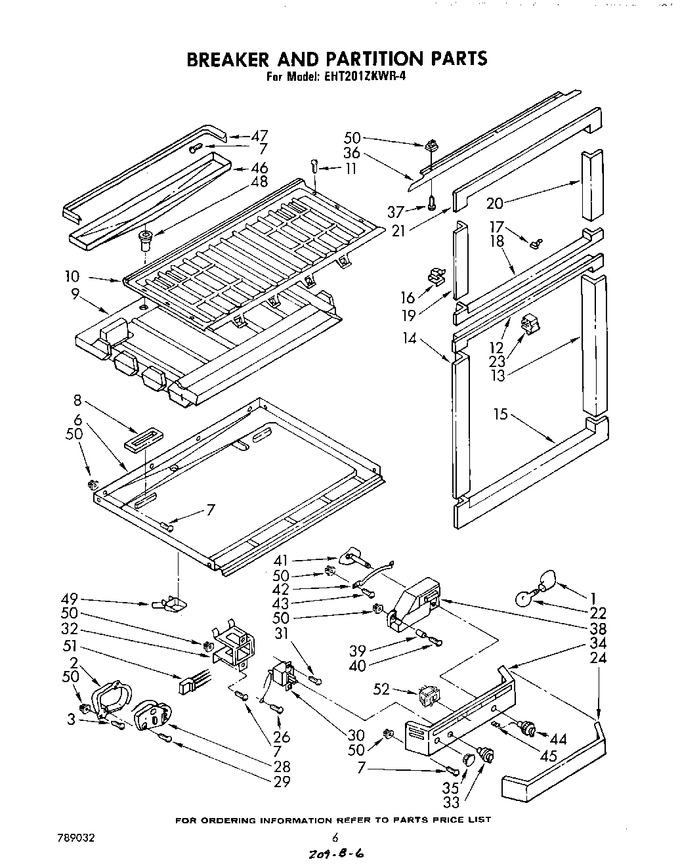

04 - Breaker And Partition , Lit/optional
05 - Unit
06 - Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4387478 | Socket (Replaces: 851067) |
|
Immediately | $ 115.67 | ||||
| 2 | 983079 | Container Timer |
|
- | |||||
| 3 | WP489069 | Screw, 8 X 1/2 (2) (Replaces: 488772) |
|
Immediately | $ 8.40 | ||||
| 6 | 981738 | Separator (bottom) |
|
- | |||||
| 7 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 8 | 981725 | Gasket, Air Return |
|
- | |||||
| 9 | 991173 | Insulation, Separator |
|
- | |||||
| 10 | 848423 | Separator (top) |
|
- | |||||
| 11 | WP488729 | Screw, 8 X 1/2 (4) (Replaces: 488320) |
|
Immediately | $ 8.28 | ||||
| 12 | 841643 | Breaker, Mullion Bottom |
|
- | |||||
| 13 | 841724 | Breaker, R.s. |
|
- | |||||
| 14 | 841721 | Breaker, L.s. |
|
- | |||||
| 15 | 839829 | Breaker, Bottom |
|
- | |||||
| 16 | 836090 | Breaker, Clip |
|
- | |||||
| 17 | 534365 | Breaker, Trim Clip |
|
$ 14.83 | |||||
| 18 | 841642 | Breaker, Mullion (top) |
|
- | |||||
| 19 | 841719 | Breaker L.s. |
|
- | |||||
| 20 | 841722 | Breaker R.s. |
|
- | |||||
| 21 | 839830 | Breaker, Top |
|
- | |||||
| 22 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 23 | W11384469 | Rocker Arm Switch (Replaces: 549702) |
|
Immediately | $ 39.09 | ||||
| 24 | 983910 | Light Lens |
|
- | |||||
| 26 | WP489128 | Screw, 8-32 X 3/8 (Replaces: 488500) |
|
$ 11.40 | |||||
| 28 | 943434 | Timer, Defrost |
|
- | |||||
| 29 | 488678 | Screw, 8 X 3/8 (2) |
|
- | |||||
| 30 | GC506 | Thermostat & Barrier Assembly (Replaces: 850955) |
|
$ 50.44 | |||||
| 31 | WP965173 | Screw, 8-15 X 3/8 (2) (Replaces: 487584) |
|
Immediately | $ 11.87 | ||||
| 32 | 848446 | Bracket, Thermostat |
|
- | |||||
| 33 | 836482 | Knob, Temperature Control |
|
- | |||||
| 34 | 942214 | Panel, Control |
|
- | |||||
| 35 | 534927 | Hole Plug |
|
- | |||||
| 36 | 982582 | Air Baffle |
|
- | |||||
| 37 | WP489069 | Screw, 8 X 1/2 (3) (Replaces: 488772) |
|
Immediately | $ 8.40 | ||||
| 38 | 836487 | Air Diffuser |
|
- | |||||
| 39 | 836667 | Spacer (2) |
|
- | |||||
| 40 | 488357 | Screw, 8 X 1-1/4 (2) |
|
- | |||||
| 41 | 836247 | Damper, Air |
|
- | |||||
| 42 | 836493 | Retrainer, Air Dampener |
|
- | |||||
| 43 | 488624 | Screw, 8 X 3/8 |
|
- | |||||
| 44 | 837445 | Control Knob |
|
- | |||||
| 45 | 837444 | Knob, Retainer |
|
- | |||||
| 46 | 841686 | Drain Pan |
|
- | |||||
| 47 | 843291 | Gasket, Drain Pan |
|
- | |||||
| 48 | 841770 | Fitting, Drain Pan |
|
- | |||||
| 49 | 841708 | Cup, Drain |
|
- | |||||
| 50 | 842339 | Grommet |
|
- | |||||
| 51 | 481782 | Liner Wiring (defrost Timer) |
|
- | |||||
| 52 | 789032 | List, Parts |
|
- | |||||
| 52 | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| 52 | 942166 | Consumer Buy Guide |
|
- | |||||
| 52 | 946613 | Wiring Sheet |
|
- | |||||
| 52 | 946866 | Energy Guide |
|
- | |||||
| 52 | 942935 | Guide, Use & Care |
|
- | |||||
| 52 | 938049 | Switch, Toggle |
|
- | |||||
| 52 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 52 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 52 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 52 | 876370 | Fiberglass Insulation (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 | |||||
| 52 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 109.25 | |||||
| 52 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 60.28 | |||||
| 52 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | |||||
| 52 | 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | |||||
| 52 | 261887 | Enamel, Coffee (1 Qt. Uncut) |
|
- | |||||
| 52 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 52 | 799351 | Blend, Thinner (1 Gal.) |
|
- | |||||
| 52 | 261889 | Enamel, New Avocado (1 Qt. Uncut) |
|
- | |||||
| 52 | 261891 | Enamel, Golden Harvest (1 Qt. Uncut) |
|
- | |||||
| 52 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 52 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | |||||
| 52 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | ||||
| 52 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | ||||
| 52 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 96.42 | ||||
| 52 | 479502 | Tape, Vinyl (1/4`` X 108``) |
|
$ 66.77 | |||||
| 52 | 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 243.14 | |||||
| 52 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 52 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 51.75 | |||||
| 52 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 82.37 | |||||
| 52 | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 350942 | Primer White (13 Oz. Spray Can) |
|
$ 94.14 | ||||||
| 261890 | Xenamel, Golden Harvest (13 Oz. Spray Can) |
|
- | ||||||
| 261888 | Xenamel, New Avocado (13 Oz. Spray Can) |
|
- | ||||||
| 261886 | Xenamel, Coffee (13 Oz. Spray Can) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 350956 | Xenamel, Almond (13 Oz. Spray Can) |
|
$ 54.01 | ||||||
| 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 59.89 | ||||||
| 350941 | Xleveler, Enamel (13 Oz. Spray Can) |
|
- |
