02 - Cabinet


03 - Liner


04 - Breaker And Partition


05 - Unit


06 - Door , Not Illustrated And Optional

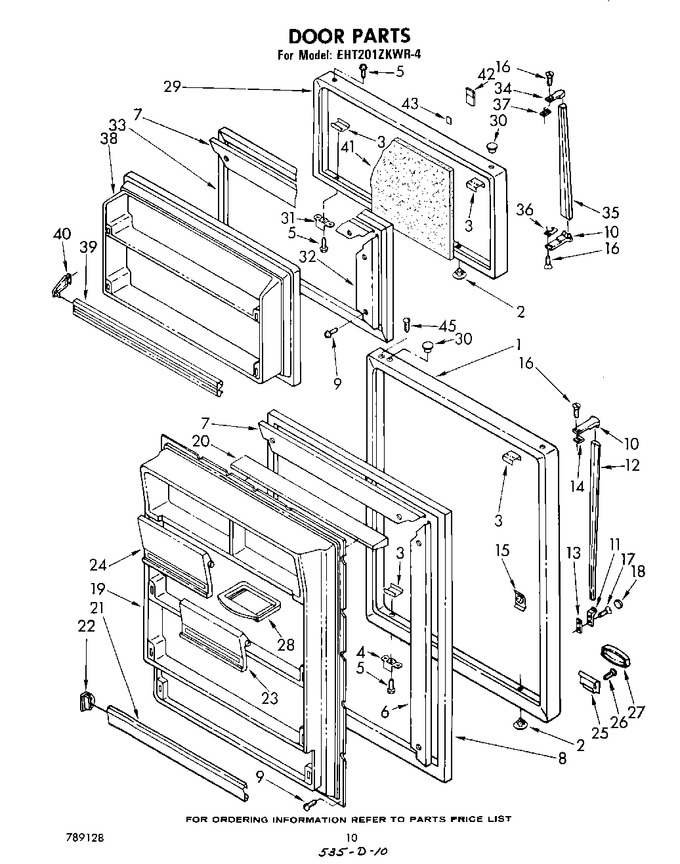

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	943169		Refrigerator Door (white)		Appelez-nous	-
1	943173		Refrigerator Door (almond)		Appelez-nous	-
1	943171		Refrigerator Door (golden Harvest)		Appelez-nous	-
1	943170		Refrigerator Door (coffee)		Appelez-nous	-
1	943172		Refrigerator Door (new Avocado)		Appelez-nous	-
2	534927		Hole Plug (white)		Appelez-nous	-
3	943185		Tap Plate		Appelez-nous	-
4	944036		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2 (2)   (Replaces: 488921)			Immediately	$ 8.24
5	488931		Screw (repair)		Appelez-nous	-
6	836117		Retainer, Gasket Side		Appelez-nous	-
7	836118		Retainer, Gasket Top		Appelez-nous	-
8	2188450A		Door Gasket, Magnetic   (Replaces: 942931)				$ 284.09
9	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
9	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
10	943182		Cap, Handle		Appelez-nous	-
11	WP2183139		Cap, Handle   (Replaces: 983542)			Immediately	$ 51.98
12	982946		Handle, Center		Appelez-nous	-
13	992872		Shim, Handle End		Appelez-nous	-
14	943188		Spacer, Handle				$ 7.80
15	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
16	488923		Screw (repair)		Appelez-nous	-
16	WP488920		Screw, 8 X 5/8   (Replaces: 488920)				$ 7.98
17	WP488729		Screw, 8 X 1/2   (Replaces: 487875)			Immediately	$ 8.28
18	WP1101634		Screw Cover   (Replaces: 981182)				$ 9.68
19	943161		Panel, Interior		Appelez-nous	-
20	849802		Support, Door Dike		Appelez-nous	-
21	935919		Trim, Door Shelf		Appelez-nous	-
22	943125		Retainer, Door Trim		Appelez-nous	-
23	942164		Compartment, Door Butter		Appelez-nous	-
24	940708		Compartment, Utility		Appelez-nous	-
25	843213		Clip, Medallion		Appelez-nous	-
26	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
27	848382		Medallion (white)		Appelez-nous	-
27	989904		Medallion (almond)		Appelez-nous	-
27	989903		Medallion (golden Harvest)		Appelez-nous	-
27	989901		Medallion (coffee)		Appelez-nous	-
27	989902		Medallion (new Avocado)		Appelez-nous	-
28	520747		Tray, Butter		Appelez-nous	-
29	943177		Freezer Door (golden Harvest)		Appelez-nous	-
29	943179		Freezer Door (almond (also Order Item 41 When Replacing Door))		Appelez-nous	-
29	943175		Freezer Door (white)		Appelez-nous	-
29	943176		Freezer Door (coffee)		Appelez-nous	-
29	943178		Freezer Door (new Avocado)		Appelez-nous	-
30	989892		Hole Plug (coffee)		Appelez-nous	-
30	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
30	WP2212648		Hole Plug (golden Harvest)   (Replaces: 989893)			Immediately	$ 8.19
30	989894		Hole Plug (new Avocado)		Appelez-nous	-
30	989196		Hole Plug (almond)		Appelez-nous	-
31	944035		Bracket, Door Stop		Appelez-nous	-
32	836119		Retainer Gasket Side		Appelez-nous	-
33	2188460A		Door Gasket Magnetic   (Replaces: 942933)				$ 231.51
34	WP2191882		Cap, Handle   (Replaces: 943184)				$ 62.77
35	982944		Handle, Center		Appelez-nous	-
36	943188		Spacer				$ 7.80
37	943187		Shim, Handle				$ 25.14
38	943946		Interior, Door F.c.		Appelez-nous	-
39	986542		Trim, Door Shelf		Appelez-nous	-
40	WP986540		Retainer, Door Trim   (Replaces: 943829)				$ 8.07
41	876029		Kit, Foam Slab		Appelez-nous	-
42	945117		Nameplate		Appelez-nous	-
43	991259		Tape Strip		Appelez-nous	-
45	789128		List, Parts		Appelez-nous	-
45	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
45	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
45	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
45	876370		Fiberglass Insulation (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
45	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
45	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
45	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
45	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
45	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
45	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
45	942166		Consumer Buy Guide		Appelez-nous	-
45	946646		Wiring Sheet		Appelez-nous	-
45	946866		Energy Guide		Appelez-nous	-
45	942935		Guide, Use & Care		Appelez-nous	-
45	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
45	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
45	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
45	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
45	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
45	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
45	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
45	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
45	261889		Enamel, New Avocado (1 Qt. Uncut)		Appelez-nous	-
45	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
45	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
45	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
45	479502		Tape, Vinyl (1/4`` X 108``)				$ 66.77
45	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
45	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
45	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	261888		Xenamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
	261886		Xenamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
