02 - Door
03 - Cabinet
04 - Liner
05 - Shelf
06 - Compartment Separator And Control
07 - Unit , Parts Not Illustrated
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

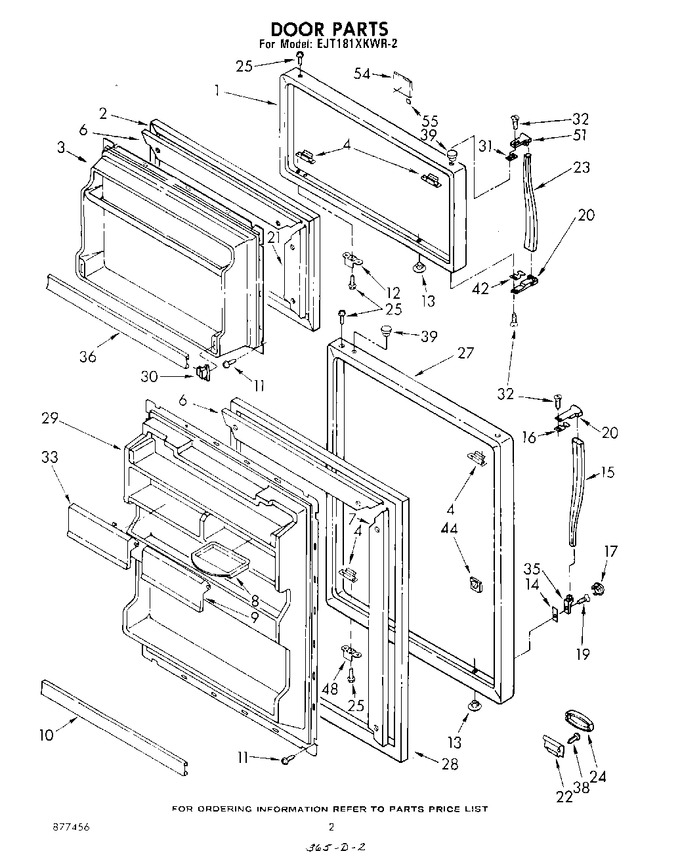

| 1 | 944141 | Door, Freezer (white) |
|
- | |||||
| 1 | 944145 | Door, Freezer (almond) |
|
- | |||||
| 1 | 944143 | Door, Freezer (golden Harvest) |
|
- | |||||
| 1 | 944144 | Door, Freezer (new Avocado) |
|
- | |||||
| 1 | 944142 | Door, Freezer (coffee) |
|
- | |||||
| 2 | 987037 | Gasket, Freezer Door |
|
- | |||||
| 3 | 940681 | Panel, Interior |
|
- | |||||
| 4 | 943185 | Tap Plate (2) |
|
- | |||||
| 6 | 836115 | Retainer, Top & Bottom (2) |
|
- | |||||
| 7 | 836117 | Retainer, Side (2) |
|
- | |||||
| 8 | 520747 | Tray, Butter |
|
- | |||||
| 9 | 940678 | Door, Butter |
|
- | |||||
| 10 | 939359 | Trim, Shelf (3) |
|
- | |||||
| 11 | WP681414 | Screw, 10-12 X 3/8 (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 11 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 12 | 944035 | Bracket, Door Stop |
|
- | |||||
| 13 | 989878 | Plug, Hole (coffee) |
|
- | |||||
| 13 | 534927 | Plug, Hole (white) |
|
- | |||||
| 13 | 989197 | Plug, Hole (almond) |
|
- | |||||
| 13 | 989879 | Plug, Hole (golden Harvest) |
|
- | |||||
| 13 | 989880 | Plug, Hole (new Avocado) |
|
- | |||||
| 14 | 992872 | Shim, Handle |
|
- | |||||
| 15 | 982946 | Handle, Center |
|
- | |||||
| 16 | 943188 | Spacer, Handle |
|
$ 7.80 | |||||
| 17 | WP1101634 | Cover, Screw Handle (Replaces: 981182) |
|
$ 9.68 | |||||
| 19 | WP488729 | Screw, 8 X 1/2 (Replaces: 487875) |
|
Immediately | $ 8.28 | ||||
| 20 | 943182 | Cap, Handle |
|
- | |||||
| 21 | 836119 | Retainer, Side (2) |
|
- | |||||
| 22 | 843213 | Clip, Medallion |
|
- | |||||
| 23 | 982944 | Handle, Center |
|
- | |||||
| 24 | 989903 | Medallion (golden Harvest) |
|
- | |||||
| 24 | 989904 | Medallion (almond) |
|
- | |||||
| 24 | 848382 | Medallion (white) |
|
- | |||||
| 24 | 989901 | Medallion (coffee) |
|
- | |||||
| 24 | 989902 | Medallion (new Avocado) |
|
- | |||||
| 25 | 488930 | Screw (repair) |
|
- | |||||
| 25 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 27 | 944136 | Door, Refrigerator (golden Harvest) |
|
- | |||||
| 27 | 944138 | Door, Refrigerator (almond) |
|
- | |||||
| 27 | 944134 | Door, Refrigerator (white) |
|
- | |||||
| 27 | 944135 | Door, Refrigerator (coffee) |
|
- | |||||
| 27 | 944137 | Door, Refrigerator (new Avocado) |
|
- | |||||
| 28 | 987036 | Gasket, Refrigerator Door |
|
- | |||||
| 29 | 940677 | Panel, Interior |
|
- | |||||
| 30 | 839975 | Retainer, Door Trim (2) |
|
$ 5.84 | |||||
| 31 | 943187 | Shim, Handle |
|
$ 25.14 | |||||
| 32 | 488923 | Screw (repair) |
|
- | |||||
| 32 | WP488920 | Screw, 8 X 5/8 (Replaces: 488920) |
|
$ 7.98 | |||||
| 33 | 940679 | Utility, Door |
|
- | |||||
| 35 | WP2183139 | End Cap, Bottom (Replaces: 983542) |
|
Immediately | $ 51.98 | ||||
| 36 | 938632 | Trim, Shelf |
|
- | |||||
| 38 | WP488729 | Screw, 8 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 39 | 989894 | Plug, Hole (new Avocado) |
|
- | |||||
| 39 | WP2212648 | Plug, Hole (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 39 | 989892 | Plug, Hole (coffee) |
|
- | |||||
| 39 | WP2212648 | Plug, Hole (golden Harvest) (Replaces: 989893) |
|
Immediately | $ 8.19 | ||||
| 39 | 989196 | Plug, Hole (almond) |
|
- | |||||
| 42 | 943188 | Spacer, Handle |
|
$ 7.80 | |||||
| 44 | WP939101 | Screw Anchor (2) (Replaces: 939101) |
|
$ 7.88 | |||||
| 48 | 944036 | Bracket, Door Stop |
|
- | |||||
| 51 | WP2191882 | Top End Cap Handle (Replaces: 943184) |
|
$ 62.77 | |||||
| 54 | 945120 | Nameplate |
|
- | |||||
| 55 | 991259 | Tape |
|
- |
