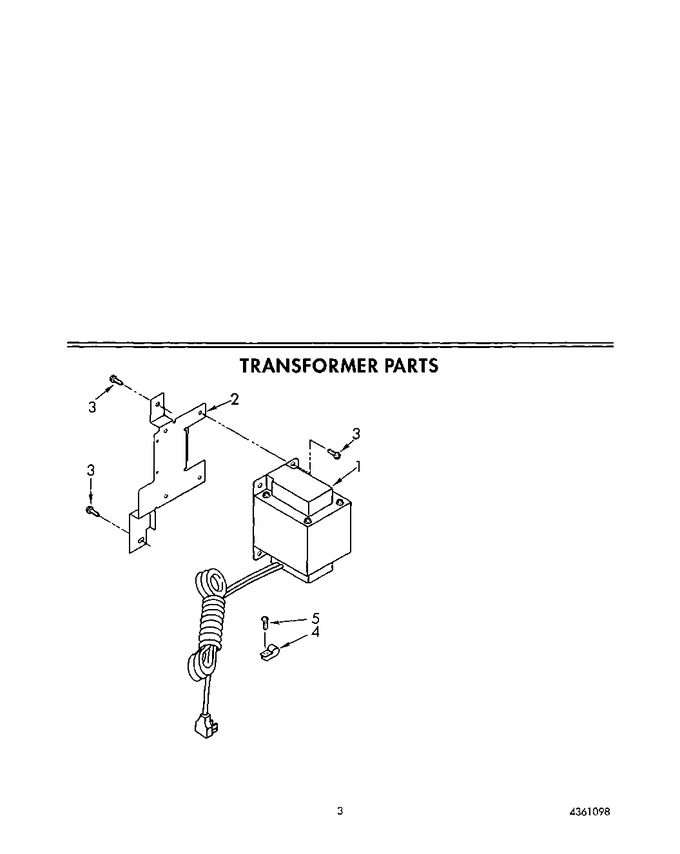

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1129495		Transformer		Appelez-nous	-
2	1129328		Bracket, Transformer		Appelez-nous	-
3	489364		Screw		Appelez-nous	-
4	1129503		Clamp, Cord		Appelez-nous	-
4	836472		Clamp, Tube		Appelez-nous	-
5	WP489478		Screw   (Replaces: 489242)				$ 8.18
5	WP489464		Screw, W/brake   (Replaces: 489337)			Immediately	$ 8.38

    View Diagram in Separate Window       Print Part List
