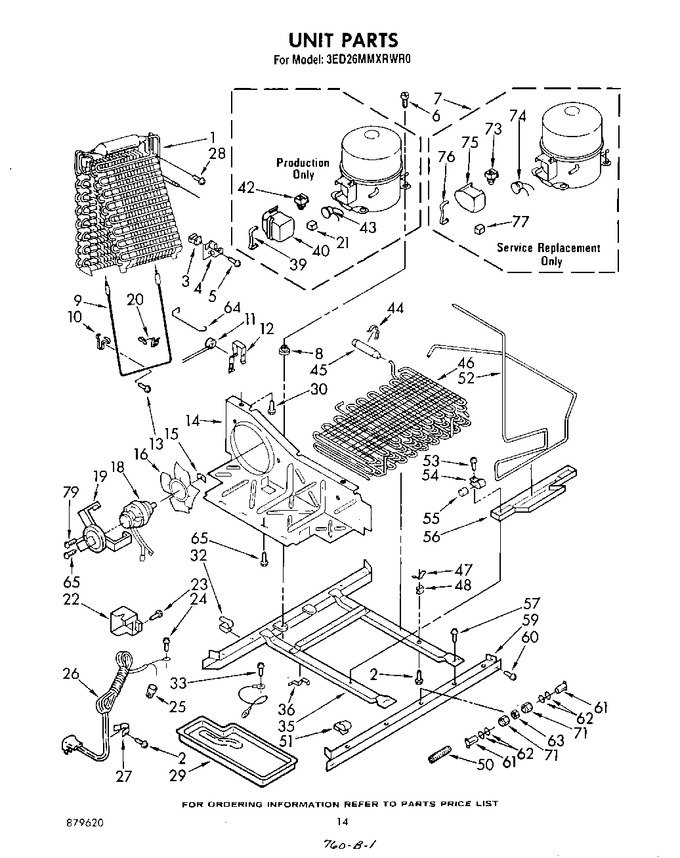

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1105176		Evaporator		Appelez-nous	-
2	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
3	944454		Grommet, Screw		Appelez-nous	-
4	842436		Support, Evaporator		Appelez-nous	-
5	WP681414		Screw, 10-12 X 3/8   (Replaces: 489049)			Immediately	$ 8.47
6	488400		Screw, 1/4-28 X 1`` (4)		Appelez-nous	-
7	876642		Compressor (includes Items 73, 74, 75, 76 & 77) (also Order 876765 Tube Kit)		Appelez-nous	-
8	547283		Grommet (4)		Appelez-nous	-
9	1114261		Heater, Defrost		Appelez-nous	-
10	938023		Clamp, Evaporator		Appelez-nous	-
11	DTS70		Defrost, Bimetal   (Replaces: 989578)			Immediately	$ 9.79
12	1106913		Clamp		Appelez-nous	-
13	W11693756		Screw, 8 X 5/8   (Replaces: 487582)			Immediately	$ 14.76
14	851167		Baffle, Air		Appelez-nous	-
15	WP486692		Nut, Speed   (Replaces: 486692)				$ 8.43
16	989524		Blade, Fan		Appelez-nous	-
18	989567		Motor, Fan		Appelez-nous	-
19	548695		Bracket, Motor		Appelez-nous	-
20	549419		Heater, Clamp		Appelez-nous	-
21	547272		Bumper		Appelez-nous	-
22	850482		Box, Junction		Appelez-nous	-
23	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 8.28
24	488474		Screw, Ground		Appelez-nous	-
25	227991		Wire Connector		Appelez-nous	-
26	943333		Cord, Service		Appelez-nous	-
27	200647		Clamp		Appelez-nous	-
28	WP681414		Screw (repair)   (Replaces: 489254)			Immediately	$ 8.47
28	WP489478		Screw   (Replaces: 489242)				$ 8.18
29	982899		Tray, Evaporator		Appelez-nous	-
30	488978		Screw, 8-15 X 3/8		Appelez-nous	-
32	548745		Clip, Wire		Appelez-nous	-
33	303776		Screw, 8-32 X 5/16   (Replaces: 488879)		Appelez-nous	-
35	851125		Frame Assembly		Appelez-nous	-
36	548744		Clip (2)		Appelez-nous	-
39	531318		Spring, Case		Appelez-nous	-
40	549945		Case, Relay		Appelez-nous	-
42	989662		Relay		Appelez-nous	-
43	989562		Overload		Appelez-nous	-
44	548508		Clamp		Appelez-nous	-
45	W10843121		Drier   (Replaces: 548504)			Immediately	$ 57.13
46	851123		Condenser & Precooler Assembly		Appelez-nous	-
47	548738		Clamp (4)		Appelez-nous	-
48	548737		Grommet (4)		Appelez-nous	-
50	983659		Spring, Tube Forming		Appelez-nous	-
51	934011		Clip, Water Tube (3)		Appelez-nous	-
52	1105179		Exchanger, Heat		Appelez-nous	-
53	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 22.22
54	510716		Clamp (2)		Appelez-nous	-
55	510769		Dampener (2)		Appelez-nous	-
56	989269		Pan, Drip		Appelez-nous	-
57	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
59	851177		Rail, Front		Appelez-nous	-
60	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
61	4387491		Insert, Tube (2)   (Replaces: 841707)				$ 8.23
62	488794		Ring, ``o`` (4)		Appelez-nous	-
63	WP4211117		Union   (Replaces: 489098)				$ 10.46
64	851165		Guard, Fan		Appelez-nous	-
65	488624		Screw, 8 X 3/8		Appelez-nous	-
71	WP245183		Nut (2)   (Replaces: 487857)				$ 8.84
73	989661		Relay		Appelez-nous	-
74	989562		Overload		Appelez-nous	-
75	549945		Cover		Appelez-nous	-
76	531318		Strap		Appelez-nous	-
77	547272		Bumper		Appelez-nous	-
79	876764		Valve, Access(3/16``)			Immediately	$ 95.92
79	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
79	978029		Valve Access (5/8``)				$ 93.85
79	978030		Valve, Access (3/4``)				$ 137.25
79	681390		Screw, 8-32 X 3/8   (Replaces: 489019)				$ 13.71
79	978026		Valve, Access (5/16``)			Immediately	$ 134.49
79	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 18.65
79	978028		Valve, Access (1/2)		Appelez-nous	-
