02 - Cabinet


03 - Liner


04 - Door


05 - Unit


06 - Shelf , Not Illustrated And Optional

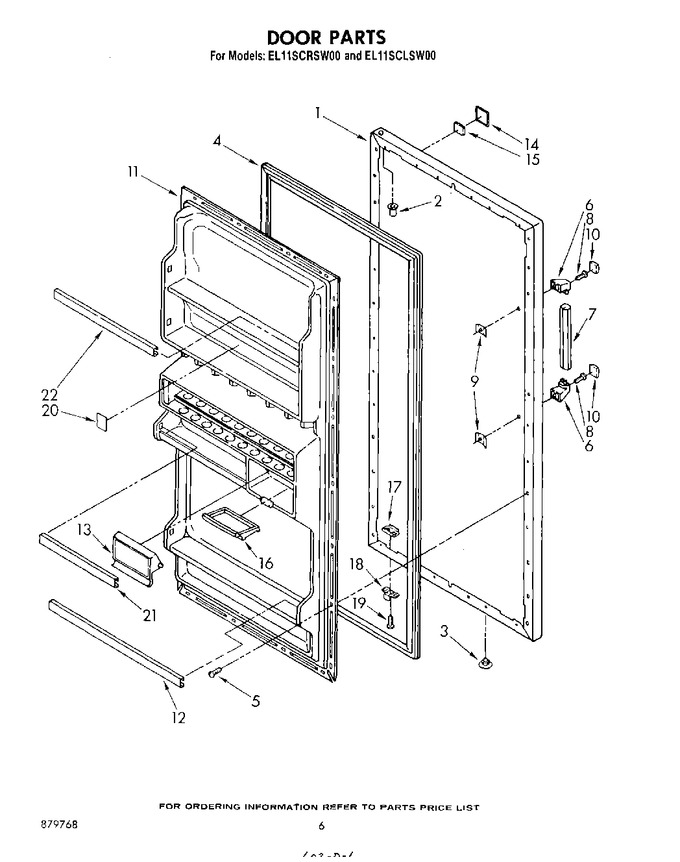

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1103785		Refrigerator Door Panel R.h. (white)		Appelez-nous	-
1	1103787		Refrigerator Door Panel R.h. (almond)		Appelez-nous	-
1	1103782		Refrigerator Door Panel R.h. (white)		Appelez-nous	-
1	1103784		Refrigerator Door Panel R.h. (almond Refrigerator Door Panel L.h.)		Appelez-nous	-
2	509929		Cap, Hinge Sleeve (2)		Appelez-nous	-
3	534927		Hole Plug (2)		Appelez-nous	-
4	1103563		Door, Gasket Magnetic		Appelez-nous	-
5	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.56
5	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.62
6	946737		End, Door Handle		Appelez-nous	-
7	1110069		Door Handle, Center		Appelez-nous	-
8	488987		Screw, 8-15 X 1-5/8		Appelez-nous	-
9	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.09
10	946742		End Cover, Door Handle (2)		Appelez-nous	-
11	1111544		Panel, Interior Door		Appelez-nous	-
12	1116116		Trim, Door Shelf		Appelez-nous	-
13	1110148		Compartment Door, Butter		Appelez-nous	-
14	945119		Nameplate		Appelez-nous	-
15	991259		Tape Strip		Appelez-nous	-
16	520747		Tray, Butter		Appelez-nous	-
17	943185		Tap Plate		Appelez-nous	-
18	944036		Bracket, Door Stop		Appelez-nous	-
19	488930		Screw (repair)		Appelez-nous	-
19	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 7.42
20	1100411		Use & Care Label		Appelez-nous	-
21	1116156		Trim, Door Shelf		Appelez-nous	-
22	1116155		Trim, Door Shelf (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
