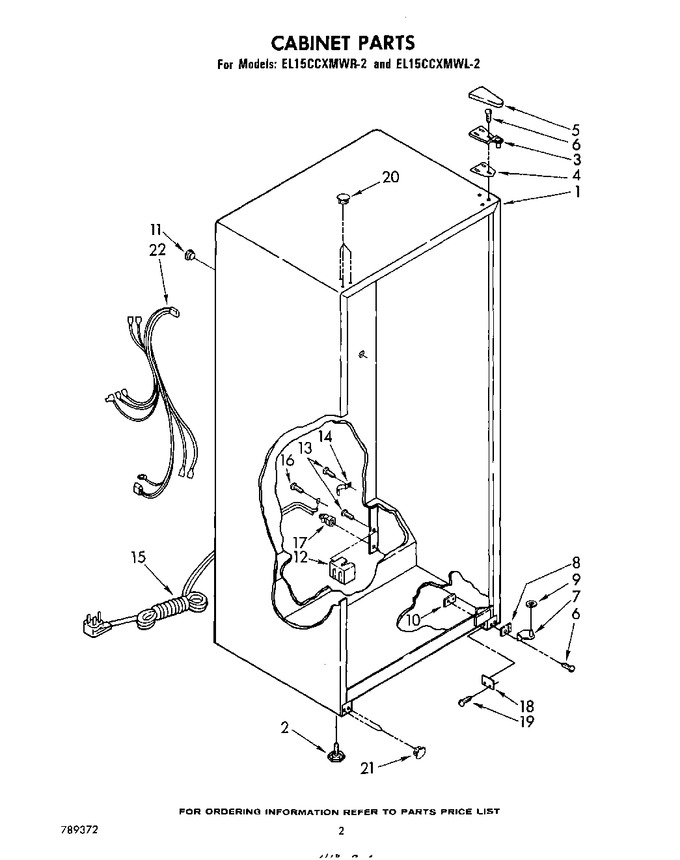

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet
03 - Liner , Lit/optional
04 - Door
05 - Unit
06 - Shelf
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | W11117769 | Leveler (4) (Replaces: 939005) |
|
Immediately | $ 19.37 | ||||
| 3 | 842039 | Hinge, Top |
|
- | |||||
| 4 | 836192 | Shim, Hinge |
|
- | |||||
| 5 | 989895 | Hinge, Cover (coffee) |
|
- | |||||
| 5 | 989194 | Hinge Cover (almond) |
|
- | |||||
| 5 | 842010 | Hinge Cover (white) |
|
- | |||||
| 5 | 1100172 | Hinge Cover (toast) |
|
- | |||||
| 5 | 1100173 | Hinge Cover (platinum) |
|
- | |||||
| 5 | 989896 | Hinge Cover (golden Harvest) |
|
- | |||||
| 6 | 488949 | Screw (repair) |
|
- | |||||
| 6 | WP999367 | Screw, 10-32 X 23/32 (Replaces: 489105) |
|
$ 8.56 | |||||
| 7 | 943670 | Hinge, Bottom L.h. |
|
- | |||||
| 7 | 943668 | Hinge, Bottom R.h. |
|
- | |||||
| 8 | 935738 | Shim (repair) |
|
- | |||||
| 8 | 935737 | Shim, Bottom Hinge |
|
- | |||||
| 9 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 10.74 | ||||
| 10 | 935743 | Tap Plate, Bottom |
|
- | |||||
| 11 | 938284 | Grommet, Wiring |
|
- | |||||
| 12 | 937068 | Box, Junction |
|
- | |||||
| 13 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 14 | 939009 | Clamp |
|
- | |||||
| 15 | 850626 | Cord, Service |
|
- | |||||
| 16 | 488474 | Screw, 8-32 X 3/8 |
|
- | |||||
| 17 | 544108 | Bushing, Strain Relief |
|
- | |||||
| 18 | 1100698 | Tube, Rail Cover (toast) |
|
- | |||||
| 18 | 1100697 | Tube, Rail Cover (platinum) |
|
- | |||||
| 18 | 935707 | Tube, Rail Cover (white) |
|
- | |||||
| 18 | 935709 | Tube, Rail Cover (golden Harvest) |
|
- | |||||
| 18 | 935708 | Tube, Rail Cover (coffee) |
|
- | |||||
| 18 | 935711 | Tube, Rail Cover (almond) |
|
- | |||||
| 19 | 488895 | Screw |
|
- | |||||
| 20 | 1100177 | Hole Plug (3) (platinum) |
|
- | |||||
| 20 | 842031 | Hole Plug (3) (white) |
|
- | |||||
| 20 | 989875 | Hole Plug (3) (coffee) |
|
- | |||||
| 20 | 989876 | Hole Plug (3) (golden Harvest) |
|
- | |||||
| 20 | 1100176 | Hole Plug (3) (toast) |
|
- | |||||
| 20 | 989195 | Hole Plug (3) (almond) |
|
- | |||||
| 21 | 940087 | Hole Plug (2) (almond) |
|
- | |||||
| 21 | 940086 | Hole Plug (2) (white) |
|
- | |||||
| 21 | 940088 | Hole Plug (2) (coffee) |
|
- | |||||
| 21 | 940089 | Hole Plug (2) (golden Harvest) |
|
- | |||||
| 21 | 1100687 | Hole Plug (2) (platinum) |
|
- | |||||
| 21 | 1100688 | Hole Plug (2) (toast) |
|
- | |||||
| 22 | 943626 | Cabinet Wiring Assembly |
|
- |
