SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts

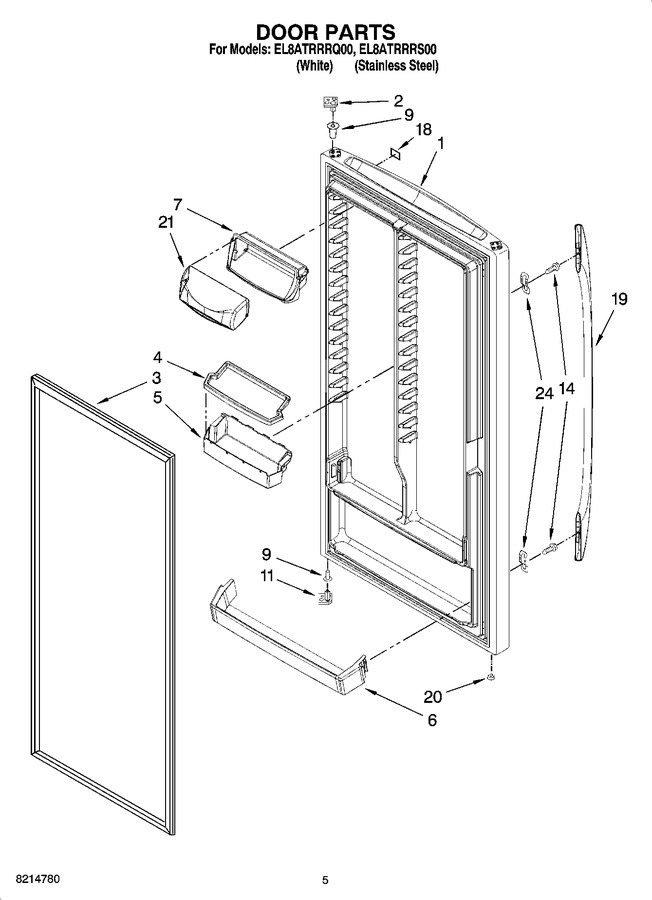

03 - Door Parts


04 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8210413		Exterior Door (includes Interior Liner) (white)				$ 419.25
1	8210414		Exterior Door (includes Interior Liner) (stainless Steel)				$ 346.36
2	8210401		Stop, Door (white)		Appelez-nous	-
2	8210402		Stop, Door (black)				$ 147.59
3	WP4-65151-002		Gasket (white)   (Replaces: 8210339)				$ 339.42
3	8210343		Gasket (black)				$ 347.13
4	8210383		Cover, Bin				$ 35.04
5	8210380		Bin, Door		Appelez-nous	-
6	8210379		Rail, Door (lower)		Appelez-nous	-
7	8210381		Housing, Dairy Compartment		Appelez-nous	-
9	4390869		Bushing, Lower Hinge (black)		Appelez-nous	-
9	4390731		Bushing, Lower Hinge (white)				$ 19.69
11	8210400		Stop, Door (bottom) (natural)		Appelez-nous	-
14	WP489491		Screw   (Replaces: 489491)				$ 6.57
18	4390656		Nameplate (white)		Appelez-nous	-
18	WP2213265		Nameplate (black)   (Replaces: 4390758)			Immediately	$ 83.86
19	2313345W		Handle (white)		Appelez-nous	-
19	W10187086		Handle (black)   (Replaces: 2313345B)				$ 357.18
20	3-24898-007		Vent Plug   (Replaces: 4357067)				$ 10.21
21	8210382		Door, Compartment		Appelez-nous	-
24	WP2255411		Clip, Handle   (Replaces: 2255411)				$ 32.90

    View Diagram in Separate Window       Print Part List
