SELECT A DIAGRAM

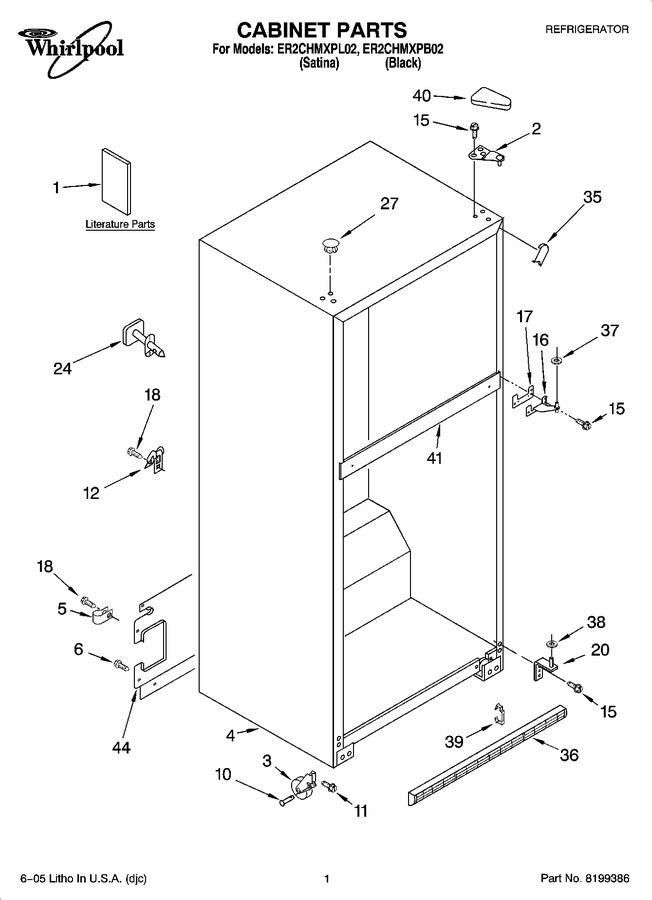

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Icemaker Parts


06 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Following May Be Purchased Do-it-yourself Repair Manuals		Appelez-nous	-
1	677969		Do-it-yourself Manual Ref./frz.				$ 30.30
1	2314273		Service & Wiring Sheet		Appelez-nous	-
1	2302191		Energy Label		Appelez-nous	-
1	2302037		Use & Care Guide		Appelez-nous	-
1	2225623		Modular Icemaker Service Sheet		Appelez-nous	-
1	2225413		Customer Instructions		Appelez-nous	-
2	WP2261963		Hinge (top)   (Replaces: 2189410)			Immediately	$ 107.48
3	WP2166108		Roller-front (2)   (Replaces: 2166108)			Immediately	$ 31.28
4	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
5	WP488366		Clamp, Tube (water Supply Line)   (Replaces: 489385)				$ 10.73
6	WP489427		Screw   (Replaces: 489427)				$ 7.06
10	W11594405		Rivet   (Replaces: 2179826)			Immediately	$ 17.21
11	WP3400504		Screw   (Replaces: 3400504)				$ 6.80
12	549193		Clamp-cord				$ 12.65
15	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
16	WP2254618		Hinge, Center   (Replaces: 2183972)			Immediately	$ 82.82
17	WP2183854		Shim, Hinge Center   (Replaces: 2183854)				$ 10.29
18	WP489464		Screw   (Replaces: 8281265)			Immediately	$ 7.54
20	WP2254473		Hinge Butt   (Replaces: 2254473)				$ 8.35
24	N/A		Fitting, Water Tube (not Serviced)		Appelez-nous	-
27	WP2183998		Hole Plug (6)   (Replaces: 2183998)				$ 17.11
35	W11252732		Corner Filler (2)   (Replaces: 2201017)				$ 11.76
36	2254315		Grille (includes Illus. 39)				$ 41.54
37	WP489467		Washer   (Replaces: 489341)			Immediately	$ 10.28
38	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.67
39	2189356		Clip-grille (2)				$ 5.70
40	WP2213363		Cover, Hinge   (Replaces: 2213363)			Immediately	$ 17.21
41	N/A		Rail Center (not Serviced)		Appelez-nous	-
44	2302358		Cover, Unit				$ 57.60

    View Diagram in Separate Window       Print Part List
