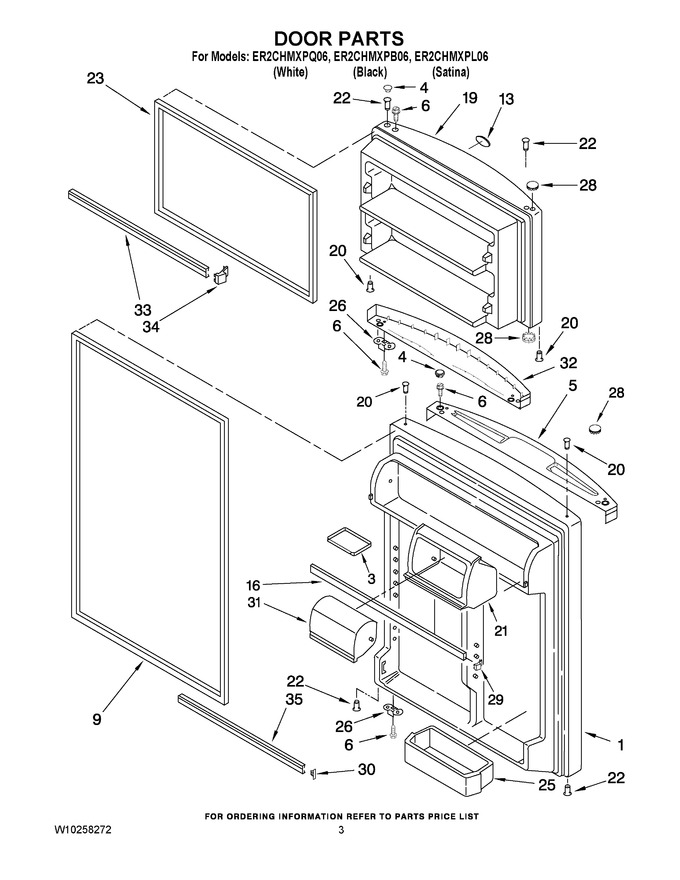

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2218505 | Refrigerator Door (includes Illus. 9 & 22) (satina) |
|
- | |||||
| 1 | 2204867 | Refrigerator Door (includes Illus. 9 & 22) (black) |
|
- | |||||
| 1 | 2202519 | Refrigerator Door (includes Illus. 9 & 22) (white) |
|
- | |||||
| 3 | 2195388 | Tray, Door |
|
- | |||||
| 4 | 2204837 | Hole-plug Endcap (white) |
|
$ 27.77 | |||||
| 4 | 2204840 | Hole-plug Endcap (black) |
|
$ 33.23 | |||||
| 5 | 2212624 | Endcap, Handle-rc (white) |
|
- | |||||
| 5 | 2221644 | Endcap Handle (rc) (black) |
|
$ 65.71 | |||||
| 6 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 9 | 2177311 | Door Gasket, Rc Magnetic (black) (Replaces: 2202882) |
|
$ 297.86 | |||||
| 9 | 2159061 | Door Gasket, Rc Magnetic (mist Beige) (Replaces: 2202875) |
|
Immediately | $ 165.30 | ||||
| 13 | WP2213265 | Nameplate (Replaces: 2262218) |
|
Immediately | $ 83.86 | ||||
| 16 | 2159306 | Trim, Door Shelf |
|
$ 53.20 | |||||
| 19 | 2218508 | Freezer Door (includes Illus. 22 & 23) (satina) |
|
- | |||||
| 19 | 2202520 | Freezer Door (includes Illus. 22 & 23) (white) |
|
- | |||||
| 19 | 2204856 | Freezer Door (includes Illus. 22 & 23) (black) |
|
- | |||||
| 20 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.33 | |||||
| 21 | 2210566 | Housing Compartment |
|
$ 65.25 | |||||
| 22 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.80 | |||||
| 23 | 2177310 | Door Gasket, Fc Magnetic (black) (Replaces: 2214969) |
|
$ 301.78 | |||||
| 23 | 2159060 | Door Gasket, Fc Magnetic (mist Beige) (Replaces: 2214967) |
|
$ 302.41 | |||||
| 25 | WP2204813 | Bin, Door Shelf (Replaces: 2204813) |
|
Immediately | $ 73.08 | ||||
| 26 | W11745278 | Bracket, Door Stop (2) (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 28 | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 21.79 | |||||
| 28 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 29 | 2177340 | Plug-trim |
|
$ 5.84 | |||||
| 30 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 11.51 | ||||
| 31 | 2218109 | Door, Compartment |
|
$ 33.66 | |||||
| 32 | 2225108 | Endcap Handle (fc) (black) |
|
$ 56.49 | |||||
| 32 | 2225094 | Endcap, Handle-fc (white) |
|
- | |||||
| 33 | 2195947 | Trim-door (2) |
|
$ 50.94 | |||||
| 34 | WP2195916K | Endcap (4) (Replaces: 2195916) |
|
Immediately | $ 11.86 | ||||
| 35 | WPW10421486 | Trim, Door (Replaces: 2195948) |
|
$ 103.27 |
