SELECT A DIAGRAM

01 - Cabinet Parts

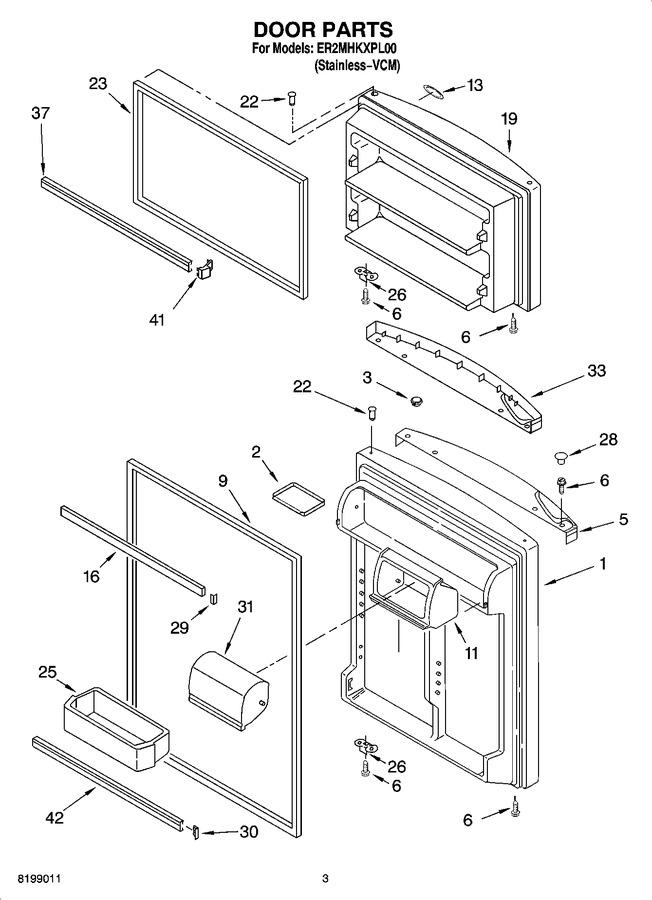

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2218505		Refrigerator Door (includes 9 & 22) (stainless-vcm)		Appelez-nous	-
2	2195388		Tray, Door		Appelez-nous	-
3	2204840		Hole Plug, Endcap				$ 33.23
5	2221644		Endcap Handle (rc) (black)				$ 65.71
6	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.43
9	2177311		Door Gasket, Magnetic   (Replaces: 2202882)				$ 297.86
11	2210566		Housing Compartment				$ 65.25
13	WP2213265		Nameplate   (Replaces: 2262218)			Immediately	$ 83.86
16	2159306		Trim, Door Shelf				$ 53.20
19	2218508		Freezer Door (includes 22 & 23) (stainless-vcm)		Appelez-nous	-
22	WP2183003		Thimble   (Replaces: 2183003)				$ 7.33
23	2177310		Door Gasket, Magnetic   (Replaces: 2214969)				$ 301.78
25	WP2204813		Bin, Door Shelf   (Replaces: 2204813)			Immediately	$ 73.08
26	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 12.03
28	WP2212651		Hole Plug (black)   (Replaces: 2212651)				$ 21.79
29	2177340		Plug-trim				$ 5.84
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 11.51
31	2218109		Compartment Door				$ 33.66
33	2225108		Endcap Handle (fc) (black)				$ 56.49
37	2195947		Trim-door (2)				$ 50.94
41	WP2195916K		Endcap, Trim (4)   (Replaces: 2195916)			Immediately	$ 11.86
42	WPW10421486		Trim, Door   (Replaces: 2195948)				$ 103.27
