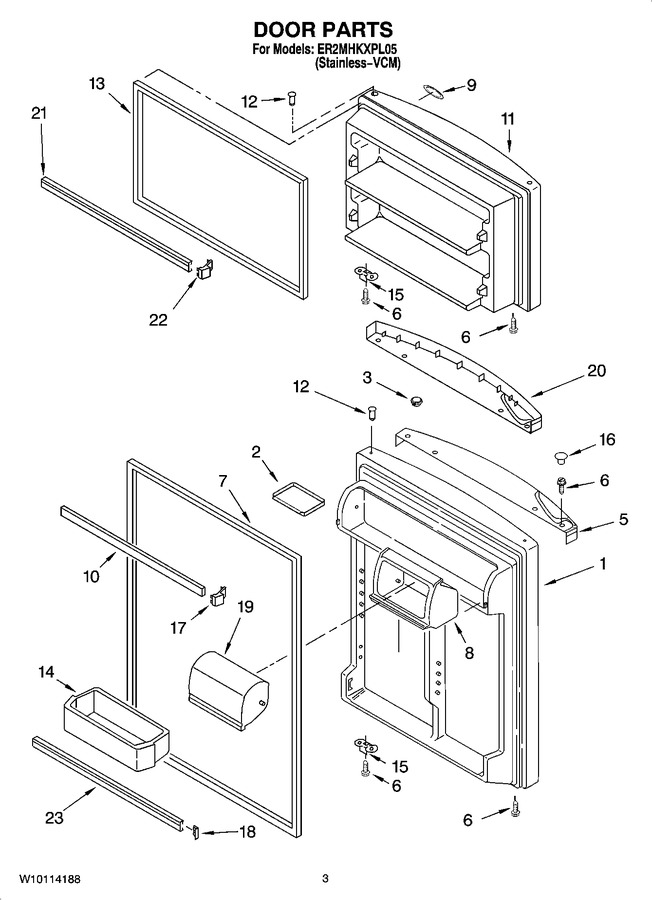

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2218505		Refrigerator Door (includes Illus. 7 & 12)		Appelez-nous	-
2	2195388		Tray, Door		Appelez-nous	-
3	2204840		Hole Plug, Endcap				$ 33.23
5	2221644		Endcap, Handle (refrigerator)				$ 65.71
6	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.43
7	2177311		Door Gasket, Magnetic   (Replaces: 2202882)				$ 297.86
8	2210566		Housing Compartment				$ 65.25
9	WP2213265		Nameplate   (Replaces: 2262218)			Immediately	$ 83.86
10	2159306		Trim, Door Shelf				$ 53.20
11	2218508		Freezer Door (includes Illus. 12 & 13)		Appelez-nous	-
12	WP2183003		Thimble   (Replaces: 2183003)				$ 7.33
13	2177310		Door Gasket, Magnetic   (Replaces: 2214969)				$ 301.78
14	WP2204813		Bin, Door Shelf   (Replaces: 2204813)			Immediately	$ 73.08
15	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 12.03
16	WP2212651		Hole Plug   (Replaces: 2212651)				$ 21.79
17	2177340		Endcap, Trim (2)				$ 5.84
18	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 11.51
19	2218109		Compartment Door				$ 33.66
20	2225108		Endcap, Handle (freezer)				$ 56.49
21	2195947		Trim-door (2)				$ 50.94
22	WP2195916K		Endcap, Trim (4)   (Replaces: 2195916)			Immediately	$ 11.86
23	WPW10421486		Trim, Door   (Replaces: 2195948)				$ 103.27
