SELECT A DIAGRAM

01 - Cabinet, Literature

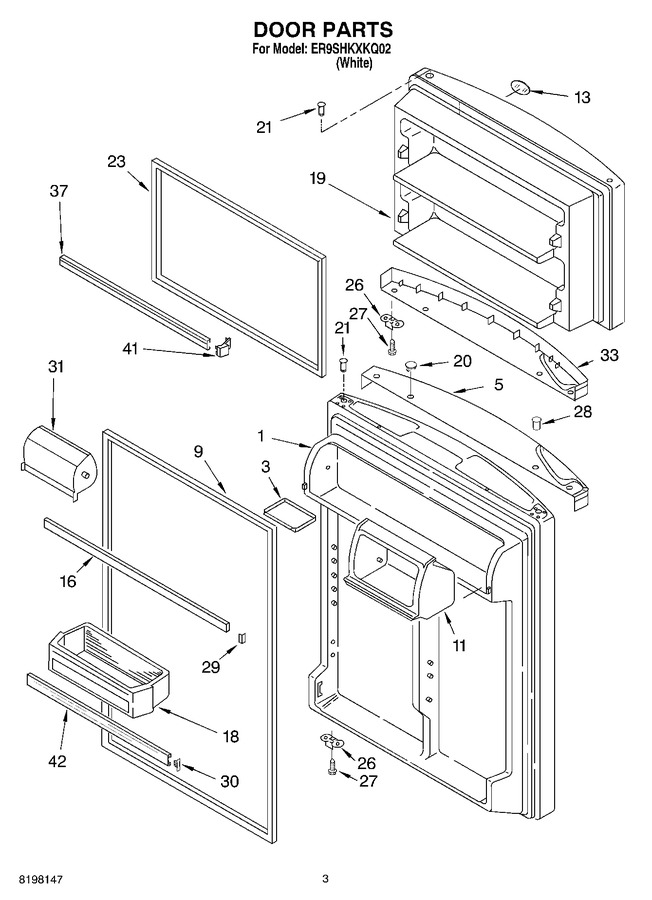

02 - Door


03 - Liner


04 - Unit


05 - Shelf, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2205395		Refrigerator Door (includes No.9 & No.21) (white)		Appelez-nous	-
3	2159302		Tray, Door				$ 42.08
5	2212689		Handle (white)				$ 24.95
9	2159057		Door Gasket, Magnetic (mist Beige)   (Replaces: 2202874)			Immediately	$ 168.76
11	2210566		Housing Comp.				$ 65.25
13	WP2213265		Nameplate (white)   (Replaces: 2213263)			Immediately	$ 83.86
16	2159312		Trim-door Shelf				$ 47.75
18	2204811		Door Bin (3)				$ 35.90
19	2205399		Freezer Door Panel (includes 21 & 23) (white)		Appelez-nous	-
20	2204837		Hole Plug (white)				$ 27.77
21	WP2183003		Thimble   (Replaces: 2183003)				$ 7.33
23	2159327		Door Gasket, Magnetic (mist Beige)   (Replaces: 2214966)			Immediately	$ 148.12
26	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 12.03
27	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.43
28	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 7.37
29	2177340		Plug-trim				$ 5.84
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 11.51
31	2218109		Compartment Door				$ 33.66
33	2225090		Handle, F.c. (white)		Appelez-nous	-
37	2195946		Trim-door (2)				$ 46.58
41	WP2195916K		Endcap (4)   (Replaces: 2195916)			Immediately	$ 11.86
42	WPW10421484		Trim, Door   (Replaces: 2195949)				$ 122.63

    View Diagram in Separate Window       Print Part List
