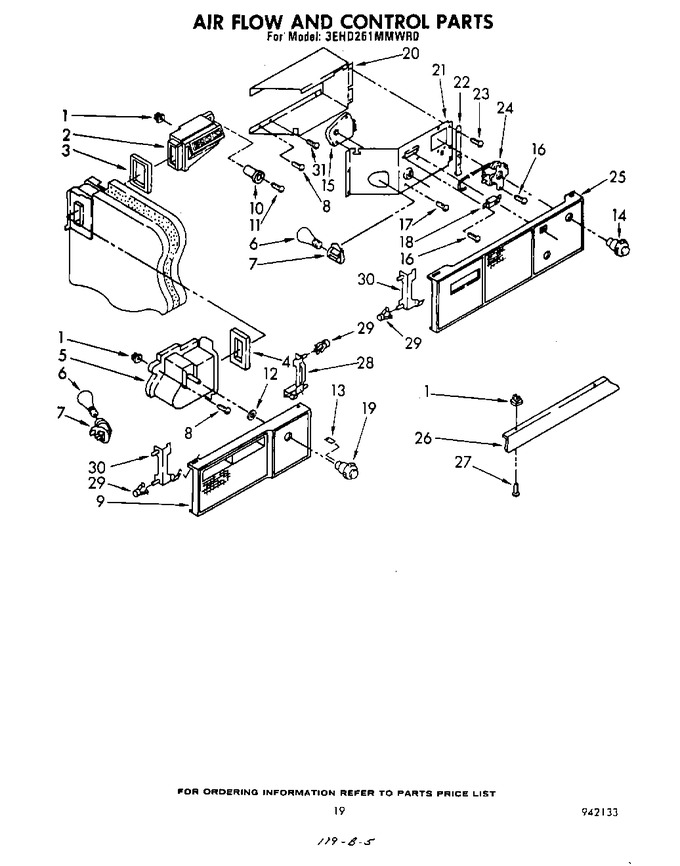

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 842339 | Grommet |
|
- | |||||
| 2 | 991158 | Air Diffuser |
|
- | |||||
| 3 | 842394 | Gasket Diffuser |
|
- | |||||
| 4 | 844871 | Gasket Scoop |
|
- | |||||
| 5 | 841269 | Air Scoop (includes Illus. 4) |
|
- | |||||
| 6 | WP67002552 | Bulb (Replaces: 851682) |
|
Immediately | $ 12.34 | ||||
| 7 | 4387478 | Socket, Light (4) (Replaces: 851067) |
|
Immediately | $ 115.67 | ||||
| 8 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 9 | 985539 | Lens, Light |
|
- | |||||
| 10 | 836667 | Spacer |
|
- | |||||
| 11 | 488357 | Screw, 8 X 1-1/4 |
|
- | |||||
| 12 | 516847 | Retainer, Damper |
|
- | |||||
| 13 | 837444 | Knob, Retainer |
|
- | |||||
| 14 | 836482 | Knob, Temperature |
|
- | |||||
| 15 | 851684 | Timer, Defrost (8 Hour) |
|
- | |||||
| 16 | WP489128 | Screw, 8-32 X 3/8 (Replaces: 488500) |
|
$ 11.40 | |||||
| 17 | WP3388228 | Screw, 6-20 X 3/8 (2) (Replaces: 488911) |
|
$ 7.30 | |||||
| 18 | 987076 | Power Miser, Switch |
|
- | |||||
| 19 | 837445 | Switch, Knob (includes Illus. 13) |
|
- | |||||
| 20 | 984550 | Box, Control |
|
- | |||||
| 21 | 984573 | Cover, Control Box |
|
- | |||||
| 22 | 984552 | Support, Light Lens (r.s.) |
|
- | |||||
| 23 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 24 | GC506 | Thermostat & Barrier (Replaces: 989566) |
|
$ 50.44 | |||||
| 25 | 936966 | Lens, Light |
|
- | |||||
| 26 | SM999 | Baffle, Liner (Replaces: 983369) |
|
Immediately | $ 30.26 | ||||
| 27 | WP489069 | Screw, 8 X 1/2 (Replaces: 488772) |
|
Immediately | $ 8.40 | ||||
| 28 | 842355 | Support, Light Lens (r.s.) |
|
- | |||||
| 29 | 843945 | Clip, Tubular (6) |
|
- | |||||
| 30 | 842356 | Support, Light Lens (l.s.) (2) |
|
- | |||||
| 31 | 488474 | Screw, 8-32 X 3/8 (2) |
|
- |
