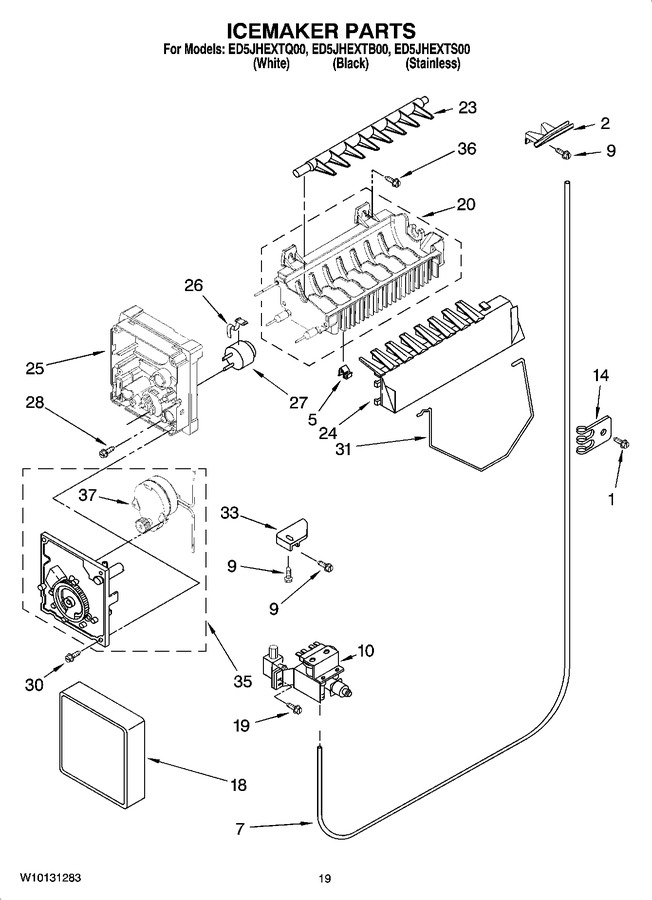

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
2	W11505385		Chute, Water   (Replaces: 2209774)				$ 35.32
5	WP628379		Clip, Fuse   (Replaces: 628379)				$ 11.10
7	W10823511		Tube, Water   (Replaces: 2223137)			Immediately	$ 32.41
9	WP489478		Screw   (Replaces: 489478)				$ 8.18
10	W10408179		Filter Valve Asm   (Replaces: 2304757)			Immediately	$ 104.71
14	WP488366		Tube Clip   (Replaces: 489385)				$ 11.92
18	WPW10289690		Cover   (Replaces: 2174155)			Immediately	$ 8.82
19	WPW10141625		Screw   (Replaces: 488649)				$ 22.22
20	WPW10190929		Mold & Heater Assembly (also Order 542638)   (Replaces: 628228)				$ 233.52
23	WP627843		Ejector   (Replaces: 627843)				$ 87.78
24	WP2182124		Ice Striper   (Replaces: 2182124)				$ 90.35
25	WP2195914		Support   (Replaces: 2194712)				$ 109.80
26	WP2315522		Retainer,thermostat   (Replaces: 2315522)				$ 11.60
27	WP627985		Thermostat (also Order 542369 Cement Alumilastic)   (Replaces: 628397)				$ 114.64
28	8533917		Screw				$ 14.04
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
31	W11807379		Shut Off Arm   (Replaces: 2304354)			Immediately	$ 63.21
33	W11500948		Bracket   (Replaces: 628320)			Immediately	$ 33.78
35	8201515		Module Assembly (includes 37)   (Replaces: 626678)			Immediately	$ 159.78
36	WP488163		Screw   (Replaces: 488208)				$ 7.92
37	WP90767		Screw   (Replaces: JA99715773)			Immediately	$ 8.25
100	WPW10190965		Complete Icemaker Assembly   (Replaces: 626662)			Immediately	$ 109.65
NI	833938		Kit, Terminal Connector				$ 8.47
NI	542639		Cement, Alumilastic (1-1/4 Oz.)		Appelez-nous	-
NI	WP542638		Grease, Silicone (1/2 Oz)   (Replaces: 542638)			Immediately	$ 12.78
NI	WP503695		Cork Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
NI	WP505587		Sealer, Mastic (1 Qt.)   (Replaces: 505587)			Immediately	$ 182.65
NI	72032		Paint, Touch-up (1/2oz.) (black)			Immediately	$ 18.69
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 12.30
NI	350942		Paint, Pressurized Spray (12 Oz) (primer, White)				$ 94.14
NI	285006		Paint, Pressurized Spray(12 Oz.) (black)   (Replaces: 350939)				$ 59.89
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 40.12
NI	8171357		Paint, Pressurized Spray (12 Oz.) (graphite)				$ 86.43
NI	80051		Paint, Touch-up (1/2oz.) (graphite)				$ 7.64
NI	799340		Paint, Bulk (1 Qt.) (black)		Appelez-nous	-
NI	799344		Paint, Bulk (1 Qt.) (white)				$ 237.46
NI	8171358		Paint, Bulk (1 Qt.) (graphite)		Appelez-nous	-
NI	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
NI	479502		Tape, Vinyl(3/4 X 108``)				$ 66.77
NI	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
NI	1117510		Torx Key				$ 5.84
