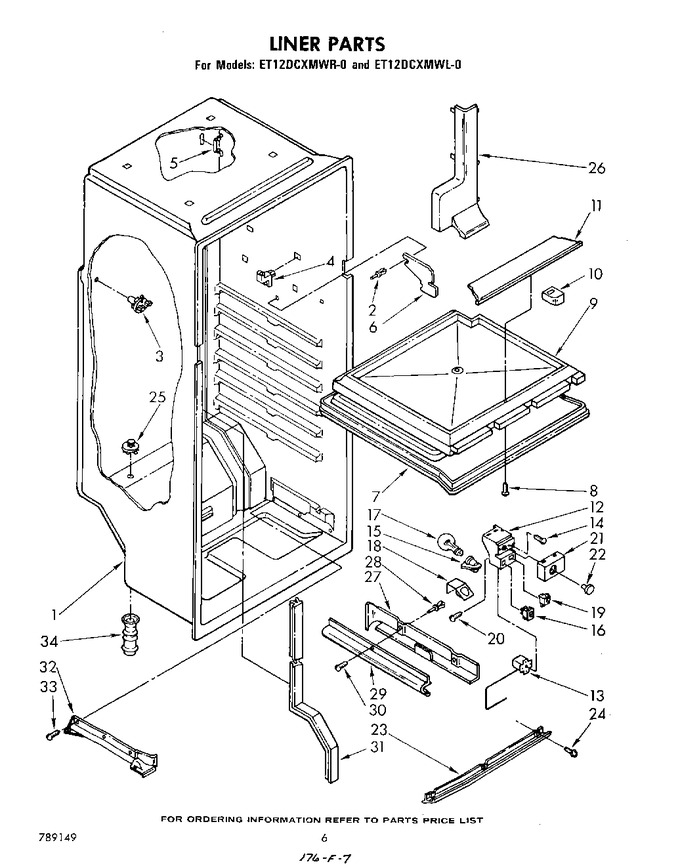

02 - Door
03 - Cabinet
04 - Liner , Lit/optional
05 - Unit
06 - Shelf
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 939962 | Plastic Rivet (2) |
|
$ 12.42 | |||||
| 3 | 939989 | Screw Anchor (4) |
|
- | |||||
| 4 | 939203 | Support Stud (4) |
|
- | |||||
| 5 | 533998 | Speed Clip (3) |
|
- | |||||
| 6 | 937228 | Electric Shield |
|
- | |||||
| 7 | 937014 | Bottom, Compartment Separator |
|
- | |||||
| 8 | WP488163 | Screw, 8 X 13/16 (2) (Replaces: 488208) |
|
$ 7.92 | |||||
| 9 | 937015 | Insulation, Compartment Separator |
|
- | |||||
| 10 | 940070 | Insulation, Crossover Tube |
|
- | |||||
| 11 | 937016 | Breaker Trim, Mullion |
|
- | |||||
| 12 | 939089 | Control Box |
|
- | |||||
| 13 | 1100988 | Thermostat |
|
- | |||||
| 14 | WP489128 | Screw, 8-32 X 3/8 (2) (Replaces: 488500) |
|
$ 11.40 | |||||
| 15 | 4387478 | Socket Assembly (Replaces: 851067) |
|
Immediately | $ 115.67 | ||||
| 16 | 936115 | Switch, Power Miser |
|
- | |||||
| 17 | W11679940 | Light Bulb (Replaces: 946059) |
|
Immediately | $ 11.30 | ||||
| 18 | 937230 | Light Shield |
|
- | |||||
| 19 | W11384469 | Rocker Arm Switch (Replaces: 549702) |
|
Immediately | $ 39.09 | ||||
| 20 | WP489069 | Screw, 8 X 1/2 (Replaces: 488874) |
|
Immediately | $ 8.40 | ||||
| 21 | 937028 | Cover, Control Box |
|
- | |||||
| 22 | 845233 | Control Knob |
|
- | |||||
| 23 | 937022 | Drain Trough |
|
- | |||||
| 24 | WP488729 | Screw, 8 X 1/2 (3) (Replaces: 488320) |
|
Immediately | $ 8.28 | ||||
| 25 | 934607 | Drain, Ferrule Cap |
|
- | |||||
| 26 | 939933 | Tube Cover |
|
- | |||||
| 27 | 939957 | Wire Cover (rear) |
|
- | |||||
| 28 | 939961 | Plastic, Rivet |
|
- | |||||
| 29 | 939960 | Wire Cover (front) |
|
- | |||||
| 30 | 486214 | Screw 8-15 X 1/2 |
|
- | |||||
| 31 | 939934 | Tube Entry Cover (rear) |
|
- | |||||
| 32 | 941776 | Tube Entry Cover (bottom) |
|
- | |||||
| 33 | W11693756 | Screw, 8-15 X 5/8 (Replaces: 487042) |
|
Immediately | $ 14.76 | ||||
| 34 | 789149 | List, Parts |
|
- | |||||
| 34 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | ||||
| 34 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | ||||
| 34 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | |||||
| 34 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 | |||||
| 34 | 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 243.14 | |||||
| 34 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 34 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 34 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 34 | 842256 | Fitting, Drain |
|
- | |||||
| 34 | 833938 | Kit, Terminal Connector |
|
$ 8.47 | |||||
| 34 | 946677 | Service & Wiring Sheet |
|
- | |||||
| 34 | 1100093 | Consumer Buy Guide |
|
- | |||||
| 34 | 1100094 | Energy Guide |
|
- | |||||
| 34 | 942261 | Guide, Use & Care |
|
- | |||||
| 34 | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| 34 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 109.25 | |||||
| 34 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 60.28 | |||||
| 34 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | |||||
| 34 | 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | |||||
| 34 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 34 | 799351 | Blend, Thinner (1 Gal.) |
|
- | |||||
| 34 | 261887 | Enamel, Coffee (1 Qt. Uncut) |
|
- | |||||
| 34 | 261889 | Enamel, New Avocado (1 Qt. Uncut) |
|
- | |||||
| 34 | 261891 | Enamel, Harvest Gold (1 Qt. Uncut) |
|
- | |||||
| 34 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 34 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 96.42 | ||||
| 34 | 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | |||||
| 34 | 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 243.14 | |||||
| 34 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 34 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 51.75 | |||||
| 34 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 82.37 | |||||
| 34 | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 34 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
