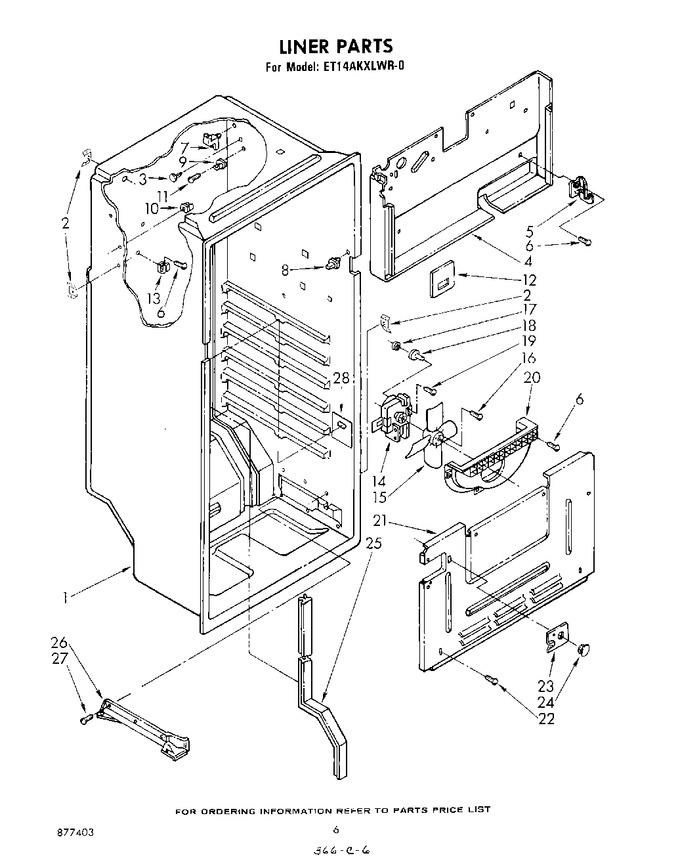

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.09
3	WP941839		Hole, Plug   (Replaces: 941839)				$ 7.23
4	935699		Heat Shield		Appelez-nous	-
5	935700		Evaporator, Support		Appelez-nous	-
6	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
7	939203		Support, Stud		Appelez-nous	-
8	939200		Shelf, Stud		Appelez-nous	-
9	990261		Shelf, Stud Saddle		Appelez-nous	-
10	836492		Shelf Stud, Saddle L.s.		Appelez-nous	-
11	W11693756		Screw, 8-15 X 5/8   (Replaces: 487110)			Immediately	$ 13.28
12	935696		Cover, Air Duct		Appelez-nous	-
13	939050		Bracket, Wire Receptacle		Appelez-nous	-
14	482731		Motor, Fan   (Replaces: 938287)			Immediately	$ 83.12
15	WP1100938		Blade, Fan   (Replaces: 548041)				$ 83.03
16	00487887		Screw, 3-48 X 1/4   (Replaces: 487887)				$ 220.32
17	531933		Grommet				$ 5.70
18	935701		Spacer, Fan Motor		Appelez-nous	-
19	489042		Screw, 8 X 1-1/4		Appelez-nous	-
20	836179		Scroll Fan		Appelez-nous	-
21	935719		Evaporator Cover		Appelez-nous	-
22	WP488729		Screw, 8-15 X 1/2   (Replaces: 488992)			Immediately	$ 7.45
23	937354		Hole Cover		Appelez-nous	-
24	939283		Hole Plug		Appelez-nous	-
25	935704		Cover Tube, Rear		Appelez-nous	-
26	941776		Cover Tube, Bottom		Appelez-nous	-
27	W11693756		Screw, 8-15 X 5/8   (Replaces: 487042)			Immediately	$ 13.28
28	877403		List, Parts		Appelez-nous	-
28	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 11.50
28	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
28	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
28	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 218.83
28	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 218.83
28	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
28	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
28	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
28	946207		Shield, Wiring		Appelez-nous	-
28	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
28	833938		Kit, Terminal Connector Icemaker Eckmf28				$ 7.62
28	942291		Guide, Use & Care		Appelez-nous	-
28	942292		Consumer Checklist		Appelez-nous	-
28	943465		Service & Wiring Sheet		Appelez-nous	-
28	943002		Energy Label		Appelez-nous	-
28	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
28	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
28	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
28	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
28	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
28	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
28	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
28	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
28	261889		Enamel, New Avocado (1 Qt. Uncut)		Appelez-nous	-
28	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
28	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
28	212643		Sealer, Gum (4 Feet)			Immediately	$ 86.78
28	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
28	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
28	511881		Lacquer, Aluminum (12 Oz. Spray Can)				$ 278.35
28	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
28	606755		Bag, Insulation (36-5/8`` X 46``)				$ 74.13
28	484310		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 48.61
	350942		Primer White (13 Oz. Spray Can)				$ 84.73
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	261888		Xenamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
	261886		Xenamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 53.90
