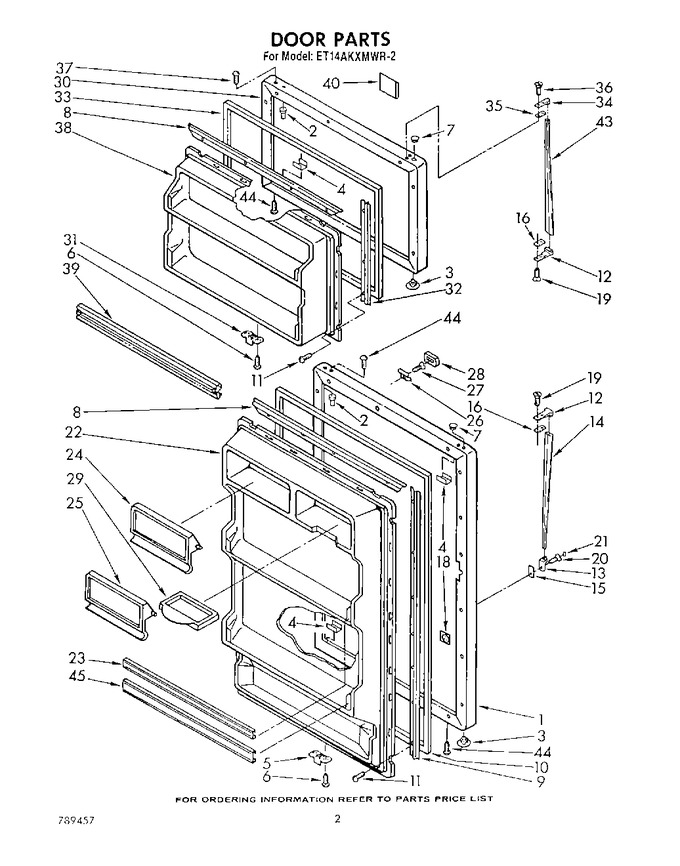

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	944099		Exterior, Door Panel (almond)		Appelez-nous	-
1	1100226		Exterior, Door Panel (platinum)		Appelez-nous	-
1	1100225		Exterior, Door Panel (toast)		Appelez-nous	-
1	944095		Exterior, Door Panel (white)		Appelez-nous	-
1	944097		Exterior, Door Panel (golden Harvest)		Appelez-nous	-
2	509929		Cap, Hinge Sleeve		Appelez-nous	-
3	534927		Hole Plug		Appelez-nous	-
4	943185		Tap Plate		Appelez-nous	-
5	944036		Bracket, Door Stop		Appelez-nous	-
6	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	488930		Screw (repair)		Appelez-nous	-
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	1100189		Hole Plug (platinum)		Appelez-nous	-
7	1100188		Hole Plug (toast)		Appelez-nous	-
7	989196		Hole Plug (almond)		Appelez-nous	-
7	WP2212648		Hole Plug (golden Harvest)   (Replaces: 989893)			Immediately	$ 8.19
8	935759		Retainer Gasket Top & Bottom		Appelez-nous	-
9	935760		Retainer Gasket Side		Appelez-nous	-
10	2188445A		Door Gasket, Magnetic   (Replaces: 935761)				$ 197.35
11	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
11	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
12	943182		Handle End		Appelez-nous	-
13	WP2183139		Handle, End   (Replaces: 983542)			Immediately	$ 51.98
14	1109166		Handle Center (for Platinum Model Only)		Appelez-nous	-
14	1106189		Handle, Center		Appelez-nous	-
15	992872		Shim, Handle End		Appelez-nous	-
16	943188		Spacer, Handle End				$ 7.80
18	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.88
19	488923		Screw (repair)		Appelez-nous	-
19	WP488920		Screw, 8 X 5/8   (Replaces: 488920)				$ 7.98
20	WP488729		Screw, 8 X 1/2   (Replaces: 487875)			Immediately	$ 8.28
21	WP1101634		Screw Cover, Handle   (Replaces: 981182)				$ 9.68
22	1100127		Interior Door Panel		Appelez-nous	-
23	1100102		Trim, Interior Door		Appelez-nous	-
24	1110097		Door, Utility		Appelez-nous	-
25	1110096		Door, Butter		Appelez-nous	-
26	843213		Clip, Medallion		Appelez-nous	-
27	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
28	989903		Medallion (golden Harvest)		Appelez-nous	-
28	848382		Medallion (white)		Appelez-nous	-
28	989904		Medallion (almond)		Appelez-nous	-
28	1100195		Medallion (platinum)		Appelez-nous	-
28	1100194		Medallion (toast)		Appelez-nous	-
29	520747		Tray, Butter		Appelez-nous	-
30	944101		Exterior Door Panel (freezer) (white)		Appelez-nous	-
30	944103		Exterior Door Panel (freezer) (golden Harvest)		Appelez-nous	-
30	944105		Exterior Door Panel (freezer) (almond)		Appelez-nous	-
30	1100227		Exterior Door Panel (freezer) (toast)		Appelez-nous	-
30	1100228		Exterior Door Panel (freezer) (platinum)		Appelez-nous	-
31	944035		Bracket, Door Stop		Appelez-nous	-
32	935775		Retainer Gasket, Side		Appelez-nous	-
33	WP2188456A		Door Gasket, Magnetic   (Replaces: 937001)				$ 258.49
34	WP2191882		Handle End,   (Replaces: 943184)				$ 62.77
35	943187		Shim, Handle				$ 25.14
36	WP488920		Screw, 6-32 X 5/8   (Replaces: 488926)				$ 7.98
37	489112		Screw, 6-32 X 1/2		Appelez-nous	-
38	1100256		Interior Door Panel (freezer)		Appelez-nous	-
39	1100116		Trim, Door Shelf		Appelez-nous	-
40	945118		Nameplate		Appelez-nous	-
40	1110077		Nameplate (for Platinum Model Only)		Appelez-nous	-
43	1109171		Handle, Center (for Platinum Model Only)		Appelez-nous	-
43	1106194		Handle, Center		Appelez-nous	-
44	488930		Screw (repair)		Appelez-nous	-
44	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
45	1100103		Trim, Interior Door		Appelez-nous	-
