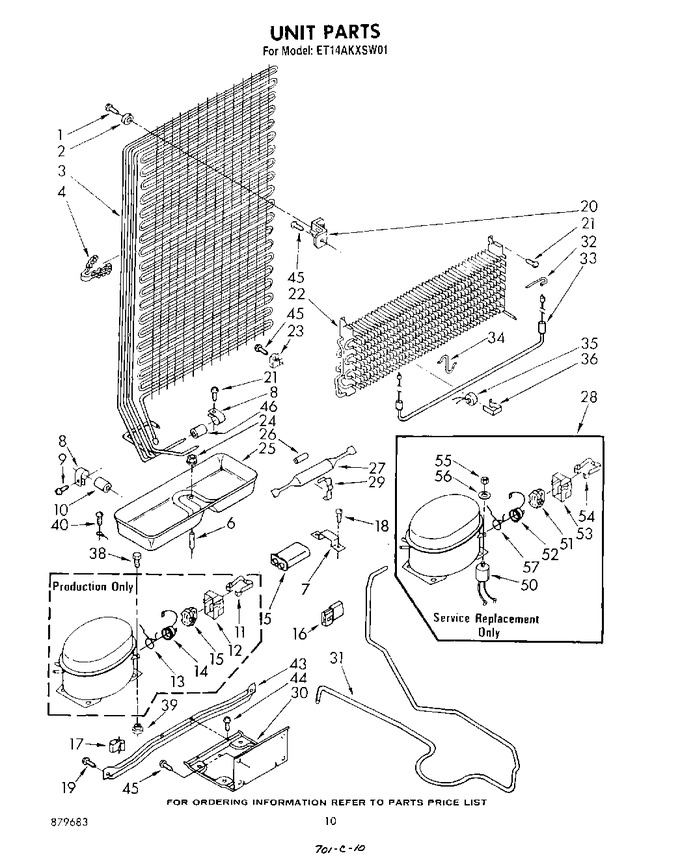

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	487888		Screw, 8 X 7/8 (2)		Appelez-nous	-
2	204349		Bumper (2)		Appelez-nous	-
3	1115428		Condenser & Precooler Assembly		Appelez-nous	-
4	942739		Clip Tube (2)		Appelez-nous	-
5	1118519		Running Capacitor		Appelez-nous	-
6	938275		Spacer		Appelez-nous	-
7	WP43449		Clamp, Capacitor   (Replaces: 1118518)				$ 5.84
8	510716		Tube Clamp		Appelez-nous	-
9	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 20.00
10	1108064		Dampener		Appelez-nous	-
11	938384		Case Spring		Appelez-nous	-
12	1108144		Relay Case		Appelez-nous	-
13	1114272		Overload Protector		Appelez-nous	-
14	1114190		Overload Spring		Appelez-nous	-
15	WP2262181		Relay   (Replaces: 1108143)				$ 115.90
16	934326		Housing Plug		Appelez-nous	-
17	W10812038		Clip, Wire (5)   (Replaces: 939054)		Appelez-nous	-
18	WP489128		Screw, 8-32 X 3/8   (Replaces: 488500)				$ 10.26
19	489340		Screw, 5/16-18 X 5/8 (2)   (Replaces: 488683)		Appelez-nous	-
20	510721		Condenser Bracket (2)		Appelez-nous	-
21	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
22	938360		Evaporator		Appelez-nous	-
23	4386951		Clip, Condenser Mounting (2)   (Replaces: 942852)		Appelez-nous	-
24	285002		Nut   (Replaces: 489153)				$ 11.57
25	935781		Tray, Evaporator		Appelez-nous	-
26	510446		Restrictor Sleeve		Appelez-nous	-
27	W10843121		Dryer   (Replaces: 945424)			Immediately	$ 51.42
28	482981		Compressor (includes Items 50, 51, 52, 53, 54, 55, 56, & 57) (also Order 482801 Installation Kit & 8		Appelez-nous	-
29	547637		Drier Clamp		Appelez-nous	-
30	942860		Unit, Frame		Appelez-nous	-
31	1115429		Exchanger, Heat		Appelez-nous	-
32	850721		Heater Clip		Appelez-nous	-
33	935798		Heater, Defrost		Appelez-nous	-
34	851358		Support, Heater		Appelez-nous	-
35	WP4387489		Defrost Bimetal (alternate)   (Replaces: 937072)				$ 98.09
35	WP4387489		Bi-metal, Defrost   (Replaces: 937071)				$ 98.09
36	513584		Clamp		Appelez-nous	-
38	876811		Screw, 1/4-28 X 1   (Replaces: 489116)				$ 7.01
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.01
40	303776		Screw, 8-32 X 5/16   (Replaces: 488879)		Appelez-nous	-
43	945448		Unit, Rail		Appelez-nous	-
44	WP965173		Screw   (Replaces: 487248)			Immediately	$ 10.68
45	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
46	945593		Dampener		Appelez-nous	-
50	482996		Capacitor		Appelez-nous	-
51	WP2262181		Relay   (Replaces: 1108143)				$ 115.90
52	483037		Overload		Appelez-nous	-
53	1105015		Cover, Terminal		Appelez-nous	-
54	938384		Strap, Cover		Appelez-nous	-
55	489142		Nut		Appelez-nous	-
56	489143		Washer		Appelez-nous	-
57	876764		Valve, Access(3/16``)			Immediately	$ 86.33
57	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
57	978028		Valve, Access (1/2)		Appelez-nous	-
57	978029		Valve Access (5/8``)				$ 93.85
57	978030		Valve, Access (3/4``)				$ 123.53
57	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
57	1114190		Overload Spring		Appelez-nous	-
57	978026		Valve, Access (5/16``)			Immediately	$ 121.04
