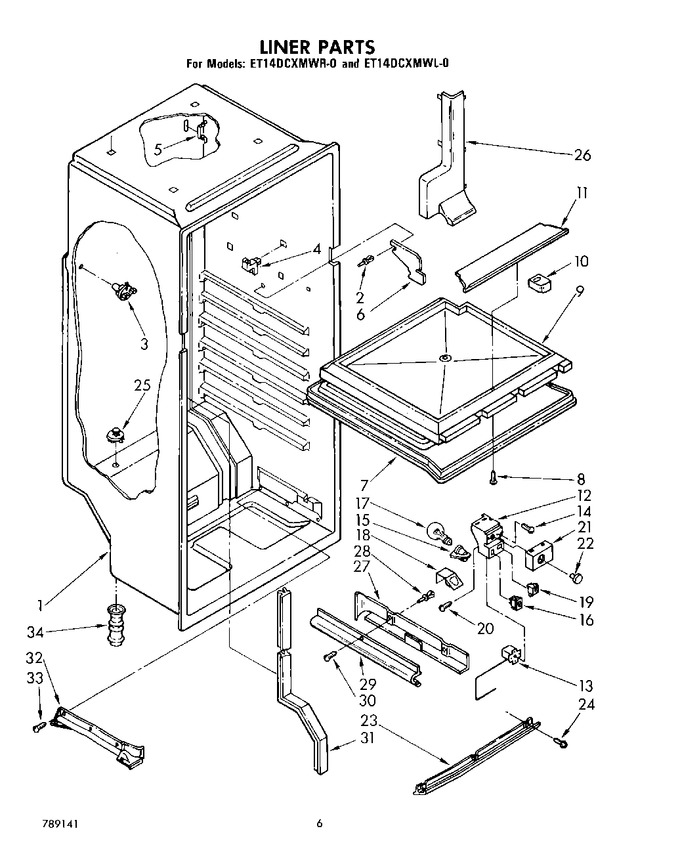

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	939962		Plastic Rivet (2)				$ 12.42
3	939989		Screw Anchor (4)		Appelez-nous	-
4	939203		Support Stud (4)		Appelez-nous	-
5	533998		Speed Clip (3)		Appelez-nous	-
6	937228		Electric Shield		Appelez-nous	-
7	937014		Bottom, Compartment Separator		Appelez-nous	-
8	WP488163		Screw, 8 X 13/16 (2)   (Replaces: 488208)				$ 7.92
9	937015		Insulation, Compartment Separator		Appelez-nous	-
10	940070		Insulation, Crossover Tube		Appelez-nous	-
11	937016		Breaker Trim, Mullion		Appelez-nous	-
12	939089		Control Box		Appelez-nous	-
13	1100988		Thermostat		Appelez-nous	-
14	WP489128		Screw, 8-32 X 3/8 (2)   (Replaces: 488500)				$ 11.40
15	4387478		Socket Assembly   (Replaces: 851067)			Immediately	$ 115.67
16	936115		Switch, Power Miser		Appelez-nous	-
17	W11679940		Light Bulb   (Replaces: 946059)			Immediately	$ 11.30
18	937230		Light Shield		Appelez-nous	-
19	W11384469		Rocker Arm Switch   (Replaces: 549702)			Immediately	$ 39.09
20	WP489069		Screw, 8 X 1/2   (Replaces: 488874)			Immediately	$ 8.40
21	937028		Cover, Control Box		Appelez-nous	-
22	845233		Control Knob		Appelez-nous	-
23	937022		Drain Trough		Appelez-nous	-
24	WP488729		Screw, 8 X 1/2 (3)   (Replaces: 488320)			Immediately	$ 8.28
25	934607		Drain, Ferrule Cap		Appelez-nous	-
26	937021		Tube Cover		Appelez-nous	-
27	939957		Wire Cover (rear)		Appelez-nous	-
28	939961		Plastic, Rivet		Appelez-nous	-
29	939960		Wire Cover (front)		Appelez-nous	-
30	486214		Screw 8-15 X 1/2		Appelez-nous	-
31	937032		Tube Entry Cover (rear)		Appelez-nous	-
32	941776		Tube Entry Cover (bottom)		Appelez-nous	-
33	W11693756		Screw, 8-15 X 5/8   (Replaces: 487042)			Immediately	$ 14.76
34	261890		Xenamel, Harvest Gold (13 Oz. Spray Can)		Appelez-nous	-
34	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
34	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
34	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
34	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
34	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
34	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
34	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
34	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
34	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
34	261889		Enamel, New Avocado (1 Qt. Uncut)		Appelez-nous	-
34	261891		Enamel, Harvest Gold (1 Qt. Uncut)		Appelez-nous	-
34	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
34	261886		Enamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
34	261888		Xenamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
34	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
34	842256		Fitting, Drain		Appelez-nous	-
34	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
34	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
34	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
34	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
34	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
34	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
34	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
34	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
34	833938		Kit, Terminal Connector				$ 8.47
34	946676		Service & Wiring Sheet		Appelez-nous	-
34	1100064		Consumer Buy Guide		Appelez-nous	-
34	1100065		Energy Guide		Appelez-nous	-
34	942261		Guide, Use & Care		Appelez-nous	-
34	789141		List, Parts		Appelez-nous	-
34	350942		Primer White (13 Oz. Spray Can)				$ 94.14
34	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
34	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
34	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
34	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
34	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
34	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
34	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
34	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
34	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
34	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
