SELECT A DIAGRAM

02 - Door


03 - Cabinet


04 - Liner, Lit/optional


05 - Compartment Separator And Control


06 - Unit


07 - Shelf

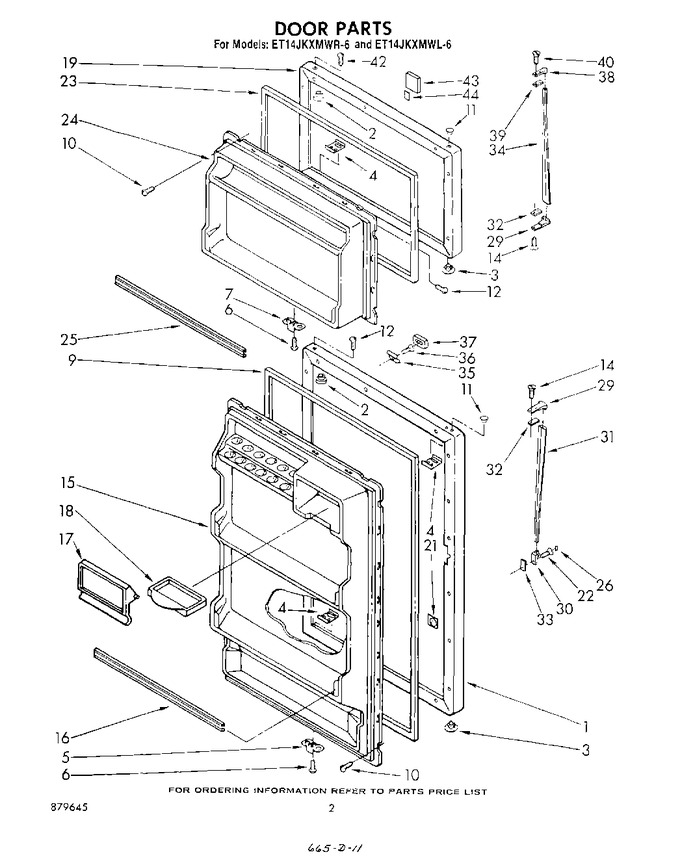

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	944095		Refrigerator Door Panel (white)		Appelez-nous	-
1	944097		Refrigerator Door Panel (golden Harvest)		Appelez-nous	-
1	1100226		Exterior, Door Panel (platinum)		Appelez-nous	-
1	1100225		Exterior, Door Panel (toast)		Appelez-nous	-
1	944099		Refrigerator Door Panel (almond)		Appelez-nous	-
2	509929		Cap, Hinge		Appelez-nous	-
3	1100196		Hole Plug (2) (toast)		Appelez-nous	-
3	989879		Hole Plug (2) (golden Harvest)		Appelez-nous	-
3	989197		Hole Plug (2) (almond)		Appelez-nous	-
3	534927		Hole Plug (2) (white)		Appelez-nous	-
3	1100197		Hole Plug (2) (platinum)		Appelez-nous	-
4	943185		Tap Plate		Appelez-nous	-
5	944036		Bracket, Door Stop		Appelez-nous	-
6	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	488930		Screw (repair)		Appelez-nous	-
7	944035		Bracket, Door Stop		Appelez-nous	-
9	2188445A		Door Gasket, Magnetic   (Replaces: 935761)				$ 197.35
10	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
11	WP2212648		Hole Plug (golden Harvest)   (Replaces: 989893)			Immediately	$ 8.19
11	989196		Hole Plug (almond)		Appelez-nous	-
11	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
11	1100189		Hole Plug (platinum)		Appelez-nous	-
11	1100188		Hole Plug (toast)		Appelez-nous	-
12	WP8281206		Screw, 8-15 X 1/2 (3)   (Replaces: 489028)				$ 8.37
12	488930		Screw (repair)		Appelez-nous	-
14	488923		Screw (repair)		Appelez-nous	-
14	WP488920		Screw, 8 X 5/8   (Replaces: 488920)				$ 7.98
15	1100244		Interior Door Panel (refrigerator)		Appelez-nous	-
16	1110021		Trim, Door Shelf				$ 0.57
17	1106187		Compartment Door, Butter		Appelez-nous	-
18	520747		Tray, Butter		Appelez-nous	-
19	944103		Freezer Door Panel (golden Harvest)		Appelez-nous	-
19	944101		Freezer Door Panel (white)		Appelez-nous	-
19	944105		Freezer Door Panel (almond)		Appelez-nous	-
19	1100227		Freezer Door Panel (toast)		Appelez-nous	-
19	1100228		Freezer Door Panel (platinum)		Appelez-nous	-
21	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
22	WP488729		Screw, 8 X 1/2   (Replaces: 487875)			Immediately	$ 8.28
23	WP2188456A		Door Gasket, Magnetic   (Replaces: 937001)				$ 258.49
24	1100247		Interior Door Panel (freezer)		Appelez-nous	-
25	1110024		Trim, Door Shelf		Appelez-nous	-
26	WP1101634		Screw Cover Handle   (Replaces: 1110059)				$ 9.68
29	819342		Handle End   (Replaces: 1108952)			Immediately	$ 51.31
30	819342		Handle End,   (Replaces: 1110056)			Immediately	$ 51.31
31	1109166		Handle Center (for Platinum Model Only)		Appelez-nous	-
31	1106189		Handle, Center		Appelez-nous	-
32	943188		Spacer, Top				$ 7.80
33	992872		Shim, Bottom		Appelez-nous	-
34	1106194		Handle, Center		Appelez-nous	-
34	1109171		Handle, Center (for Platinum Model Only)		Appelez-nous	-
35	843213		Clip, Medallion		Appelez-nous	-
36	WP488729		Screw, 8 X 1/2   (Replaces: 487875)			Immediately	$ 8.28
37	1100195		Medallion (platinum)		Appelez-nous	-
37	848382		Medallion (white)		Appelez-nous	-
37	989903		Medallion (golden Harvest)		Appelez-nous	-
37	989904		Medallion (almond)		Appelez-nous	-
37	1100194		Medallion (toast)		Appelez-nous	-
38	1108955		Handle End, Top		Appelez-nous	-
39	943187		Shim, Handle				$ 25.14
40	488923		Screw (repair)		Appelez-nous	-
40	WP488920		Screw, 6-32 X 5/8   (Replaces: 488926)				$ 7.98
42	489112		Screw, 6-32 X 1/2		Appelez-nous	-
43	945119		Nameplate		Appelez-nous	-
44	991259		Tape		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
