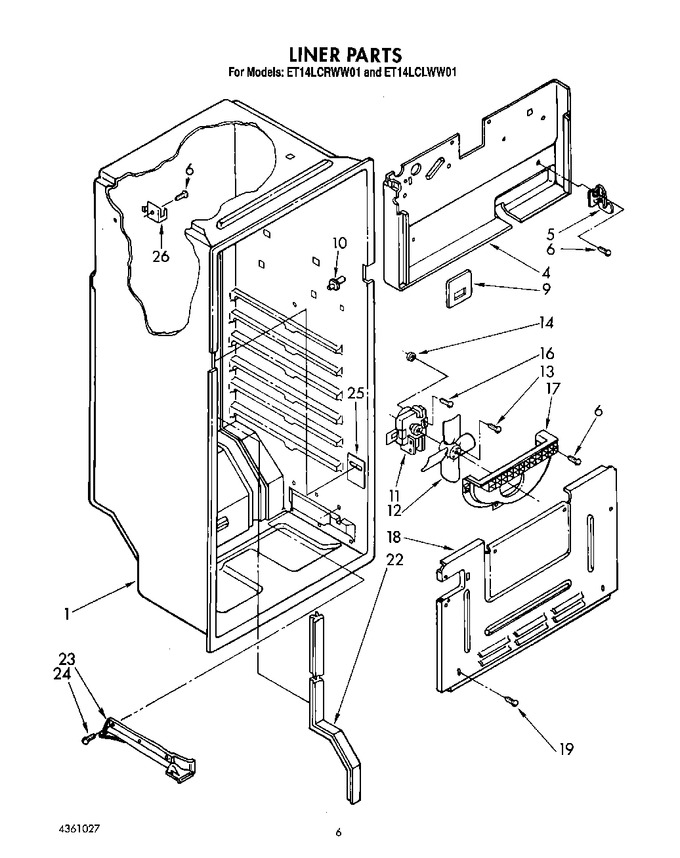

03 - Liner, Lit/optional


04 - Compartment Separator & Control


05 - Unit


06 - Shelf


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
4	935699		Heat Shield		Appelez-nous	-
5	935700		Evaporator, Support		Appelez-nous	-
6	WP489478		Screw   (Replaces: 489242)				$ 7.36
9	935696		Cover, Air Duct		Appelez-nous	-
10	939065		Stud-shelf				$ 7.25
11	482731		Motor, Fan   (Replaces: 1105609)			Immediately	$ 83.12
12	WP1100938		Fan, Blade   (Replaces: 1100938)				$ 83.03
13	00487887		Screw, 3-48 X 1/4   (Replaces: 487887)				$ 220.32
14	531933		Grommet				$ 5.70
16	489168		Screw, 8 X 1-1/4		Appelez-nous	-
17	1122814		Scroll, Fan		Appelez-nous	-
18	1124692		Evaporator Cover		Appelez-nous	-
19	WP488729		Screw (6)   (Replaces: 489196)			Immediately	$ 7.45
22	935704		Cover Tube, Rear		Appelez-nous	-
23	941776		Cover Tube, Bottom		Appelez-nous	-
24	WP488729		Screw   (Replaces: 489196)			Immediately	$ 7.45
25	946207		Shield, Wiring		Appelez-nous	-
26	350942		Primer White (13 Oz. Spray Can)				$ 84.73
26	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
26	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 53.90
26	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
26	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
26	833938		Kit, Terminal Connector				$ 7.62
26	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
26	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
26	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
26	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
26	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 48.61
26	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
26	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
26	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 11.50
26	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
26	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 218.83
26	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 218.83
26	939050		Bracket, Wire Receptacle		Appelez-nous	-
26	212643		Sealer, Gum (4 Feet)			Immediately	$ 86.78
26	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
26	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 218.83
26	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
26	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
26	606755		Bag, Insulation (36-5/8`` X 46``)				$ 74.13
26	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	LIT1127556		Service & Wiring Sheet		Appelez-nous	-
	LIT2148858		Energy Label		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	LIT1124661		Care & Use Guide		Appelez-nous	-
	LIT4361027		List, Parts		Appelez-nous	-
