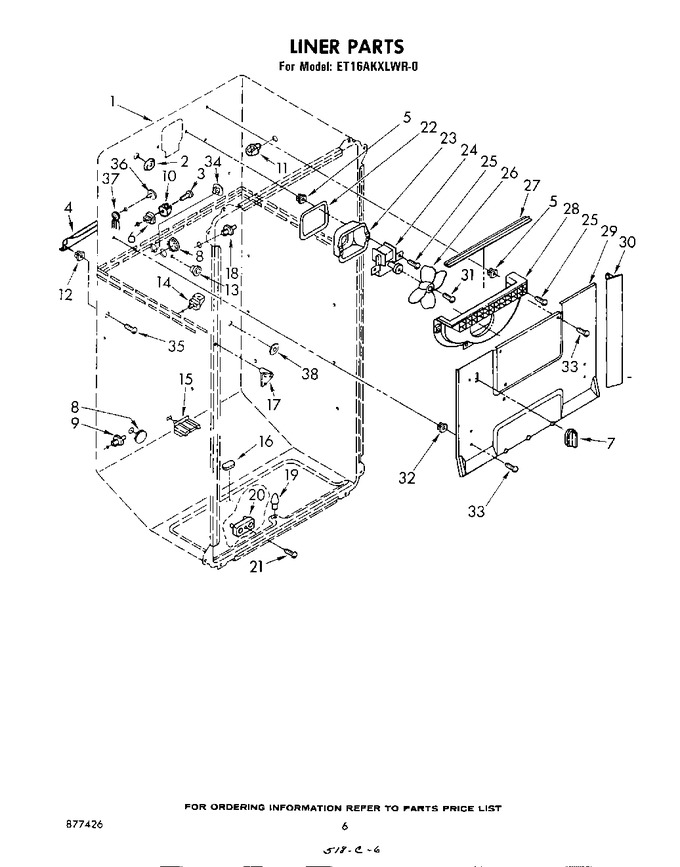

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 534348 | Grommet, Water Inlet |
|
- | |||||
| 3 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487109) |
|
Immediately | $ 8.28 | ||||
| 4 | 985484 | Reinforcement Shelf Ladder (2) |
|
- | |||||
| 5 | 842339 | Grommet |
|
- | |||||
| 6 | 538449 | Grommet |
|
- | |||||
| 7 | 659776 | Hole, Plug |
|
- | |||||
| 8 | 519890 | Hole Plug (5) |
|
- | |||||
| 9 | 536475 | Stud, Crisper Cover (2) |
|
$ 7.28 | |||||
| 10 | 836492 | Stud, Saddle (l.s.) |
|
- | |||||
| 11 | 523263 | Stud, Saddle (r.s.) |
|
- | |||||
| 12 | 509812 | Grommet (3) |
|
- | |||||
| 13 | 851020 | Grommet, Wiring |
|
- | |||||
| 14 | 836374 | Stud, Retainer (4) |
|
- | |||||
| 15 | 836412 | Stud, Crisper Support |
|
- | |||||
| 16 | 835370 | Drain Cover |
|
- | |||||
| 17 | 836040 | Spacer, Liner (2) |
|
- | |||||
| 18 | 529758 | Stud, Shelf (2) |
|
- | |||||
| 19 | 836409 | Post, Grommet |
|
- | |||||
| 20 | 539760 | Spacer, Liner (8) |
|
- | |||||
| 21 | WP488163 | Screw, 8 X 13/16 (Replaces: 488208) |
|
$ 7.92 | |||||
| 22 | 836475 | Gasket, Motor Cover |
|
- | |||||
| 23 | 836474 | Cover, Motor |
|
- | |||||
| 24 | 482731 | Motor, Fan (Replaces: 548697) |
|
Immediately | $ 92.36 | ||||
| 25 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 26 | WP1100938 | Blade, Fan (Replaces: 548041) |
|
$ 92.26 | |||||
| 27 | 935068 | Gasket, Sealing |
|
- | |||||
| 28 | 935067 | Scroll, Fan |
|
- | |||||
| 29 | 983991 | Cover, Evaporator |
|
- | |||||
| 30 | 981749 | Gasket, Cover (2) (15-3/4``) |
|
- | |||||
| 31 | 00487887 | Screw, 3-48 X 1/4 (2) (Replaces: 487887) |
|
$ 244.80 | |||||
| 32 | 848445 | Grommet (4) |
|
- | |||||
| 33 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 488992) |
|
Immediately | $ 8.28 | ||||
| 34 | 659598 | Hole Plug (2) |
|
- | |||||
| 35 | WP98165 | Screw, 8 X 5/8 (2) (Replaces: 488401) |
|
$ 8.57 | |||||
| 36 | 850738 | Cap, Receptacle |
|
- | |||||
| 37 | 481658 | Wiring, Ice Maker |
|
- | |||||
| 38 | 943920 | Grommet Drain Fitting |
|
- |
