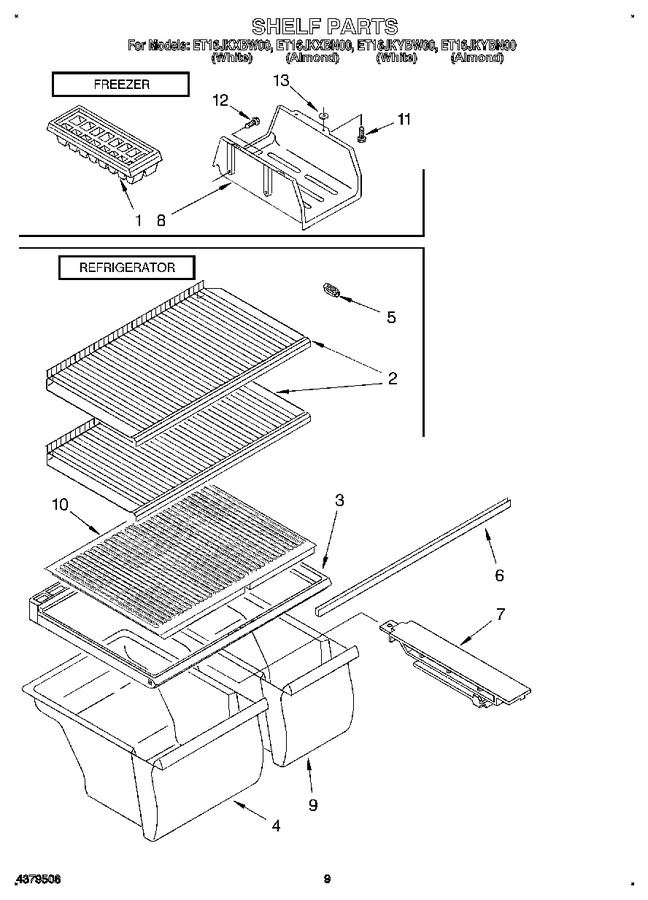

1	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 43.06
2	2166147		Shelf (2)		Appelez-nous	-
3	WP2314548		Cover, Crisper   (Replaces: 2163833)				$ 233.85
4	W10854037		Pan, Crisper   (Replaces: 2166256)			Immediately	$ 161.27
5	2166255		Plug, Shelf Cup		Appelez-nous	-
6	WP2172748		Support, Crisper Cover   (Replaces: 2172541)				$ 91.87
7	WP2163835		Track, Crisper   (Replaces: 2163835)			Immediately	$ 32.83
8	483210		Shelf, Ice Tray		Appelez-nous	-
9	W10856580		Pan, Crisper   (Replaces: 2166257)			Immediately	$ 159.33
10	2166149		Insert				$ 77.25
11	WP489478		Screw (2)   (Replaces: 489242)				$ 7.36
12	W11544659		Screw (2)   (Replaces: 489415)				$ 12.92
13	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 218.83
13	833938		Kit, Terminal Connector				$ 7.62
13	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
13	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
13	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
13	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 48.61
13	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
13	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
13	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 11.50
13	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
13	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 218.83
13	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
13	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
13	2172516		Door Reversal Instructions		Appelez-nous	-
13	350942		Primer White (13 Oz. Spray Can)				$ 84.73
13	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 53.90
13	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
13	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
13	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
13	212643		Sealer, Gum (4 Feet)			Immediately	$ 86.78
13	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
13	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 218.83
13	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
13	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
13	606755		Bag, Insulation (36-5/8`` X 46``)				$ 74.13
	1117510		Torx Key				$ 5.84
	LIT677971		Do-it-yourself Manual, Icemaker		Appelez-nous	-
	LIT677969		Do-it-yourself Manual Ref./fzr.		Appelez-nous	-
	LIT2166259		Use & Care Guide		Appelez-nous	-
	LIT2170974		Energy Label		Appelez-nous	-
	LIT2166248		Service & Wiring Sheet		Appelez-nous	-
