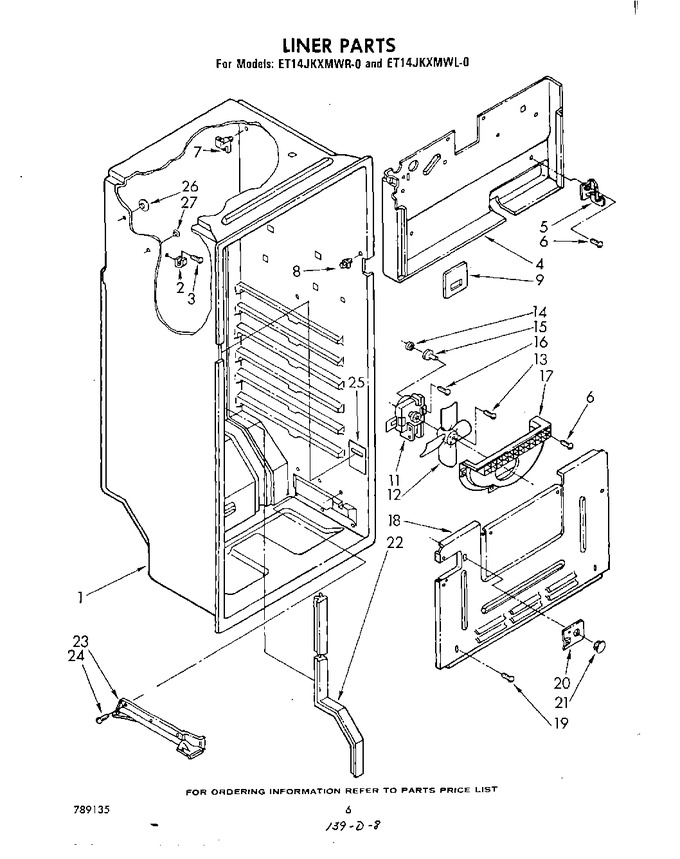

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	939050		Bracket, Wire Receptacle		Appelez-nous	-
3	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
4	935699		Heat Shield		Appelez-nous	-
5	935700		Evaporator, Support		Appelez-nous	-
6	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
7	939203		Support, Stud		Appelez-nous	-
8	939065		Stud Hook				$ 7.25
9	935696		Cover, Air Duct		Appelez-nous	-
11	482731		Motor, Fan   (Replaces: 938287)			Immediately	$ 92.36
12	WP1100938		Blade, Fan   (Replaces: 548041)				$ 92.26
13	00487887		Screw, 3-48 X 1/4   (Replaces: 487887)				$ 244.80
14	531933		Grommet				$ 5.70
15	935701		Spacer, Fan Motor		Appelez-nous	-
16	489042		Screw, 8 X 1-1/4		Appelez-nous	-
17	836179		Scroll Fan		Appelez-nous	-
18	946212		Evaporator Cover		Appelez-nous	-
19	WP488729		Screw, 8-15 X 1/2   (Replaces: 488992)			Immediately	$ 8.28
20	WP2217784		Hole Cover   (Replaces: 944759)				$ 47.22
21	939283		Hole Plug		Appelez-nous	-
22	935704		Cover Tube, Rear		Appelez-nous	-
23	941776		Cover Tube, Bottom		Appelez-nous	-
24	W11693756		Screw, 8-15 X 5/8   (Replaces: 487042)			Immediately	$ 14.76
25	946207		Shield, Wiring		Appelez-nous	-
26	WP941839		Hole, Plug   (Replaces: 941839)				$ 8.03
27	789135		List, Parts		Appelez-nous	-
27	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
27	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
27	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
27	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
27	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
27	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
27	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
27	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
27	944795		Hole Plug		Appelez-nous	-
27	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
27	833938		Kit, Terminal Connector				$ 8.47
27	946685		Service & Wiring Sheet		Appelez-nous	-
27	1100049		Consumer Buy Guide		Appelez-nous	-
27	1100050		Energy Guide Label		Appelez-nous	-
27	942279		Guide, Use & Care		Appelez-nous	-
27	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
27	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
27	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
27	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
27	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
27	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
27	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
27	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
27	261889		Enamel, New Avocado (1 Qt. Uncut)		Appelez-nous	-
27	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
27	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
27	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
27	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
27	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
27	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
27	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
27	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
27	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	261886		Xenamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	261888		Xenamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
