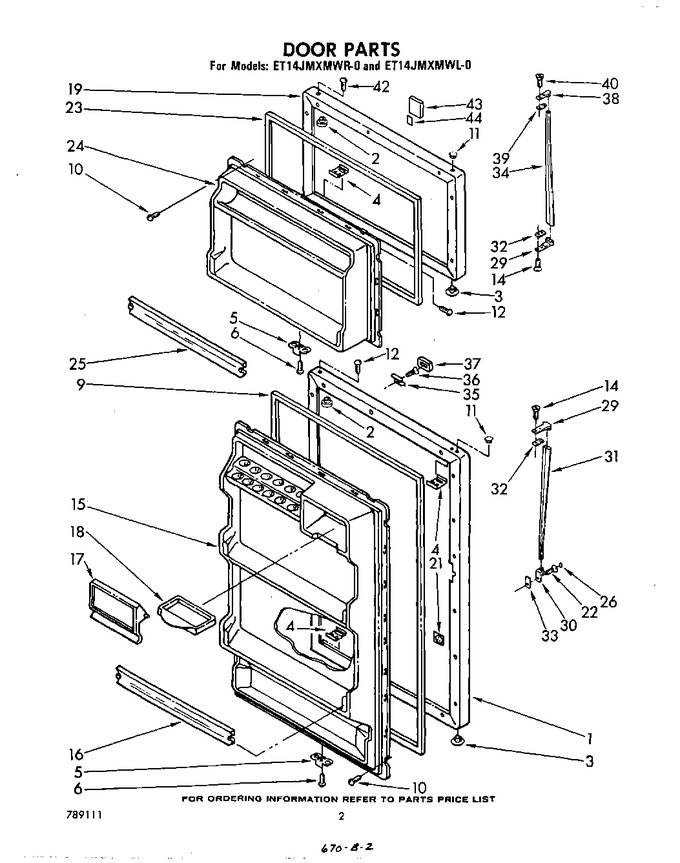

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 944096 | Refrigerator Door Panel (coffee) |
|
- | |||||
| 1 | 944098 | Refrigerator Door Panel (new Avocado) |
|
- | |||||
| 1 | 944095 | Refrigerator Door Panel (white) |
|
- | |||||
| 1 | 944097 | Refrigerator Door Panel (golden Harvest) |
|
- | |||||
| 1 | 1100226 | Exterior, Door Panel (platinum) |
|
- | |||||
| 1 | 1100225 | Exterior, Door Panel (toast) |
|
- | |||||
| 1 | 944099 | Refrigerator Door Panel (almond) |
|
- | |||||
| 2 | 509929 | Cap, Hinge |
|
- | |||||
| 3 | 534927 | Hole Plug (2) |
|
- | |||||
| 4 | 943185 | Tap Plate |
|
- | |||||
| 5 | 944036 | Bracket, Door Stop |
|
- | |||||
| 6 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 6 | 488930 | Screw (repair) |
|
- | |||||
| 9 | 2188445A | Door Gasket, Magnetic (Replaces: 942287) |
|
$ 197.35 | |||||
| 9 | 2188445A | Door Gasket, Magnetic (for Platinum Model Only) (Replaces: 935761) |
|
$ 197.35 | |||||
| 10 | 488852 | Screw (repair) |
|
- | |||||
| 10 | WP489069 | Screw, 7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 11 | 989894 | Hole Plug (new Avocado) |
|
- | |||||
| 11 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 11 | 1100189 | Hole Plug (platinum) |
|
- | |||||
| 11 | 989196 | Hole Plug (almond) |
|
- | |||||
| 11 | 989892 | Hole Plug (coffee) |
|
- | |||||
| 11 | WP2212648 | Hole Plug (golden Harvest) (Replaces: 989893) |
|
Immediately | $ 8.19 | ||||
| 11 | 1100188 | Hole Plug (toast) |
|
- | |||||
| 12 | 488930 | Screw (repair) |
|
- | |||||
| 12 | WP8281206 | Screw, 8-15 X 1/2 (3) (Replaces: 489028) |
|
$ 8.37 | |||||
| 14 | WP488920 | Screw, 8 X 5/8 (Replaces: 488920) |
|
$ 7.98 | |||||
| 14 | 488923 | Screw (repair) |
|
- | |||||
| 15 | 946243 | Interior Door Panel (refrigerator) |
|
- | |||||
| 15 | 1100244 | Interior Door Panel (refrigerator) (for Platinum Model Only) |
|
- | |||||
| 16 | 1100047 | Trim, Door Shelf |
|
- | |||||
| 17 | 946998 | Compartment Door, Butter |
|
- | |||||
| 18 | 520747 | Tray, Butter |
|
- | |||||
| 19 | 1100228 | Freezer Door Panel (platinum) |
|
- | |||||
| 19 | 944101 | Freezer Door Panel (white) |
|
- | |||||
| 19 | 944102 | Freezer Door Panel (coffee) |
|
- | |||||
| 19 | 944104 | Freezer Door Panel (new Avocado) |
|
- | |||||
| 19 | 944103 | Freezer Door Panel (golden Harvest) |
|
- | |||||
| 19 | 944105 | Freezer Door Panel (almond) |
|
- | |||||
| 19 | 1100227 | Freezer Door Panel (toast) |
|
- | |||||
| 21 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.88 | |||||
| 22 | WP488729 | Screw, 8 X 1/2 (Replaces: 487875) |
|
Immediately | $ 8.28 | ||||
| 23 | WP2188456A | Door Gasket, Magnetic (Replaces: 942289) |
|
$ 258.49 | |||||
| 23 | WP2188456A | Door Gasket, Magnetic (for Platinum Model Only) (Replaces: 937001) |
|
$ 258.49 | |||||
| 24 | 1100247 | Interior Door Panel (freezer) (for Platinum Model Only) |
|
- | |||||
| 24 | 946244 | Interior Door Panel (freezer) |
|
- | |||||
| 25 | 1100117 | Trim, Door Shelf |
|
- | |||||
| 26 | WP1101634 | Screw Cover Handle (Replaces: 1100011) |
|
$ 9.68 | |||||
| 29 | 819342 | Handle, End (Replaces: 1100001) |
|
Immediately | $ 51.31 | ||||
| 30 | 819342 | Handle, End (Replaces: 1100002) |
|
Immediately | $ 51.31 | ||||
| 31 | 982946 | Handle, Center |
|
- | |||||
| 32 | 943188 | Spacer, Top |
|
$ 7.80 | |||||
| 33 | 992872 | Shim, Bottom |
|
- | |||||
| 34 | 982978 | Handle, Center |
|
- | |||||
| 35 | 843213 | Clip, Medallion |
|
- | |||||
| 36 | WP488729 | Screw, 8 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 37 | 1100195 | Medallion (platinum) |
|
- | |||||
| 37 | 848382 | Medallion (white) |
|
- | |||||
| 37 | 989901 | Medallion (coffee) |
|
- | |||||
| 37 | 989902 | Medallion (new Avocado) |
|
- | |||||
| 37 | 989903 | Medallion (golden Harvest) |
|
- | |||||
| 37 | 989904 | Medallion (almond) |
|
- | |||||
| 37 | 1100194 | Medallion (toast) |
|
- | |||||
| 38 | 819342 | Handle, End Top (Replaces: 1100005) |
|
Immediately | $ 51.31 | ||||
| 39 | 943187 | Shim, Handle |
|
$ 25.14 | |||||
| 40 | WP488920 | Screw, 6-32 X 5/8 (Replaces: 488926) |
|
$ 7.98 | |||||
| 40 | 488923 | Screw (repair) |
|
- | |||||
| 42 | 489112 | Screw, 6-32 X 1/2 |
|
- | |||||
| 43 | 945119 | Nameplate |
|
- | |||||
| 44 | 991259 | Tape |
|
- |
