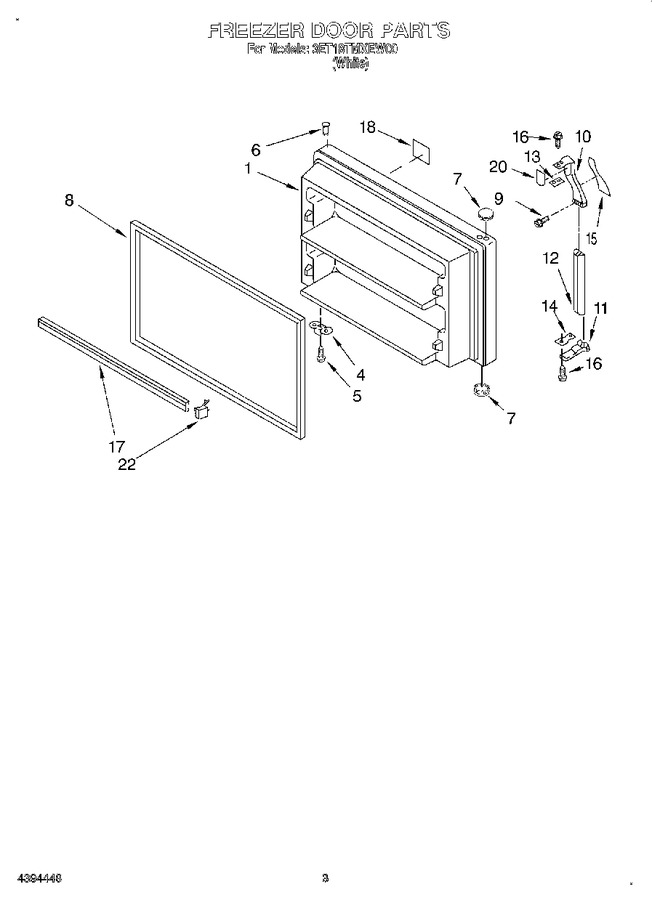

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2182487		Door, Freezer (includes No.6 & No.8)		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP2183003		Thimble   (Replaces: 2183003)				$ 8.14
7	WP2212648		Hole Plug   (Replaces: 844478)			Immediately	$ 8.19
8	2159327		Door Gasket, Magnetic			Immediately	$ 164.58
9	489022		Screw		Appelez-nous	-
10	944163		Handle End, Top				$ 53.54
11	944157		Handle End		Appelez-nous	-
12	2173622		Handle, Center		Appelez-nous	-
13	943187		Shim, Handle				$ 25.14
14	943188		Spacer, Handle Door Panel				$ 7.80
15	1108828		Insert		Appelez-nous	-
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	2171037		Trim, Door Shelf (2)		Appelez-nous	-
18	2165148		Nameplate		Appelez-nous	-
20	935074		Shim		Appelez-nous	-
22	WP2195916K		Endcap, Trim (4)   (Replaces: 2156002)			Immediately	$ 13.18
