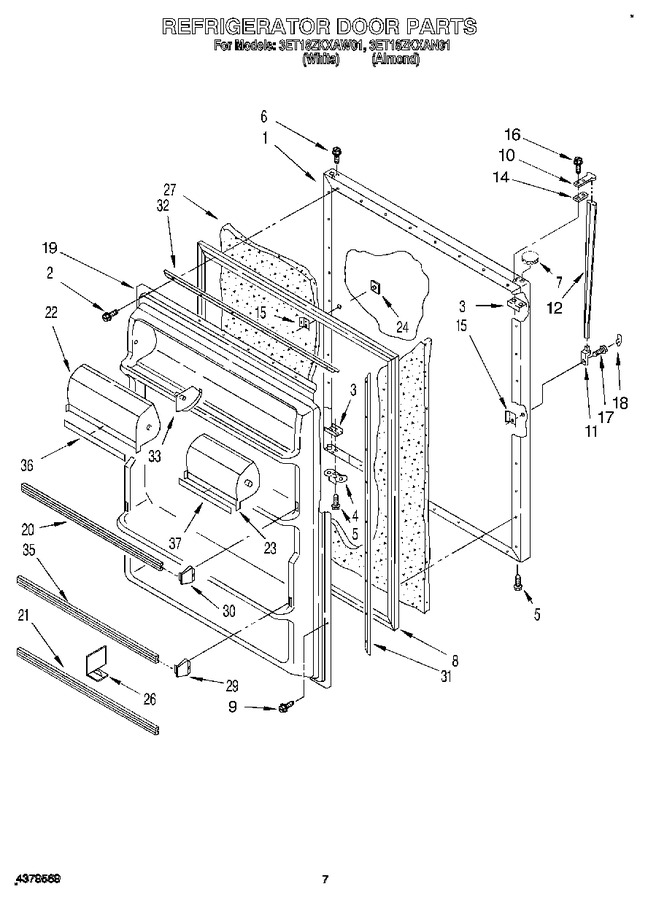

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1116575		Panel, Refrigerator Door (also Order Item 27) (white)		Appelez-nous	-
1	1116578		Panel, Refrigerator Door (also Order Item 27) (almond)		Appelez-nous	-
2	WP488729		Screw ((8))   (Replaces: 489287)			Immediately	$ 8.28
3	943185		Plate, Tap (4)		Appelez-nous	-
4	1115910		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
8	1125889		Door Gasket, Magnetic		Appelez-nous	-
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
10	2148503		Handle End		Appelez-nous	-
11	WP2183139		Handle End Cap   (Replaces: 1101632)			Immediately	$ 51.98
12	WP2162555		Handle, Center (white)   (Replaces: 2148035)			Immediately	$ 157.62
12	2148036		Handle, Center (almond)		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
15	WP939101		Screw, Anchor   (Replaces: 2151669)				$ 7.88
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
18	WP1101634		Screw Cover   (Replaces: 981182)				$ 9.68
19	1118123		Interior Door Panel		Appelez-nous	-
20	2157810		Trim, Door Shelf		Appelez-nous	-
21	2157812		Trim, Door Shelf		Appelez-nous	-
22	2160252		Compartment Door (l.s.)		Appelez-nous	-
23	2160253		Compartment, Door (r.s.)		Appelez-nous	-
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 7.77
24	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
26	2160050		Divider, Door Shelf		Appelez-nous	-
27	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
29	4318297		Endcap, Trim (2)   (Replaces: 1106861)				$ 24.43
30	4386917		End Cap, Trim (2)   (Replaces: 1105685)			Immediately	$ 18.90
31	1115136		Retainer, Gasket Side (2)		Appelez-nous	-
32	1115137		Retainer, Gasket Top & Bottom (2)		Appelez-nous	-
33	WP1118001		Hinge Pin, Center   (Replaces: 1118001)				$ 8.06
35	2157811		Trim, Door Shelf		Appelez-nous	-
36	2157839		Trim, Compartment Door (l.s.)		Appelez-nous	-
37	2157836		Trim, Compartment Door (r.s.)		Appelez-nous	-
