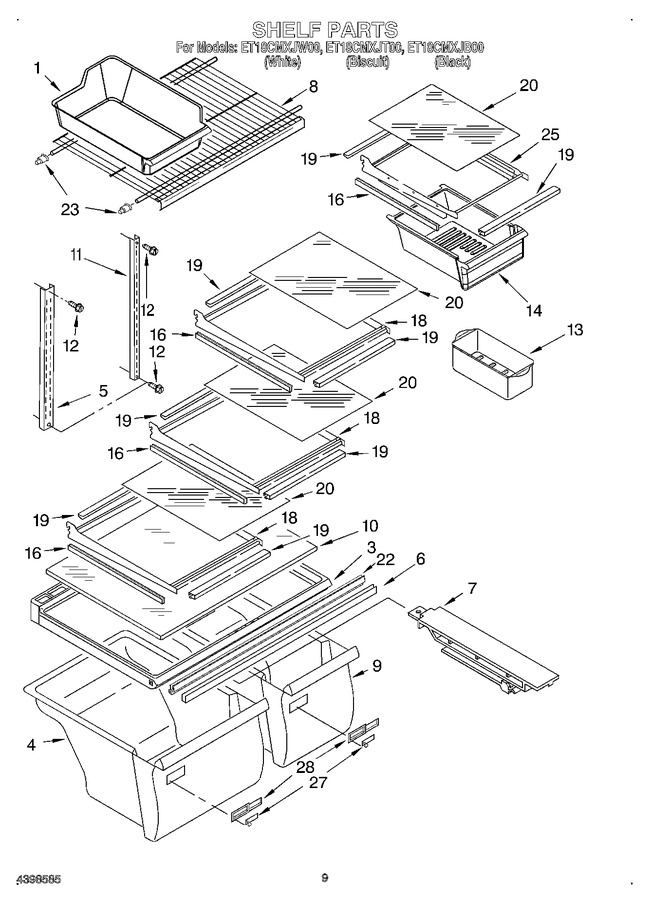

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2254352A		Ice Bucket   (Replaces: 2176219)				$ 52.78
3	WP2314548		Cover, Crisper   (Replaces: 2200768)				$ 233.85
4	W10854037		Crisper Pan Includes 27, 28   (Replaces: 2200658)			Immediately	$ 161.27
5	2202821		Shelf, Ladder		Appelez-nous	-
6	WP2172748		Support, Crisper Cover   (Replaces: 2172541)				$ 91.87
7	WP2163835		Track, Crisper   (Replaces: 2163835)			Immediately	$ 32.83
8	WP2176275		Shelf   (Replaces: 2176275)				$ 111.06
9	W10856580		Crisper Pan Includes 27, 28   (Replaces: 2200657)			Immediately	$ 159.33
10	WP2169921		Glass, Crisper Cover   (Replaces: 2169921)				$ 233.04
11	2202822		Shelf, Ladder (2)		Appelez-nous	-
12	WP489478		Screw   (Replaces: 489478)				$ 7.36
13	W10136387A		Egg Bin   (Replaces: 2182730)				$ 17.59
14	WP2218127K		Meat Pan   (Replaces: 2201031K)				$ 132.12
16	2201089		Trim, Shelf Side		Appelez-nous	-
18	2201101E		Shelf, Catnilever		Appelez-nous	-
19	2201097		Trim, Shelf Front/rear		Appelez-nous	-
20	2200985		Glass, Half Shelf		Appelez-nous	-
22	2172683		Gasket, Crisper Cover		Appelez-nous	-
23	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 13.23
25	2201105		Pan Shelf, Cantilever				$ 78.45
27	WP2176222		Slide, Humidity Control   (Replaces: 2176222)				$ 27.35
28	W11819839		Body, Humidity Control   (Replaces: 2176223)				$ 14.23
