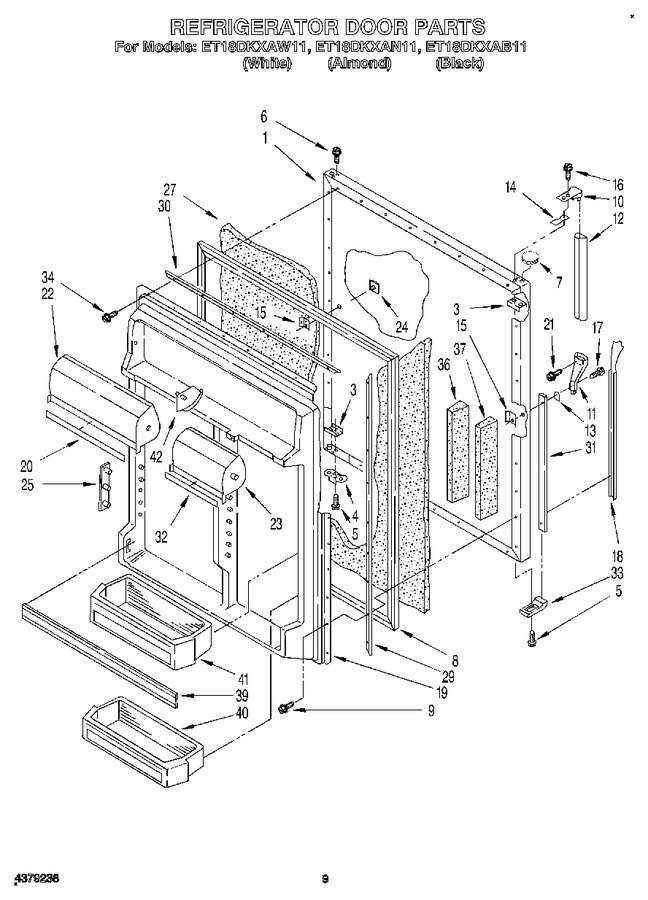

SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf, Literature


05 - Unit


06 - Refrigerator Door


07 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1116575		Panel, Refrigerator Door (also Order Item 27) (white)		Appelez-nous	-
1	2162878		Panel, Refrigerator Door (also Order Item 27) (black)		Appelez-nous	-
1	1116578		Panel, Refrigerator Door (also Order Item 27) (almond)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	1115910		Bracket Door Stop (black)		Appelez-nous	-
4	944036		Bracket, Door Stop (chrome)		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
7	WP2212651		Hole Plug (black)   (Replaces: 2160808)				$ 24.21
8	1116734		Door Gasket, Magnetic (almond Model)		Appelez-nous	-
8	1125889		Door Gasket, Magnetic (black Model)		Appelez-nous	-
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
10	944157		Handle End		Appelez-nous	-
11	1109189		Handle End, Side		Appelez-nous	-
12	2150150		Handle, Center (white)		Appelez-nous	-
12	1120781		Handle, Center (black)		Appelez-nous	-
12	943068		Handle Center (almond)		Appelez-nous	-
13	935075		Shim, Handle End (side)		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
15	WP939101		Screw, Anchor   (Replaces: 2151669)				$ 7.88
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
18	1118082		Insert, Handle (black Model)		Appelez-nous	-
18	2150155		Insert, Handle (white Model)		Appelez-nous	-
18	2150156		Insert, Handle (almond)		Appelez-nous	-
19	2157384		Interior Door Panel		Appelez-nous	-
20	1121186		Trim, Door Compartment		Appelez-nous	-
21	489022		Screw, 6-20 X 3/8		Appelez-nous	-
22	2148747		Compartment Door		Appelez-nous	-
23	2148745		Compartment Door		Appelez-nous	-
24	WP2189009		Hole Plug, Handle (black)   (Replaces: 2160809)				$ 7.61
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 7.77
24	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
25	1116986		Pin Plate				$ 12.10
27	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
29	1115136		Retainer, Gasket Side (2)		Appelez-nous	-
30	1115137		Retainer, Gasket Top & Bottom (2)		Appelez-nous	-
31	1118080		Retainer, Insert		Appelez-nous	-
32	2148588		Trim, Compartment Door		Appelez-nous	-
33	1105804		Endcap, Insert Retainer		Appelez-nous	-
34	WP488729		Corner Screw   (Replaces: 489287)			Immediately	$ 8.28
36	2157385		Door Dike, Middle		Appelez-nous	-
37	1118007		Door Dike, Side (2)		Appelez-nous	-
39	2148591		Trim, Door Shelf		Appelez-nous	-
40	2148592		Shelf Bin (2)		Appelez-nous	-
41	2148593		Shelf Bin, Deep (2)		Appelez-nous	-
42	WP1118001		Hinge Pin, Center   (Replaces: 1118001)				$ 8.06

    View Diagram in Separate Window       Print Part List
