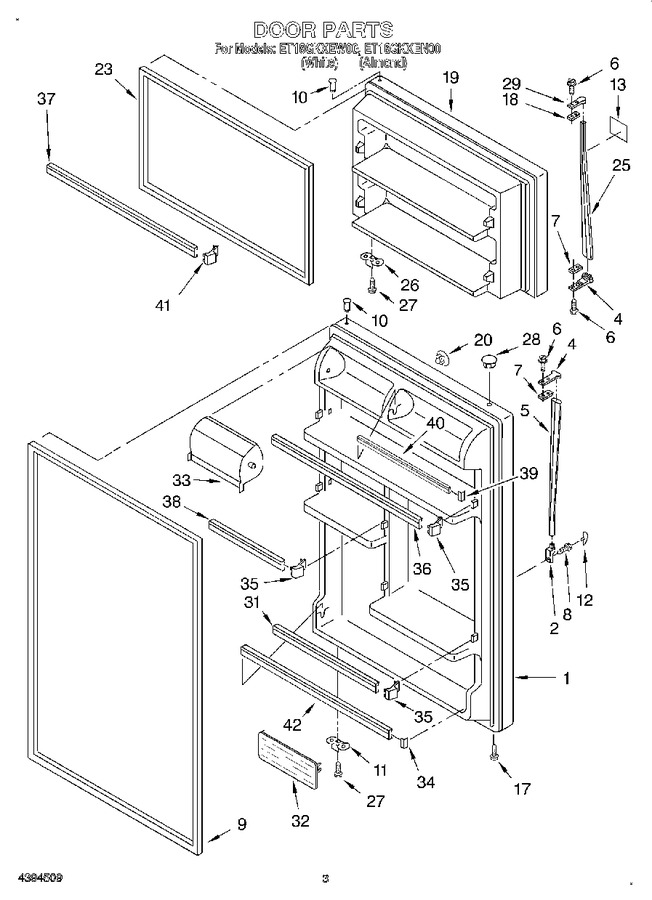

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2171030 | Refrigerator Door (includes No.9 & No.10) (almond) |
|
- | |||||
| 1 | 2171029 | Refrigerator Door (includes No.9 & No.10) (white) |
|
- | |||||
| 2 | 819342 | End Cap (almond) (Replaces: 2183142) |
|
Immediately | $ 51.31 | ||||
| 2 | 819342 | End Cap (white) (Replaces: 2183141) |
|
Immediately | $ 51.31 | ||||
| 4 | 819342 | End Cap, Handle (2) (almond) (Replaces: 9791772) |
|
Immediately | $ 51.31 | ||||
| 4 | 819342 | End Cap, Handle (2) (white) (Replaces: 9791771) |
|
Immediately | $ 51.31 | ||||
| 5 | WP2162555 | Handle, Center (white) (Replaces: 2148035) |
|
Immediately | $ 157.62 | ||||
| 5 | 2148036 | Handle, Center (almond) |
|
- | |||||
| 6 | WP488920 | Screw (Replaces: 489006) |
|
$ 7.98 | |||||
| 7 | 943188 | Spacer |
|
$ 7.80 | |||||
| 8 | WP488729 | Screw (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 9 | 2159057 | Door Gasket, Magnetic (mist Beige) |
|
Immediately | $ 187.51 | ||||
| 10 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 8.14 | |||||
| 11 | 944035 | Bracket, Door Stop |
|
- | |||||
| 12 | 9791770 | Cover, Screw (almond) |
|
- | |||||
| 12 | 9791769 | Cover, Screw (white) |
|
$ 5.70 | |||||
| 13 | 2175383 | Nameplate (white Model) |
|
- | |||||
| 13 | 2175384 | Nameplate (almond Model) |
|
- | |||||
| 17 | WP8281206 | Screw (Replaces: 489028) |
|
$ 8.37 | |||||
| 18 | 943187 | Shim |
|
$ 25.14 | |||||
| 19 | 2182487 | Freezer Door (includes No.10 & No.23) (white) |
|
- | |||||
| 19 | 2182491 | Freezer Door (includes No.10 & No.23) (almond) |
|
- | |||||
| 20 | 1122654 | Hole Plug (almond) |
|
- | |||||
| 20 | WP2189000 | Hole Plug (white) (Replaces: 1122653) |
|
Immediately | $ 7.77 | ||||
| 23 | 2159327 | Door Gasket, Magnetic (mist Beige) |
|
Immediately | $ 164.58 | ||||
| 25 | 2171044 | Handle, F.c. (almond) |
|
- | |||||
| 25 | WP2162555 | Handle, F.c. (white) (Replaces: 2171043) |
|
Immediately | $ 157.62 | ||||
| 26 | W11745278 | Bracket, Door Stop (Replaces: 2183805) |
|
Immediately | $ 13.37 | ||||
| 27 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 28 | 989196 | Hole Plug (almond) |
|
- | |||||
| 28 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 29 | 819342 | Handle End (white) (Replaces: 9791776) |
|
Immediately | $ 51.31 | ||||
| 29 | 819342 | Handle End (almond) (Replaces: 9791777) |
|
Immediately | $ 51.31 | ||||
| 31 | 2177291 | Trim Door |
|
- | |||||
| 32 | 2159303 | Shelf, Flip-up |
|
- | |||||
| 33 | WP2218113 | Door, Compartment (Replaces: 2171036) |
|
Immediately | $ 50.33 | ||||
| 34 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 12.79 | ||||
| 35 | WP2195915 | Plug-trim (Replaces: 2156000) |
|
$ 13.72 | |||||
| 36 | 2171038 | Trim, Door Shelf |
|
- | |||||
| 37 | 2171037 | Trim-door (2) |
|
- | |||||
| 38 | 2171039 | Trim, Door |
|
- | |||||
| 39 | WP2156007 | Plug, Trim (Replaces: 2156007) |
|
Immediately | $ 8.03 | ||||
| 40 | WP2201061 | Trim, Door (Replaces: 2171040) |
|
$ 124.32 | |||||
| 41 | WP2195916K | Endcap (4) (Replaces: 2156002) |
|
Immediately | $ 13.18 | ||||
| 42 | 2184570 | Trim, Door |
|
- | |||||
| 100 | 2182571 | Interior Kit, (includes 31-42) |
|
- |
