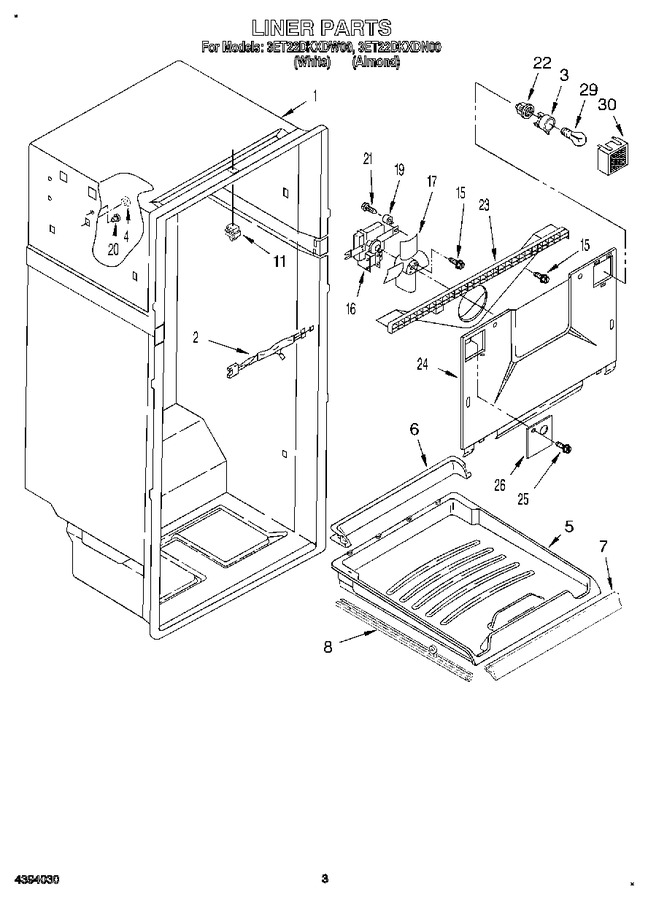

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	1127626		Wiring, Fan Motor		Appelez-nous	-
3	2167012		Shroud, Light		Appelez-nous	-
4	WP941839		Hole Plug (3)   (Replaces: 941839)				$ 8.03
5	2174376		Floor, Pull-out Freezer		Appelez-nous	-
6	2174378		Fence, Freezer Floor		Appelez-nous	-
7	2174323		Trim, Freezer Floor		Appelez-nous	-
8	2174370		Track, Freezer Floor (2)		Appelez-nous	-
11	W11384469		Rocker Arm Switch   (Replaces: 1118894)			Immediately	$ 39.09
15	WP489478		Screw   (Replaces: 489242)				$ 8.18
16	2169115		Motor, Fan		Appelez-nous	-
17	WP1100938		Blade, Fan   (Replaces: 2162448)				$ 92.26
19	531933		Grommet (2)				$ 5.70
20	1110779		Grommet (4)		Appelez-nous	-
21	489168		Screw		Appelez-nous	-
22	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 106.16
23	2160644		Scroll, Fan		Appelez-nous	-
24	2174325		Evaporator Cover		Appelez-nous	-
25	WP488729		Screw   (Replaces: 489451)			Immediately	$ 8.28
26	WP2217784		Hole Cover, Evaporator   (Replaces: 2183038)				$ 47.22
29	WP67002552		Light Bulb   (Replaces: 2158865)			Immediately	$ 12.34
30	2174443		Light Lens		Appelez-nous	-
