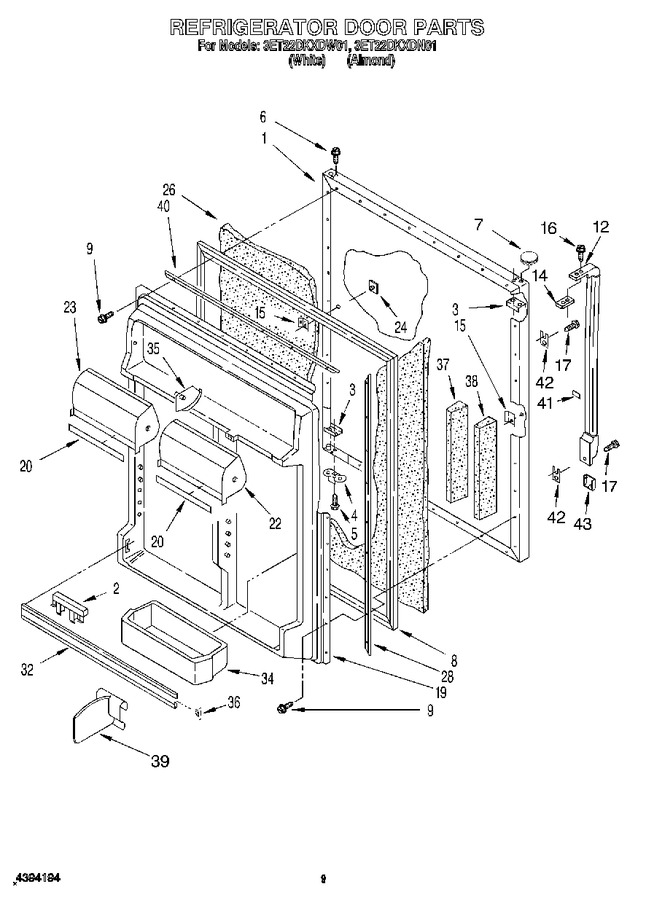

01 - Cabinet
02 - Liner
03 - Compartment Separator
04 - Shelf
05 - Unit
06 - Refrigerator Door
07 - Freezer Door, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1122549 | Panel, Refrigerator Door (also Order Item 26) (white) |
|
- | |||||
| 1 | 1122658 | Panel, Refrigerator Door (also Order Item 26) (almond) |
|
- | |||||
| 2 | 2173643 | Retainer, Bottle |
|
- | |||||
| 3 | 943185 | Plate, Tap (4) |
|
- | |||||
| 4 | 944036 | Bracket, Door Stop |
|
- | |||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 6 | WP8281206 | Screw, 8-15 X 1/2 (Replaces: 489028) |
|
$ 8.37 | |||||
| 7 | 989196 | Hole Plug (almond) |
|
- | |||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 8 | 2188450A | Door Gasket, Magnetic (Replaces: 1122828) |
|
$ 284.09 | |||||
| 9 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 12 | 2174004 | Handle, Door (almond) |
|
- | |||||
| 12 | 2174003 | Handle, Door (white) |
|
- | |||||
| 14 | 2151813 | Shim, Handle |
|
- | |||||
| 15 | WP939101 | Screw, Anchor (Replaces: 2151669) |
|
$ 7.88 | |||||
| 16 | WP488920 | Screw, 8 X 5/8 (Replaces: 489006) |
|
$ 7.98 | |||||
| 17 | WP488729 | Screw, 8 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 19 | 2177226 | Interior Door Panel |
|
- | |||||
| 20 | 2164839 | Trim, Door Compartment |
|
- | |||||
| 22 | 2163942 | Compartment Door, Right Side |
|
- | |||||
| 23 | 2163945 | Compartment Door, Left Side |
|
- | |||||
| 24 | WP2189000 | Hole Plug, Handle (white) (Replaces: 1122653) |
|
Immediately | $ 7.77 | ||||
| 24 | 1122654 | Hole Plug, Handle (almond) |
|
- | |||||
| 26 | 876029 | Foam Insulation (required When Replacing Exterior Door Panel) |
|
- | |||||
| 28 | 1122551 | Retainer, Gasket |
|
- | |||||
| 32 | 2177228 | Trim, Door Shelf |
|
- | |||||
| 34 | 2179604 | Bin, Door Shelf (4) |
|
- | |||||
| 35 | WP1118001 | Hinge Pin, Center (Replaces: 1118001) |
|
$ 8.06 | |||||
| 36 | 2159300 | Plug-trim |
|
$ 4.83 | |||||
| 37 | 2174751 | Door Dike, Center |
|
- | |||||
| 38 | 1122709 | Door Dike, Side (2) |
|
- | |||||
| 39 | 2171284 | Divider, Bin |
|
- | |||||
| 40 | 1122552 | Retainer, Gasket |
|
- | |||||
| 41 | 2179398 | Shim, Handle |
|
- | |||||
| 42 | 2183124 | Shim, Handle |
|
- | |||||
| 43 | 2174007 | Cover, End Cap (almond) |
|
- | |||||
| 43 | 2174006 | Cover, Endcap (white) |
|
- |
