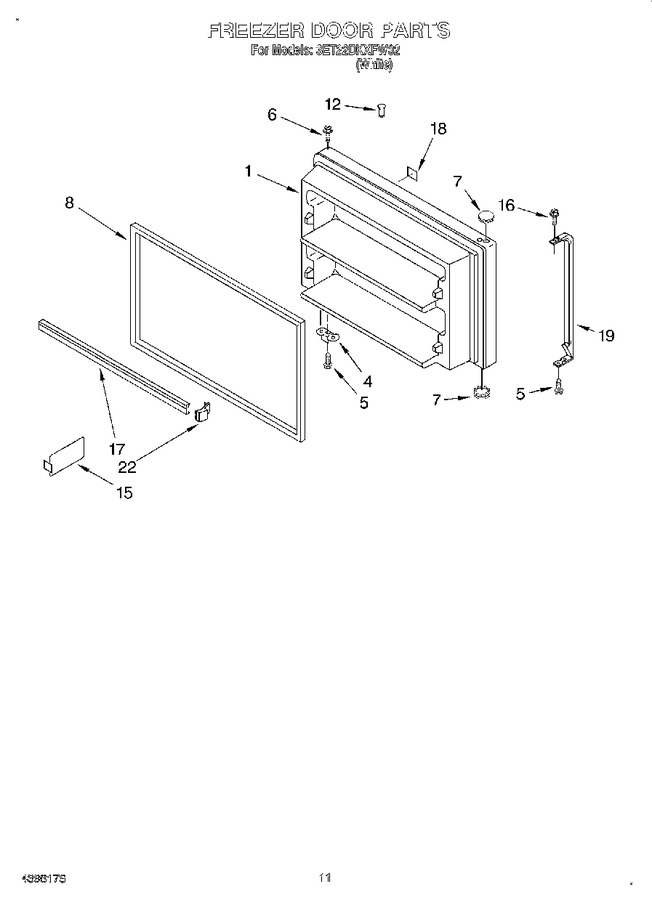

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2183862 | Freezer Door (includes No.8& No.12) |
|
- | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 5 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 6 | WP8281206 | Screw, 8-15 X 1/2 (Replaces: 489028) |
|
$ 8.37 | |||||
| 7 | WP2212648 | Hole Plug (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 8 | 2159060 | Door Gasket, Magnetic (mist Beige) |
|
$ 336.01 | |||||
| 12 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 8.14 | |||||
| 15 | 1123293 | Divider, Door Shelf |
|
- | |||||
| 16 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 17 | 2195947 | Trim, Door Shelf (2) |
|
$ 50.94 | |||||
| 18 | 2175380 | Nameplate |
|
- | |||||
| 19 | 4388947 | Handle (Replaces: 2193350W) |
|
$ 204.47 | |||||
| 22 | WP2195916K | Endcap, Trim (4) (Replaces: 2195916) |
|
Immediately | $ 13.18 | ||||
| 100 | 2199049 | Featurepak (includes 12,15, 22) Also See Ref. Dr. & Shelf Pgs. |
|
- |
