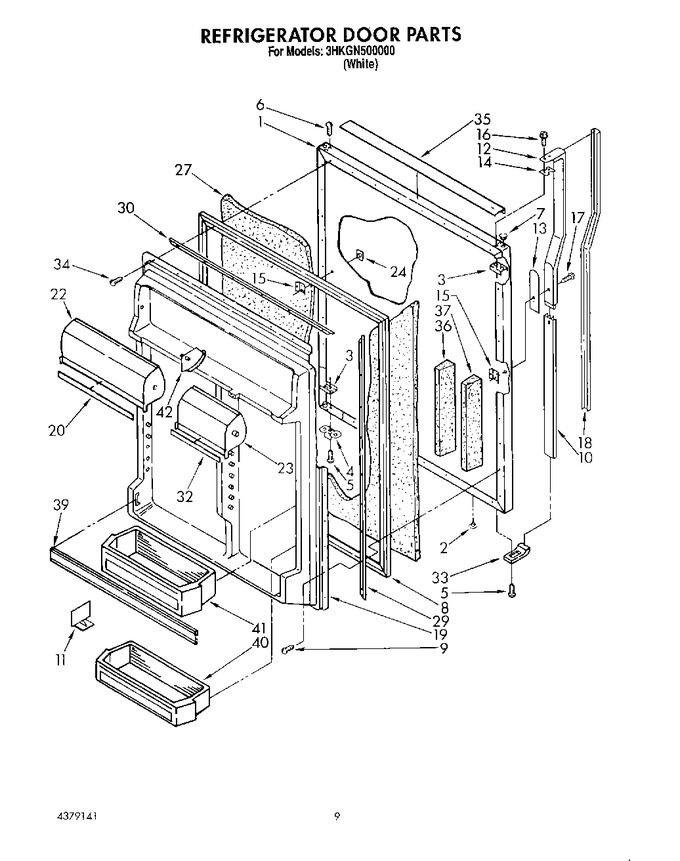

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1116575		Panel, Refrigerator Door (also Order Item 27) (white)		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944036		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
8	1116734		Door Gasket, Magnetic		Appelez-nous	-
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
10	1125879		Retainer, Insert		Appelez-nous	-
11	1123293		Divider, Shelf		Appelez-nous	-
12	2161508		Handle				$ 111.30
13	1107650		Shim, Handle End (side)		Appelez-nous	-
14	2151813		Shim, Handle		Appelez-nous	-
15	WP939101		Screw Anchor (2)   (Replaces: 2151669)				$ 7.88
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
18	2161511		Insert, Handle		Appelez-nous	-
19	2157384		Interior Door Panel		Appelez-nous	-
20	1121186		Trim, Door Compartment		Appelez-nous	-
22	1126234		Compartment Door		Appelez-nous	-
23	1126233		Compartment Door		Appelez-nous	-
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 7.77
27	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
29	1115136		Retainer, Gasket Side (2)		Appelez-nous	-
30	1115137		Retainer, Gasket Top & Bottom		Appelez-nous	-
32	2148588		Trim, Compartment Door		Appelez-nous	-
33	1107236		End Cap, Insert Retainer		Appelez-nous	-
34	WP488729		Corner Screw (8)   (Replaces: 489287)			Immediately	$ 8.28
35	1126013		Trim, Door		Appelez-nous	-
36	2157385		Door Dike, Middle		Appelez-nous	-
37	1118007		Door Dike, Side (2)		Appelez-nous	-
39	1125857		Trim, Door Shelf		Appelez-nous	-
40	1125863		Shelf Bin (2) (narrow)		Appelez-nous	-
41	1125862		Shelf Bin (2) (wide)		Appelez-nous	-
42	WP1118001		Hinge Pin, Center   (Replaces: 1118001)				$ 8.06
