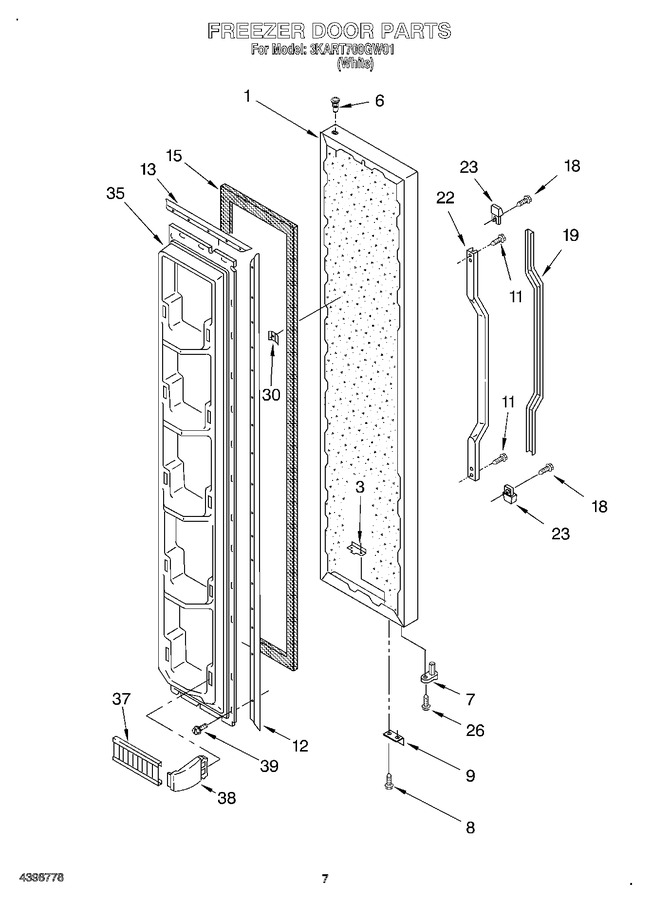

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194613W		Freezer Door Panel		Appelez-nous	-
3	2196135		Tap, Plate				$ 18.96
6	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 8.15
7	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 7.20
8	WP999367		Screw   (Replaces: 489367)				$ 8.56
9	2195950		Bracket, Door Stop				$ 5.84
11	WP489463		Screw   (Replaces: 489463)				$ 8.25
12	1117766		Gasket Retainer, Side (2)				$ 36.55
13	1117767		Gasket Retainer, Top & Bottom		Appelez-nous	-
15	2188405A		Door Gasket, Magnetic   (Replaces: 1129267)				$ 368.63
18	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
19	2187033		Insert, Handle		Appelez-nous	-
22	2187031		Retainer, Insert		Appelez-nous	-
23	2194778W		Endcap		Appelez-nous	-
26	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
30	941242		Screw Anchor		Appelez-nous	-
35	2196141		Interior, Door Panel		Appelez-nous	-
37	2204232		Trim, Door Shelf		Appelez-nous	-
38	WP2196100		Support Trim End   (Replaces: 2196100)			Immediately	$ 9.09
39	WP489069		Screw, (28)   (Replaces: 489101)			Immediately	$ 8.40
