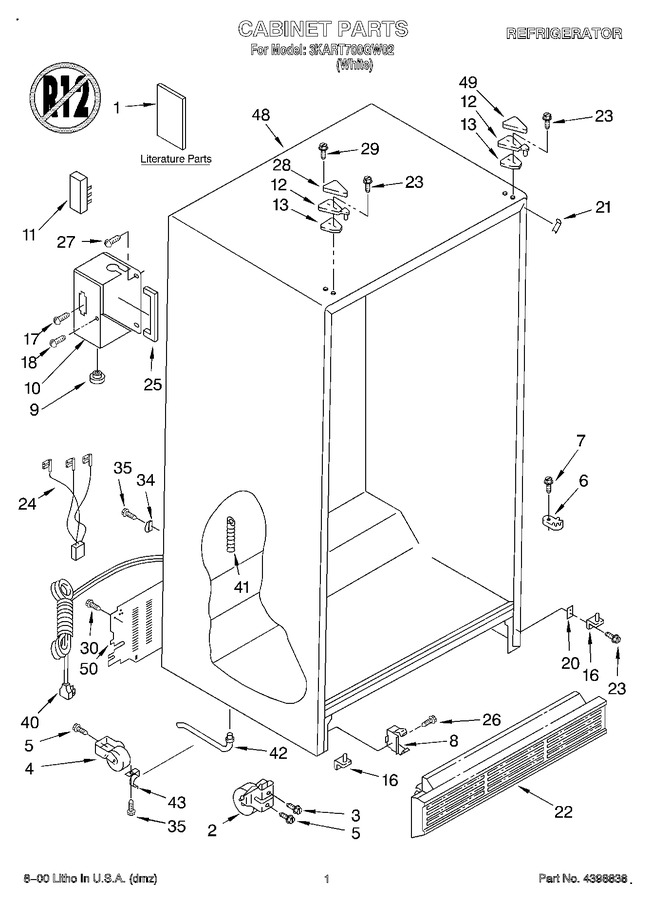

01 - Cabinet, Literature
02 - Refrigerator Liner
03 - Freezer Liner
04 - Air Flow
05 - Freezer Door
06 - Refrigerator Door
07 - Unit
08 - Control, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT2205785 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT2198363 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT2187053 | Literature Parts (energy Label) |
|
- | |||||
| 2 | 2174748 | Front Roller (2) |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 3400517) |
|
$ 14.42 | |||||
| 4 | WPW10250570 | Roller (rear) (2) (Replaces: 2196236) |
|
$ 42.18 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 6 | WPW10329686 | Door Closer, Lower Cam (2) (Replaces: 2155311) |
|
Immediately | $ 5.90 | ||||
| 7 | WP489483 | Screw (Replaces: 489483) |
|
$ 11.41 | |||||
| 8 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 8.11 | ||||
| 9 | 1129449 | Bushing |
|
- | |||||
| 10 | 2188194 | Enclosure, Terminal Block |
|
- | |||||
| 11 | 1129346 | Terminal Block |
|
- | |||||
| 12 | WP2196046 | Hinge, Top (2) (Replaces: 2196046) |
|
$ 104.44 | |||||
| 13 | 2196048 | Shim, Hinge (2) |
|
- | |||||
| 16 | 8201707 | Hinge Bottom (Replaces: 2171851) |
|
$ 97.45 | |||||
| 17 | WPW10272364 | Screw (Replaces: 489211) |
|
Immediately | $ 11.36 | ||||
| 18 | WP489399 | Screw (Replaces: 489399) |
|
$ 7.30 | |||||
| 20 | WP2181911 | Spacer, Hinge (Replaces: 2156056) |
|
$ 34.87 | |||||
| 21 | 2196094 | Filler, Wrapper |
|
- | |||||
| 22 | W11167901 | Grille (Replaces: 2198469W) |
|
$ 116.76 | |||||
| 23 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 24 | 2209657 | Wiring Assembly |
|
- | |||||
| 25 | 2167227 | Gasket |
|
- | |||||
| 26 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 27 | WP489463 | Screw (Replaces: 489463) |
|
$ 8.25 | |||||
| 28 | 1119787 | Hinge Cover |
|
$ 22.50 | |||||
| 29 | 489284 | Screw |
|
- | |||||
| 30 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 34 | 489348 | Clamp |
|
- | |||||
| 35 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 40 | 2264738 | Service Cord (Replaces: 2197909) |
|
- | |||||
| 41 | W11566763 | Fitting, Drain (Replaces: 940139) |
|
Immediately | $ 53.45 | ||||
| 42 | WP1108438 | Tube, Extension (Replaces: 1108438) |
|
Immediately | $ 32.90 | ||||
| 43 | WP1108439 | Clip, Drain Tube (Replaces: 1108439) |
|
$ 11.28 | |||||
| 48 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 49 | 1129262 | Hinge Cover |
|
$ 15.75 | |||||
| 50 | 2204422 | Cover, Unit |
|
- |
